Views: 14 Author: Site Editor Publish Time: 2024-11-11 Origin: Site
In modern office spaces, raised access floors have become increasingly popular, especially as businesses seek flexibility in their office layouts. And better manage the complex network of cables, wires, and air systems. Choosing the right type of raised access floor can make a huge difference in the functionality and comfort of an office space. Let’s explore what makes these floors unique, the different types available, and how to choose the best one for your needs.
An office raised access floor is essentially a type of flooring system built on top of the existing floor, creating a hollow space between the two. This space serves as a hidden pathway for wires, cables, plumbing, and even HVAC systems. Raised access floors allow easy access to these utilities, making it simpler to add, move, or modify systems without disrupting the entire office environment.
A typical raised access floor is composed of several key parts. The primary component is a set of modular floor panels, often made from materials like steel, concrete, or wood composite. These panels rest on a grid of pedestals that support the panels and create the height of the floor system. The pedestals are adjustable to different heights, which allows for various amounts of underfloor space depending on the office’s needs. Some systems even come with modular or snap-in panels for quick access to specific sections.

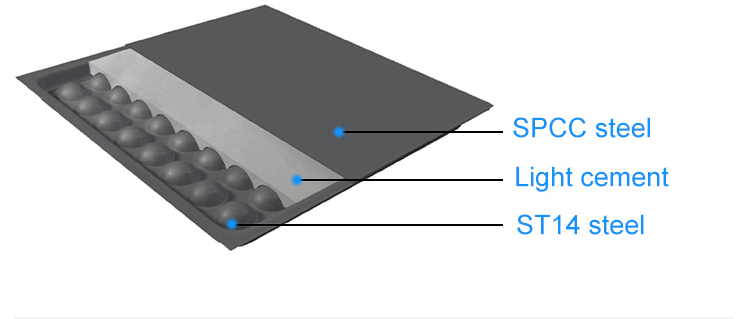

It is made of a high-quality cold-rolled steel plate, which is stretched and formed, reinforced by spot welding, surface phosphating treatment, and sprayed with epoxy resin. The cavity of the floor is filled with foamed cement, and the four corners of the panel have corner keyholes. There are 3types of office flooring. Steel cement office flooring, we also call it bare finish raised floor. There are three different sizes. One is 500*500mm, and the thickness is 28mm. This size is mainly used in China, Japan, and Korea. The other one is 600*600mm, and thickness is 33mm, most areas in the world use this size. The last one is 610*610mm, which is 24 “*24”. This is standard American size.

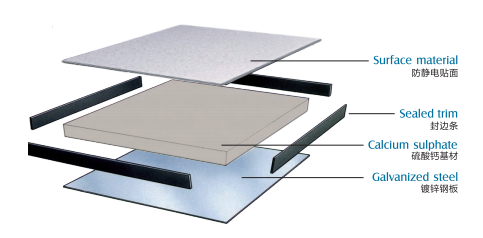

The main component of calcium sulfate substrate is high-strength natural gypsum powder, which uses plant fiber as a reinforcing material, is solidified into calcium sulfate crystals, and then pulsed and pressed. The recyclable ratio of Titan calcium sulfate substrate (calcium sulfate, vegetable cellulose) is as high as 97%. Because of its excellent environmental protection and fire protection advantages has become the latest generation of raised floors. There are two sizes, 500mm*500mm and 600*600mm, thickness is 25mm or 30mm. The panel is a sandwich structure, and the middle is calcium sulfate board, the top and bottom are galvanizing steel, the steel is riveted at four sides.
Wood core encapsulated panels have the same appearance as calcium sulfate encapsulated panels, production process and equipment are also the same. The only difference is the middle is chipboard. Encapsulated wood wore is fully wrapped around by hot-dipped galvanized steel. The top and bottom steel sheets are pressed and riveted, with high-density chipboard as the inside core. The wood core encapsulated panel we produce is 600*600mm in size and 30mm thick.
Raised access floors provide a clean and organized solution to managing the many cables needed for modern office technology. Instead of having wires running across the floor or walls, everything is tucked neatly underneath the floor panels, helping to keep the office looking tidy and professional.
In some offices, raised floors can also serve as a pathway for air circulation. When HVAC systems are installed under the raised floor, the office benefits from even temperature control and improved air distribution. This can create a more comfortable environment for employees and helps reduce the cost of air conditioning.
Since raised access floors make it easier to access and rearrange cabling and other systems, they’re perfect for offices that expect frequent layout changes. If you need to add new workstations, move existing ones, or change up the office structure, you can do so without much hassle.
One of the biggest differences among raised access floor types is height. Traditional raised floors can reach several feet, while low-profile floors may only be an inch or two high. Depending on the utilities your office needs, the height and adjustability of the flooring system can be crucial to ensure there’s enough space.
Each type of raised floor varies in terms of installation complexity and cost. Traditional floors, for example, require more time and higher installation costs due to the additional height and stability features needed. Low-profile floors, on the other hand, are faster and cheaper to install because they require fewer materials and support.
Different raised access floors also vary in how much weight they can support. Traditional systems are built to handle heavier loads, making them suitable for areas with heavy equipment. If you need a floor system for an open office space with desks and chairs, however, a low-profile floor may be more than sufficient. Durability can be another factor, as materials like steel are much tougher than composite or wooden panels.
When choosing a raised access floor, consider the specific needs of your office space. Think about the types of systems you’ll need to install under the floor—such as electrical, plumbing, or HVAC—and select a floor type that provides enough space to accommodate these.
Budget is always an essential consideration, especially when evaluating long-term maintenance. While traditional raised floors may cost more upfront, they’re also more durable and may require less frequent replacement. For those on a tighter budget, low-profile or modular floors offer a cost-effective and flexible solution.
Raised access floors come in various finishes, from carpeted surfaces to tiles, that blend seamlessly with the office décor. Consider the overall design and aesthetic of your office, and look for a raised floor option that matches or enhances the look of the space.
Office raised access floors are an effective way to improve utility management, air distribution, and layout flexibility. Whether you need a high-rise solution for intensive cabling needs or a low-profile option for minimal utility management, there’s a raised floor system that can work for you. By understanding the differences in height, cost, load-bearing capacity, and aesthetic options, you can select the best flooring solution to create a streamlined, efficient, and comfortable office space.
