Steel Vs Aluminum Vs Calcium Sulphate Raised Floors for Data Centers

Choosing the right raised floor for a data center is not simply a matter of comparing panel materials or unit prices. The flooring system must support heavy IT equipment, manage airflow, provide reliable cable access, maintain electrical safety, and perform consistently over many years.

Among the most common options are steel raised floors, aluminum raised floors, and calcium sulphate raised floors. Each material has different strengths, and the best choice depends on the data center's load requirements, cooling strategy, environmental conditions, budget, and operational priorities.

So, which one is best for a data center?

For most conventional and high-density data centers, steel raised flooring offers the best overall balance of load capacity, durability, cost, and availability. Aluminum can be a strong choice for specialized environments where corrosion resistance, weight, or cleanliness is important, while calcium sulphate is attractive when fire performance, acoustic properties, and sustainability are priorities.

This guide compares the three options in detail to help engineers, contractors, facility managers, and procurement teams make the right decision.

Why Material Selection Matters for Data Center Raised Floors

A raised floor is part of the data center infrastructure—not simply a finished floor.

The selected system needs to handle several requirements simultaneously:

• Heavy server cabinets and racks

• High-density GPU and AI equipment

• Concentrated loads from cabinet feet

• Rolling loads during equipment installation

• Underfloor airflow

• Power and data cable routing

• Electrostatic control

• Long-term dimensional stability

• Frequent panel removal

• Maintenance and future expansion

A low-cost panel that does not meet the project's structural or operational requirements can create significantly higher costs later.

The right approach is to evaluate the complete raised floor system, including the panel, pedestal, stringer system, finish, accessories, and installation—not the panel material alone.

Steel vs Aluminum vs Calcium Sulphate: Quick Comparison

Bottom line: Steel is usually the most cost-effective solution for general-purpose and high-density data centers. Aluminum is better suited to specialized technical environments, while calcium sulphate can be considered where acoustic, fire, and environmental characteristics are particularly important.

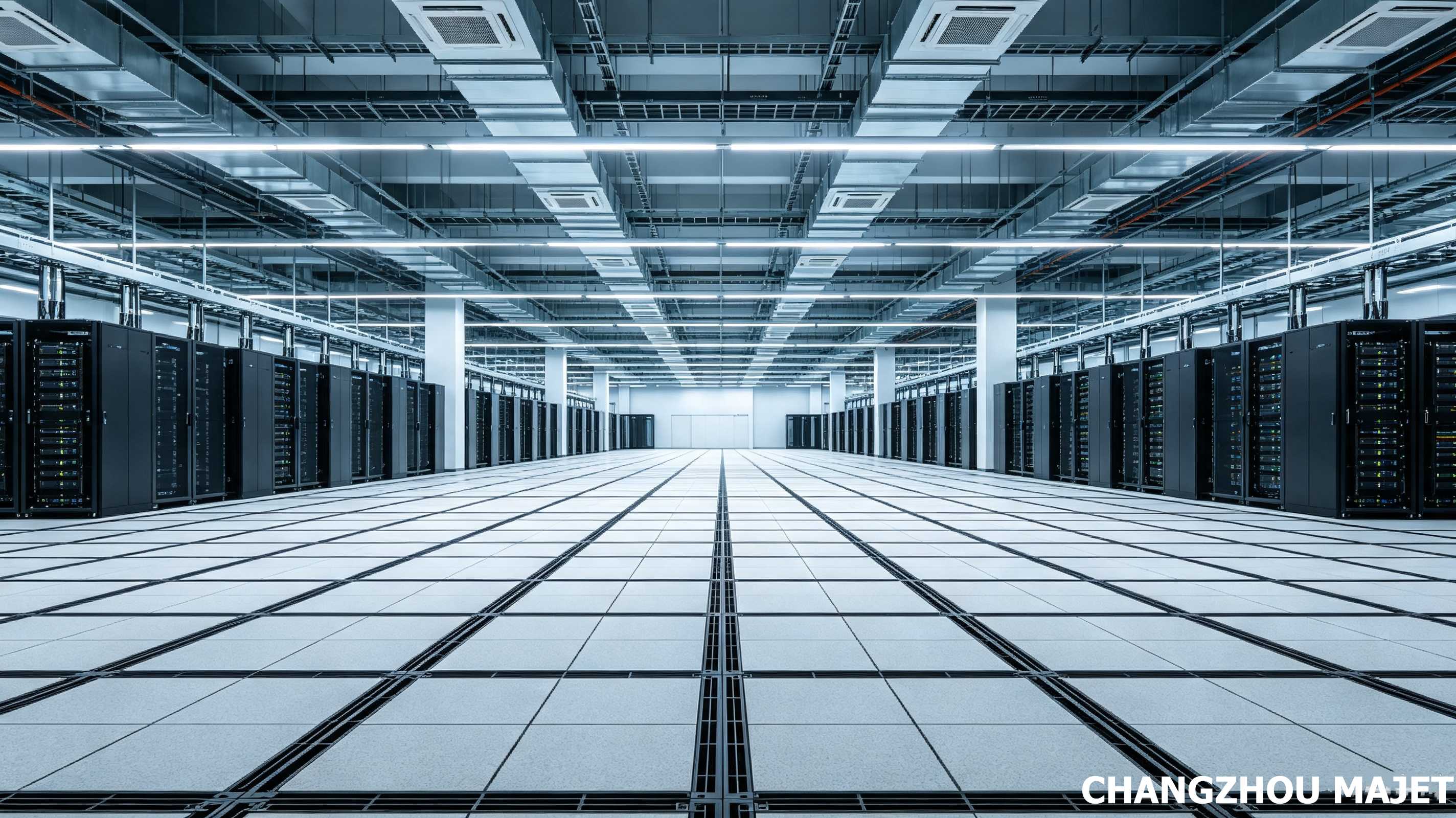

Steel Raised Floors for Data Centers

Steel raised floors are widely used in enterprise data centers, telecommunications rooms, colocation facilities, cloud infrastructure, and other technical environments.

A typical steel panel consists of a formed steel shell with a cementitious or lightweight infill, depending on the product design.

Advantages of Steel Raised Floors

High Load Capacity

Steel systems can be engineered for high concentrated and uniform loads, making them suitable for heavy server racks and other technical equipment.

This becomes particularly important in modern AI and HPC environments, where rack densities can be significantly higher than traditional IT installations.

Excellent Structural Stability

Steel has high structural strength and good dimensional stability.

When properly manufactured and installed, a steel raised floor provides a stable platform for:

• Server cabinets

• Network racks

• UPS equipment

• Battery cabinets

• Power distribution equipment

• Cooling equipment

Cost-Effective

One of the biggest advantages of steel is its balance between performance and price.

For large data center projects, the material is widely available, manufacturing processes are mature, and replacement panels and accessories are relatively easy to source.

Easy to Customize

Steel panels can be manufactured with different:

• Load ratings

• Finishes

• Edge treatments

• Cutouts

• Airflow configurations

This flexibility makes steel suitable for projects with different engineering requirements.

Disadvantages of Steel Raised Floors

Steel is not perfect.

Compared with aluminum, it is heavier and requires appropriate corrosion protection. The actual corrosion resistance depends on the steel grade, surface treatment, manufacturing quality, and environmental conditions.

For standard indoor data centers, however, this is generally manageable with a properly specified system.

Aluminum Raised Floors for Data Centers

Aluminum raised floors are made from aluminum panels or aluminum structural systems and are often selected for specialized technical environments.

Advantages of Aluminum Raised Floors

Excellent Corrosion Resistance

Aluminum naturally forms a protective oxide layer, making it highly resistant to corrosion in many environments.

This can be useful where moisture, chemicals, or strict environmental requirements are concerns.

Lightweight Construction

Aluminum can reduce the weight of the floor system compared with some heavy steel configurations.

This may be valuable when structural loading of the building needs to be carefully controlled.

High Strength-to-Weight Ratio

Aluminum can provide high structural performance without requiring the same material mass as some steel systems.

Excellent for Specialized Facilities

Aluminum raised floors are often considered for:

• Semiconductor facilities

• Cleanrooms

• Laboratories

• High-tech manufacturing

• Specialized technical rooms

Disadvantages of Aluminum Raised Floors

The biggest disadvantage is cost.

Aluminum raised floor systems are generally more expensive than standard steel systems, especially for large data center projects.

Another consideration is that aluminum has different thermal and mechanical characteristics from steel, so the complete pedestal and panel system should be engineered as a matched system rather than comparing panel materials in isolation.

Calcium Sulphate Raised Floors for Data Centers

Calcium sulphate raised floor panels are manufactured using a high-density calcium sulphate core, usually combined with a protective finish and edge treatment.

They are widely used in commercial buildings and technical environments.

Advantages of Calcium Sulphate Raised Floors

Good Fire Performance

Calcium sulphate is an inorganic material and can provide strong fire performance when the complete floor system is appropriately tested and specified.

This can make it attractive for projects with strict fire-safety requirements.

Excellent Acoustic Performance

Compared with lightweight metallic systems, calcium sulphate panels can provide good acoustic characteristics.

This may be beneficial in:

• Offices

• Control rooms

• Technical spaces

• Mixed-use facilities

Good Dimensional Stability

High-quality calcium sulphate panels can provide stable performance under normal indoor environmental conditions.

Sustainability Considerations

Calcium sulphate systems may appeal to projects with environmental targets, particularly when recycled or recyclable materials and environmental product documentation are part of the specification.

Disadvantages of Calcium Sulphate Raised Floors

The main limitation is that not every calcium sulphate panel is suitable for heavy-duty data center applications.

Before selecting one, buyers should carefully verify:

• Concentrated load

• Uniform load

• Rolling load

• Deflection

• Edge strength

• Moisture resistance

• Pedestal compatibility

A panel designed for a normal office environment should not automatically be used under heavy server racks.

Which Material Has the Highest Load Capacity?

There is no universal answer because load capacity depends on the complete system design, not simply the material.

A raised floor's performance is affected by:

• Panel thickness

• Panel construction

• Infill material

• Pedestal design

• Stringers

• Panel dimensions

• Support spacing

• Load application method

• Installation quality

For this reason, comparing "steel vs aluminum vs calcium sulphate" purely by material strength can be misleading.

Concentrated Load Is Especially Important

Data center racks place loads through relatively small contact areas.

Therefore, buyers should pay particular attention to concentrated load performance, rather than looking only at uniform load ratings.

For example, a panel may have an impressive uniform load rating but still require careful evaluation when supporting heavy server cabinets through a limited number of cabinet feet.

Steel vs Aluminum vs Calcium Sulphate for AI Data Centers

AI data centers are changing the requirements for infrastructure.

High-density GPU servers can produce:

• Higher rack weights

• Higher heat loads

• More complex power distribution

• Greater cooling requirements

• Increased equipment density

This means raised flooring may need to support higher loads while also providing effective airflow management.

Is Steel Suitable for AI Data Centers?

Yes—heavy-duty steel raised floors can be an excellent choice for AI data centers, provided the system is correctly engineered for the actual rack loads.

For high-density projects, specify:

• Higher concentrated load ratings

• Reinforced pedestal systems

• Appropriate stringers

• High-load panels

• Proper airflow panels

• Adequate floor height

• Reliable grounding

Is Aluminum Better for AI Data Centers?

Not necessarily.

Aluminum offers excellent strength-to-weight performance, but higher material cost can make it difficult to justify across an entire large-scale facility.

It may make more sense in specialized areas rather than throughout the entire data center.

What About Calcium Sulphate?

Calcium sulphate can be suitable for selected technical environments, but heavy AI server areas require careful verification of concentrated and rolling loads.

For high-density GPU deployments, the engineering specification should come before the material preference.

Which Raised Floor Is Best for Data Center Cooling?

The material itself does not determine cooling performance.

The floor system design is more important.

Cooling performance depends on:

• Raised floor height

• Underfloor plenum volume

• Perforated panel location

• Open area percentage

• Static pressure

• Air leakage

• Cable penetrations

• Cold aisle layout

• Cooling unit configuration

Both steel and aluminum systems can incorporate perforated airflow panels.

Calcium sulphate systems can also be designed for airflow applications, but the specific panel construction and airflow characteristics must be verified.

Perforated Panels Are Critical

Perforated raised floor panels allow conditioned air to move from the underfloor plenum into the data hall.

However, installing too many perforated panels can reduce underfloor static pressure and create inefficient airflow.

A better approach is to place airflow panels where the actual rack heat load requires them.

Which Material Is Best for Anti-Static Data Centers?

All three materials can be incorporated into anti-static raised floor systems, but electrical performance depends heavily on the surface finish and complete floor construction.

Common finishes include:

• HPL

• PVC

• Conductive finishes

• Other specialized anti-static surfaces

The key parameters include:

• Surface resistance

• System resistance

• Grounding method

• Finish quality

• Environmental conditions

For a data center, buyers should request test documentation rather than assuming that a particular core material automatically provides adequate ESD performance.

Steel vs Aluminum vs Calcium Sulphate: Cost Comparison

For most projects, the general cost relationship is:

Steel < Calcium Sulphate < Aluminum

However, this is only a general guideline.

The final project price depends on:

• Panel specifications

• Load rating

• Finish

• Floor height

• Quantity

• Pedestal type

• Stringers

• Airflow panels

• Accessories

• Packaging

• Shipping

• Installation

A cheaper panel can become more expensive if it requires additional reinforcement or has a shorter service life.

Which Raised Floor Is Easiest to Maintain?

All three systems provide removable panels, which is one of the fundamental benefits of raised access flooring.

However, maintenance performance depends on the complete design.

A good data center raised floor should allow technicians to:

1. Remove panels safely.

2. Access cables below the floor.

3. Inspect the underfloor space.

4. Replace damaged panels.

5. Reconfigure cable routes.

6. Add or relocate airflow panels.

For large data centers, standardized panel dimensions such as 600 × 600 mm can simplify maintenance and replacement.

How to Choose Between Steel, Aluminum, and Calcium Sulphate

Instead of asking "Which material is best?", ask five more useful questions.

1. What Is the Maximum Equipment Load?

Identify the heaviest:

• Server rack

• GPU rack

• UPS

• Battery cabinet

• Power distribution unit

• Cooling equipment

Then evaluate the actual load at each support point.

2. What Cooling Strategy Will Be Used?

Determine whether the facility uses:

• Underfloor air distribution

• Overhead cooling

• In-row cooling

• Liquid cooling

• Hybrid cooling

The raised floor design should support the overall cooling architecture.

3. How High Does the Floor Need to Be?

Higher floors can provide more underfloor space, but they can also increase:

• Material requirements

• Pedestal requirements

• Installation complexity

• Project cost

4. What Environmental Conditions Exist?

Consider:

• Humidity

• Temperature

• Corrosive environments

• Cleanliness

• Moisture risk

5. What Is the Project Budget?

Do not compare only the purchase price.

Consider total cost of ownership, including:

• Installation

• Maintenance

• Replacement

• Energy performance

• Future expansion

Steel vs Aluminum vs Calcium Sulphate: Decision Guide

The table is a starting point. Final selection should always be based on tested performance and project-specific engineering requirements.

What Should You Ask a Raised Floor Manufacturer?

Before placing an order, ask the supplier for the following information:

Technical Documentation

Request:

• Product datasheets

• Load test reports

• Deflection data

• Rolling load data

• Fire test information

• Electrical resistance data

• Installation instructions

Manufacturing Capability

A reliable supplier should be able to explain:

• Production process

• Quality control

• Testing procedures

• Material specifications

• Packaging

• Production lead time

• Replacement parts availability

Common Buying Mistakes

Choosing Based Only on Price

The cheapest raised floor is not necessarily the lowest-cost solution over its service life.

Looking Only at Uniform Load

Data center equipment often creates concentrated loads. Always verify both load types.

Ignoring Pedestals

A high-strength panel cannot compensate for an inadequate pedestal system.

Using Too Many Perforated Panels

More airflow openings do not automatically mean better cooling.

Ignoring Future Rack Density

Today's rack load may not be tomorrow's rack load, particularly in AI infrastructure.

Not Checking Test Reports

Product specifications should be supported by credible test documentation.

Frequently Asked Questions

Which is better for a data center: steel or aluminum raised flooring?

For most data centers, steel provides the best balance of load capacity, durability, customization, and cost. Aluminum is more attractive for specialized applications where low weight, corrosion resistance, or high-tech environmental requirements justify the additional cost.

Is calcium sulphate suitable for data centers?

Yes, but the specific product must be designed and tested for the required data center loads. Heavy server and AI applications require careful evaluation of concentrated load, rolling load, deflection, and moisture resistance.

What is the best raised floor material for AI data centers?

Heavy-duty steel is a practical choice for many AI data centers because it can provide high load capacity at a competitive cost. Specialized aluminum systems may also be appropriate for certain applications.

Does aluminum raised flooring cool a data center better than steel?

Not by itself. Cooling performance depends primarily on the raised floor height, underfloor plenum, perforated panel design, airflow distribution, static pressure, and overall cooling architecture.

Are steel raised floors anti-static?

They can be. Anti-static performance depends primarily on the floor finish, electrical properties, grounding system, and complete floor construction rather than simply the steel core.

How long can a data center raised floor last?

A properly specified and installed raised floor can provide long-term service, but actual lifespan depends on load, traffic, environmental conditions, maintenance, and product quality.

Should I choose steel, aluminum, or calcium sulphate for my project?

For most standard and high-density data centers, start by evaluating heavy-duty steel. Consider aluminum when corrosion resistance, weight, or specialized technical requirements are important. Consider calcium sulphate when acoustic, fire, and environmental characteristics are significant.

Final Verdict: Which Raised Floor Is Best?

There is no single material that is best for every data center.

However, for most projects:

Steel raised floors are the best overall choice for data centers because they combine high load capacity, durability, flexible design, and cost-effectiveness.

Aluminum raised floors are better suited to specialized environments where corrosion resistance, lightweight construction, or high-tech facility requirements justify the higher investment.

Calcium sulphate raised floors can be a strong option where acoustic performance, fire characteristics, dimensional stability, and sustainability are important, provided the selected product meets the project's structural requirements.

The most important point is this: do not select a raised floor based on material alone. Select the complete system based on load, cooling, height, environment, maintenance, and lifecycle cost.

Get a Data Center Raised Floor Recommendation

Still deciding between steel, aluminum, and calcium sulphate?

Provide your project requirements—including data center type, floor area, required floor height, rack weight, cooling method, and destination country—and a qualified raised floor manufacturer can recommend the appropriate panel, pedestal, stringer, finish, and airflow configuration.

For large B2B projects, a professional supplier should also be able to provide technical datasheets, load test reports, drawings, samples, project quotations, and customized solutions before you place the order.

Contact us for a customized data center raised floor solution and quotation.

More articles:Raised Floor for Data Centers: The Complete Buyer's Guide
