In earthquake-prone areas, the seismic design of the entire raised floor structure must be considered when selecting aluminum raised flooring or anti static raised floor.
A raised floor system does not work as an isolated floor panel. It is a structural assembly consisting of aluminum panels, pedestals, stringers, anchors, connectors, and sometimes additional bracing and equipment restraints. During an earthquake, horizontal forces can cause pedestal movement, panel displacement, connection failure, or equipment overturning if the system has not been properly designed.
The seismic performance of a raised floor refers to its ability to remain stable and functional when subjected to earthquake-induced horizontal and vertical forces.
Unlike a conventional floor, a raised access floor consists of multiple components connected together. Therefore, earthquake resistance depends on the entire raised floor system, not simply on the strength of the aluminum panel.
A typical system consists of:
Aluminum raised floor panels
Pedestals
Pedestal heads
Stringers
Stringer brackets or clips
Mechanical anchors
Panel retention components
Seismic bracing where required
Equipment anchorage for heavy equipment
During an earthquake, horizontal acceleration creates lateral forces throughout the system. The load path can generally be understood as:
Raised floor panel → pedestal head → pedestal → anchorage → concrete slab
If stringers or bracing are installed, they help distribute horizontal forces between multiple pedestals and improve the overall stability of the floor system.
A common misconception is that an aluminum raised floor is automatically earthquake-resistant because aluminum is strong, lightweight, and corrosion-resistant.
This is not necessarily true.
A high-quality aluminum panel can provide excellent mechanical and corrosion performance, but the seismic behavior of the complete system also depends on:
Pedestal strength
Pedestal height
Pedestal spacing
Stringer configuration
Connection strength
Anchorage to the structural slab
Panel retention
Lateral bracing
Equipment loads
Building seismic parameters
Therefore, buyers should evaluate the complete raised floor assembly rather than asking only for the panel material or panel load rating.
A normal raised floor is primarily designed to support vertical loads such as:
Server cabinets
People
Racks
Furniture
Air-conditioning equipment
Cleanroom equipment
Earthquake loading introduces significant horizontal forces.
During seismic movement, a pedestal can experience:
Lateral displacement
Sliding
Bending
Overturning
Connection failure
The panel can also move relative to the pedestal.
For a data center, the consequences can be more serious because raised floors often support heavy server racks, electrical equipment, cooling infrastructure, and cable systems.
A floor system that performs well under static vertical loading may therefore require additional engineering to achieve suitable seismic performance.
The following components are commonly considered when developing a seismic raised floor system.
The pedestal is one of the most important components in a seismic raised floor system.
A seismic pedestal may incorporate:
Reinforced steel tubing
Larger or thicker base plates
Reinforced pedestal heads
Stronger threaded rods
Anti-loosening locking nuts
Mechanical anchoring provisions
Its performance should be evaluated not only by axial load capacity but also by lateral stability and overturning resistance.
For higher seismic requirements, buyers should request technical information such as:
Pedestal axial load capacity
Pedestal overturning resistance
Lateral load capacity
Pedestal height
Base plate dimensions
Anchorage configuration
MAJET can configure pedestal systems according to project-specific floor heights and seismic requirements rather than applying one standard pedestal to every application.
A stringer connects individual pedestals and creates a more integrated support framework.
Instead of having isolated support points:
Panel → Pedestal
a stringered system creates:
Panel → Stringer → Multiple Pedestals
This can improve lateral stability and reduce independent pedestal movement.
Heavy-duty seismic stringers may use galvanized steel profiles with bolted connections to the pedestals.
During an earthquake, the raised floor system can experience racking and lateral movement. A properly designed stringer system helps distribute forces and maintain the geometry of the support structure.
For data centers and other mission-critical applications, buyers should verify:
Stringer material
Profile geometry
Thickness
Connection method
Bolt strength
Stringer-to-pedestal connection capacity
A pedestal that is simply placed on the concrete slab may not provide sufficient seismic stability for higher-risk applications.
Mechanical anchorage connects the pedestal base to the structural slab.
Common solutions include:
Expansion anchors
Concrete screws
Mechanical anchors
Chemical anchors
The correct anchorage depends on:
Concrete strength
Slab thickness
Anchor type
Required seismic force
Edge distance
Project specifications
For a seismic raised floor, anchorage should be considered part of the complete load path rather than an optional accessory.

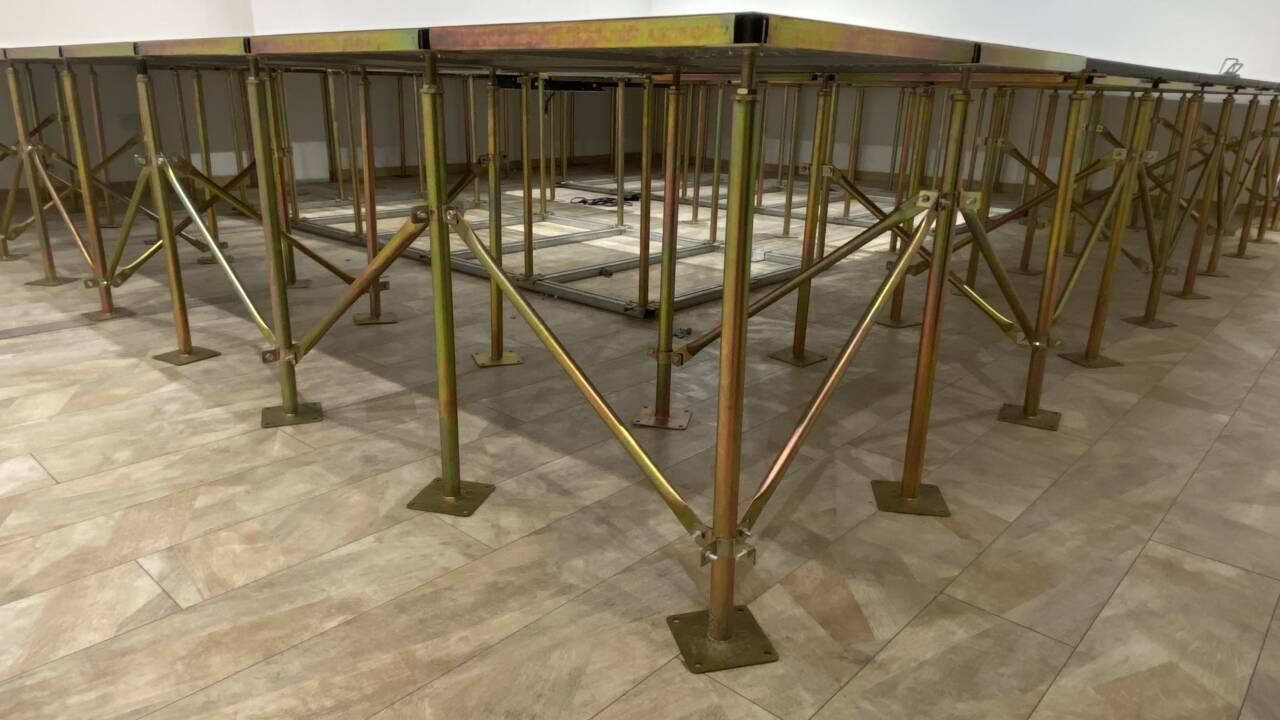

For demanding seismic applications, additional bracing may be required.
Typical components include:
Seismic diagonal braces
Lateral braces
Cross braces
Reinforced support frames
Bracing can increase lateral stiffness and reduce excessive movement of the pedestal grid.
However, bracing should not be added simply because a project is located in an earthquake-prone country. The appropriate configuration should be determined from the project seismic design requirements.
Earthquake movement can cause raised floor panels to shift, rotate, or potentially separate from their supports.
Depending on the system design, manufacturers may use:
Panel locking clips
Anti-movement clips
Panel retainers
Anti-lift clips
Mechanical panel locking systems
These components help maintain the relationship between the panel and the support structure.
This can be particularly important for raised floors installed in:
Data centers
Telecom rooms
Semiconductor facilities
Control rooms
Mission-critical facilities
A seismic raised floor should not be evaluated independently from the equipment installed on it.
For example, a server rack can generate significant horizontal inertial forces during an earthquake.
Therefore, a data center may require:
Equipment → Equipment Anchorage → Raised Floor/Structural Slab
Depending on the project design, equipment may require dedicated:
Rack restraint brackets
Equipment anchoring brackets
Support frames
Seismic restraint systems
This distinction is important: a seismic-rated raised floor does not automatically mean that the equipment installed above it is seismically restrained.
There is no single worldwide rule stating that every building in a particular country must use a seismic raised floor.
Seismic requirements depend on:
Local seismic hazard
Building location
Building code
Risk category
Facility function
Design acceleration
Floor acceleration
Equipment importance
Project specifications
Nevertheless, several regions are widely recognized as having significant earthquake risk and therefore deserve special attention when specifying raised access floors.
The United States contains several important seismic regions.
California is one of the most important markets for seismic raised floors, particularly for:
Data centers
Hospitals
Telecommunications facilities
Semiconductor facilities
Government buildings
Mission-critical facilities
Projects may need to consider applicable requirements from ASCE 7 and local building codes.
The term Special Access Floor is also important in U.S. specifications for certain applications.
Parts of Washington and Oregon also have significant seismic hazards.
For data centers and critical infrastructure in these regions, buyers should request project-specific seismic requirements rather than relying only on standard raised floor load ratings.
Japan is one of the world's most earthquake-prone developed markets.
Major cities and industrial areas such as:
Tokyo
Osaka
Nagoya
Yokohama
have extensive requirements and engineering practices related to earthquake resistance.
For Japanese raised floor projects, buyers may encounter Japanese Industrial Standards and project-specific seismic testing requirements.
Data centers, semiconductor facilities, telecommunications facilities, and high-value equipment rooms deserve particular attention.
Taiwan has significant seismic activity and is especially important for:
Semiconductor manufacturing
Cleanrooms
Data centers
Electronics factories
Raised floors in semiconductor and cleanroom facilities may support sensitive and expensive equipment, making seismic stability especially important.
For these projects, the floor system, equipment anchorage, and building structure should be considered together.
Chile is located along the Pacific Ring of Fire and experiences significant seismic activity.
Major commercial and industrial centers such as Santiago and other areas may require careful seismic engineering depending on the project.
Data centers, telecommunications facilities, industrial facilities, and critical infrastructure should be evaluated according to local seismic design requirements.
Mexico contains several seismically active areas, particularly along the Pacific coast and around Mexico City.
For projects involving:
Data centers
Telecommunications
Hospitals
Industrial facilities
Government buildings
buyers should confirm local seismic design requirements before selecting a raised floor configuration.
New Zealand has significant seismic exposure.
Raised floor applications in:
Data centers
Government facilities
Hospitals
Telecommunications
Critical infrastructure
may require enhanced seismic design depending on location and project category.
Turkey has experienced significant seismic activity, particularly along major fault systems.
For commercial and infrastructure projects, seismic requirements should be determined according to the applicable Turkish structural design regulations and project specifications.
Parts of Southern Europe also have meaningful seismic hazards, including areas of:
Italy
Greece
Portugal
Spain
Romania
European raised floor projects commonly use EN 12825 for raised floor performance, while seismic design of buildings and applicable non-structural elements may involve Eurocode 8 (EN 1998) and national requirements.
An important point for buyers is that EN 12825 load classes should not be confused with seismic grades.
For example, an EN 12825 Class 5 floor is a load-performance classification. It does not mean that the floor has "Seismic Grade 5."
China contains several regions with significant seismic activity.
For data center and critical facility projects, buyers should consider applicable Chinese seismic design requirements and data center standards.
The seismic classification of a building or data center should not automatically be interpreted as the seismic rating of the raised floor itself.
A raised floor manufacturer should therefore review the project specification, seismic parameters, floor height, equipment loads, and anchorage requirements before recommending a system.
There is no single international seismic standard that applies to every raised floor project.
Depending on the project location, buyers may encounter:
Primarily related to raised access floor performance, including load-bearing classification and testing.
Related to earthquake-resistant design of structures and applicable seismic design considerations.
Widely used in the United States for structural and non-structural seismic design.
Industry guidance frequently referenced in raised access floor and data center applications.
Relevant to raised floor testing and Japanese projects.
Local regulations may impose additional requirements beyond the basic raised floor product standard.
The most reliable approach is therefore:
Product standard + local seismic code + project-specific engineering requirements.
MAJET does not treat seismic performance as a simple product label.
For an aluminum raised floor project, the recommended system should be evaluated according to the complete application.
Aluminum raised floor panels can offer several advantages for demanding environments, including:
High strength-to-weight ratio
Excellent corrosion resistance
Dimensional stability
Good durability
Suitability for cleanroom and data center environments
However, panel performance is only one part of the seismic system.
MAJET can combine aluminum panels with appropriately engineered pedestal systems according to:
Floor height
Panel dimensions
Equipment load
Seismic requirements
Installation method
For projects requiring enhanced lateral stability, the system can incorporate:
Heavy-duty stringers
Stringer brackets
Mechanical pedestal anchorage
Reinforced pedestal bases
Panel retention components
A professional seismic raised floor specification should start with project information such as:
Project location
Applicable building code
Seismic design category or equivalent parameter
Design acceleration
Raised floor height
Panel size
Concentrated load
Uniform load
Equipment weight
Concrete slab conditions
Required anchorage
Testing requirements
This project-based approach helps MAJET avoid over-specifying or under-specifying the system.
Before purchasing an aluminum raised floor for an earthquake-prone location, buyers should check the following items.
Determine:
Country
City
Seismic zone
Applicable building code
Do not select a seismic system based only on the country name.
Ask the engineer or consultant for:
Design seismic acceleration
Horizontal seismic force
Vertical seismic force where applicable
Seismic design category
Floor acceleration if specified
Request:
Axial load capacity
Overturning resistance
Lateral load capacity
Pedestal height range
Base plate dimensions
Confirm:
Stringer profile
Thickness
Material
Connection type
Stringer-to-pedestal capacity
Confirm whether the project requires:
Adhesive fixing
Mechanical anchors
Expansion anchors
Chemical anchors
Ask whether the project requires:
Panel locking clips
Anti-lift clips
Anti-movement devices
Mechanical panel retention
For data centers and critical facilities, confirm whether:
Server racks
UPS systems
Batteries
Cooling equipment
Electrical cabinets
require independent seismic anchorage.
Depending on the project, buyers may request:
Concentrated load test
Uniform load test
Rolling load test
Pedestal overturning test
Lateral load test
Seismic qualification test
Shake table test
The exact testing program should correspond to the project specification and applicable standard.
An aluminum raised floor can be engineered for seismic applications, but aluminum alone does not make a raised floor seismic-resistant. Seismic performance depends on the complete system, including panels, pedestals, stringers, anchorage, panel retention, bracing, and equipment restraints.
Common seismic accessories include seismic pedestals, heavy-duty stringers, mechanical anchors, seismic braces, stringer brackets, panel locking clips, anti-lift devices, and equipment anchorage systems.
No. EN 12825 primarily defines performance and load classifications for raised access floors. Its load classes should not be interpreted as seismic grades.
A seismic raised floor pedestal is an engineered support designed to provide enhanced stability against horizontal movement, overturning, and seismic forces. It may include reinforced tubing, larger base plates, locking nuts, reinforced heads, and mechanical anchorage.
Not every data center requires the same seismic configuration. The requirement depends on location, building code, facility risk category, equipment importance, and project specifications. Data centers in high-seismic regions commonly require more detailed seismic evaluation.
Countries and regions with significant seismic exposure include Japan, Taiwan, Chile, New Zealand, parts of the United States such as California and the Pacific Northwest, Mexico, Turkey, and several Southern European regions. However, the final requirement must always be determined from the specific project location and applicable code.
A stringer is not automatically required for every raised floor. However, stringers can significantly improve the lateral stability of the pedestal system and are commonly considered for higher seismic requirements and mission-critical applications.
Not by itself. Server racks and other heavy equipment may require independent seismic restraint or anchorage. The raised floor and equipment should be treated as separate but interconnected parts of the overall seismic design.
MAJET should normally review the project location, applicable code, seismic parameters, panel size, floor height, load requirements, equipment weight, slab conditions, anchorage requirements, and required testing or certification.
For earthquake-prone projects, choosing an aluminum raised floor should go beyond comparing panel thickness or load ratings.
The most important principle is:
Seismic performance belongs to the complete raised floor system, not to the panel alone.
A reliable seismic aluminum raised floor may require a combination of:
Aluminum Raised Floor Panel + Seismic Pedestal + Stringer + Mechanical Anchorage + Panel Retention + Seismic Bracing + Equipment Anchorage
The appropriate configuration depends on the project's seismic parameters, building regulations, floor height, equipment loads, and application.
For data centers, semiconductor cleanrooms, telecom facilities, hospitals, and other mission-critical environments, early coordination between the raised floor manufacturer, structural engineer, architect, and equipment supplier can significantly reduce technical risks.
With experience in aluminum raised access floor manufacturing, MAJET can help international buyers evaluate project requirements and develop an appropriate raised floor configuration for data centers, cleanrooms, server rooms, and other demanding applications.
If you are planning an aluminum raised floor project in a seismic region, contact MAJET with your project location, floor height, panel size, load requirement, and seismic specification. Our technical team can help you determine the appropriate pedestal, stringer, anchorage, and seismic configuration and provide a project-specific quotation.
