How To Plan for Raised Floor Installation ？

Guide line to Raised Access Floor Installation: Costs, Steps, and Best Practices

If you’re planning a commercial renovation, data center upgrade, or modern office build-out, raised access floors (also known as raised flooring systems or computer flooring) are a critical component for optimizing space, managing cables, and ensuring flexibility. This comprehensive guide covers everything you need to know about raised floor installation, including design planning, step-by-step installation procedures, cost breakdowns, and expert tips to ensure your project’s success.

Why Choose Raised Access Flooring?

Raised access floors are modular systems that elevate floor panels above a structural substrate, creating a hidden void for routing electrical, HVAC, and data infrastructure. They’re essential for:

• Data centers: Supporting high-density server loads and cooling systems.

• Office spaces: Enabling flexible layouts and easy access to utilities.

• Laboratories: Providing chemical resistance and anti-static properties.

• Healthcare facilities: Simplifying sanitation and maintenance.

Pre-Installation Planning: Laying the Groundwork

1. Design & Engineering

A well-designed raised floor system starts with understanding your project’s unique requirements:

• Load Capacity:

• Standard offices: 300–500 kg/m².

• Data centers: 1,000–1,500 kg/m² (for server racks).

• Use CALCULUM or Kingspan design software to model weight distribution.

• Height Requirements:

• Typical heights range from 150 mm (for basic cable management) to 1,000 mm (for large HVAC ducts).

• Material Selection:

• Steel panels: Cost-effective, ideal for offices ($300–500/m²).

• Calcium sulfate panels: Fire-resistant, perfect for data centers ($600–900/m²).

• Aluminum panels: Lightweight and corrosion-resistant, suited for labs ($800–1,200/m²).

Pro Tip: Always comply with local building codes like ASTM F1551 (U.S.) or GB/T 36340 (China) for fire safety and seismic performance.

2. Site Preparation

• Floor Flatness: Ensure the subfloor has ≤3 mm/m² deviation. Use self-leveling concrete if needed.

• Environmental Controls: Maintain humidity below 60% to prevent metal corrosion.

• Utility Mapping: Mark existing electrical conduits, plumbing, and HVAC ducts to avoid clashes.

Step-by-Step Raised Floor Installation Process

1. Layout & Marking

• Use a laser level to mark grid lines for pedestal placement. Standard grids are 1,200 x 1,200 mm, but high-load zones may require 600 x 600 mm spacing.

• Label cutouts for power outlets, vents, and cable pass-throughs.

2. Installing Pedestals & Stringers

• Pedestal Bases: Secure adjustable pedestals to the subfloor using anchor bolts or epoxy adhesive. Verify vertical alignment with a spirit level.

• Height Adjustment: Rotate threaded pedestal columns to achieve the desired floor height. Lock in place with a torque wrench (10–15 Nm).

• Stringer Assembly: Attach cross braces (T-shaped or inverted-T) to create a rigid grid. For seismic zones, add diagonal bracing.

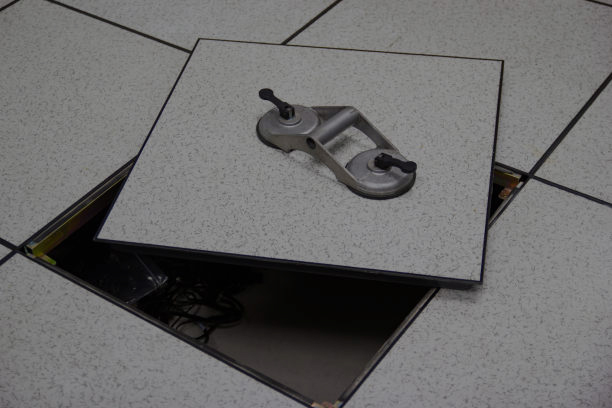

3. Panel Installation

• Start laying panels from a corner, using full-size tiles (600 x 600 mm) first.

• Cut edge panels with a circular saw (for steel) or waterjet cutter (for calcium sulfate). Seal cut edges with anti-rust paint or PVC trim.

• Check gaps between panels (≤1 mm) and use a rubber mallet for adjustments.

4. Integrating MEP Systems

• Cable Management: Route power and data cables through the underfloor void. Use cable trays for organization.

• Airflow Optimization: Install perforated panels near server racks or HVAC vents (25–50% open area).

• Grounding: Connect all metal components to the building’s grounding system (resistance ≤10Ω).

5. Final Adjustments & Testing

• Perform a load test: Apply 150% of the design load for 24 hours; settlement should be ≤2 mm.

• Use a digital inclinometer to verify flatness across the entire floor.

Time & Cost Estimates for Raised Floor Projects

1. Installation Timeline

Delays often occur due to:

• Custom panel cutting (adds 1–2 days).

• Post-installation anti-static coating (24-hour curing time).

2. Cost Breakdown

•


  Materials:




• Steel panels: $300–500/m².

• Calcium sulfate: $600–900/m².

• Aluminum panels: $800–1,200/m².

•


  Labor:




• U.S./Europe: $30–50/m².

• Asia: $15–25/m².

•


  Total Example:

  A 1,000 m² data center with calcium sulfate panels costs ~$750,000 (materials + labor).




Critical Mistakes to Avoid

1. Skipping Subfloor Inspection: Uneven substrates cause squeaking and panel misalignment.

2. Poor Cable Planning: Overloading the void with cables restricts airflow and complicates maintenance.

3. Ignoring Anti-Static Requirements: Data centers need ESD-rated floors (surface resistance 10⁶–10⁹Ω).

Maintenance & Long-Term Care

• Daily: Use microfiber mops for cleaning; avoid abrasive chemicals.

• Monthly: Inspect pedestal tightness and grounding connections.

• Annual: Replace damaged panels (5–10% over a 10-year lifespan).

Why Hire a Professional Raised Floor Contractor?

While DIY installation might seem cost-effective, professionals ensure:

• Compliance with ISO 9001 and ISO 14001 standards.

• Precision cutting for complex layouts.

• Post-installation support, including thermal imaging to detect airflow issues.

Elevate Your Space with Raised Access Floors

Whether you’re building a cutting-edge data center or a flexible office environment, raised access floors offer unmatched utility and adaptability. By following this guide, you’ll avoid costly errors and maximize ROI.
