Views: 0 Author: sunny Publish Time: 2026-06-30 Origin: Site
we'll explain how to choose the ideal raised floor fan, what specifications matter most,common mistakes to avoid, and why MAJET provides reliable airflow solutions trusted by customers worldwide. compare majet raised floor AC fan vs majet raised floor EC fan.
Modern data centers demand more than simply installing raised access floors. As rack densities continue to increase, efficient cooling has become one of the biggest challenges for facility owners, engineers, and contractors.
One of the most effective ways to improve cooling efficiency is by selecting the correct raised floor fan. Whether you are building data center, enterprise server room, telecom facility, or edge computing site, the right fan can significantly improve airflow distribution while reducing energy consumption.
Traditional perforated floor panels depend solely on the static pressure generated by CRAC or CRAH units.
However, today's high-density racks often create uneven airflow patterns. Some cabinets receive excessive cooling while others suffer from hot spots.
A raised floor fan actively boosts conditioned air through designated floor panels, helping deliver cooling exactly where it is needed.
Major advantages include:
Higher cooling efficiency
Reduced server hot spots
Lower PUE (Power Usage Effectiveness)
Better airflow control
Reduced cooling energy costs
Easier expansion for future IT loads
Instead of increasing the output of expensive cooling equipment, many operators now install intelligent raised floor fan units to optimize airflow.
MAJET provides complete raised floor airflow solutions designed for mission-critical facilities requiring reliable temperature management.
A raised floor fan is an airflow boosting device installed beneath a raised access floor.
It draws cold air from the underfloor plenum and pushes it upward through:
Perforated raised floor panels
Aluminum airflow grilles
High-airflow floor diffusers
Adjustable airflow panels
Unlike passive perforated panels, fan-assisted panels actively deliver cooled air directly to server intakes.
These systems are commonly used in:
Enterprise data centers
Cloud computing facilities
AI computing centers
Colocation facilities
Telecommunications rooms
Network operation centers
Edge data centers
Clean rooms
MAJET manufactures raised floor fans compatible with multiple raised floor systems, including aluminum raised floors, steel cement raised floors, calcium sulphate raised floors, and woodcore access floors.

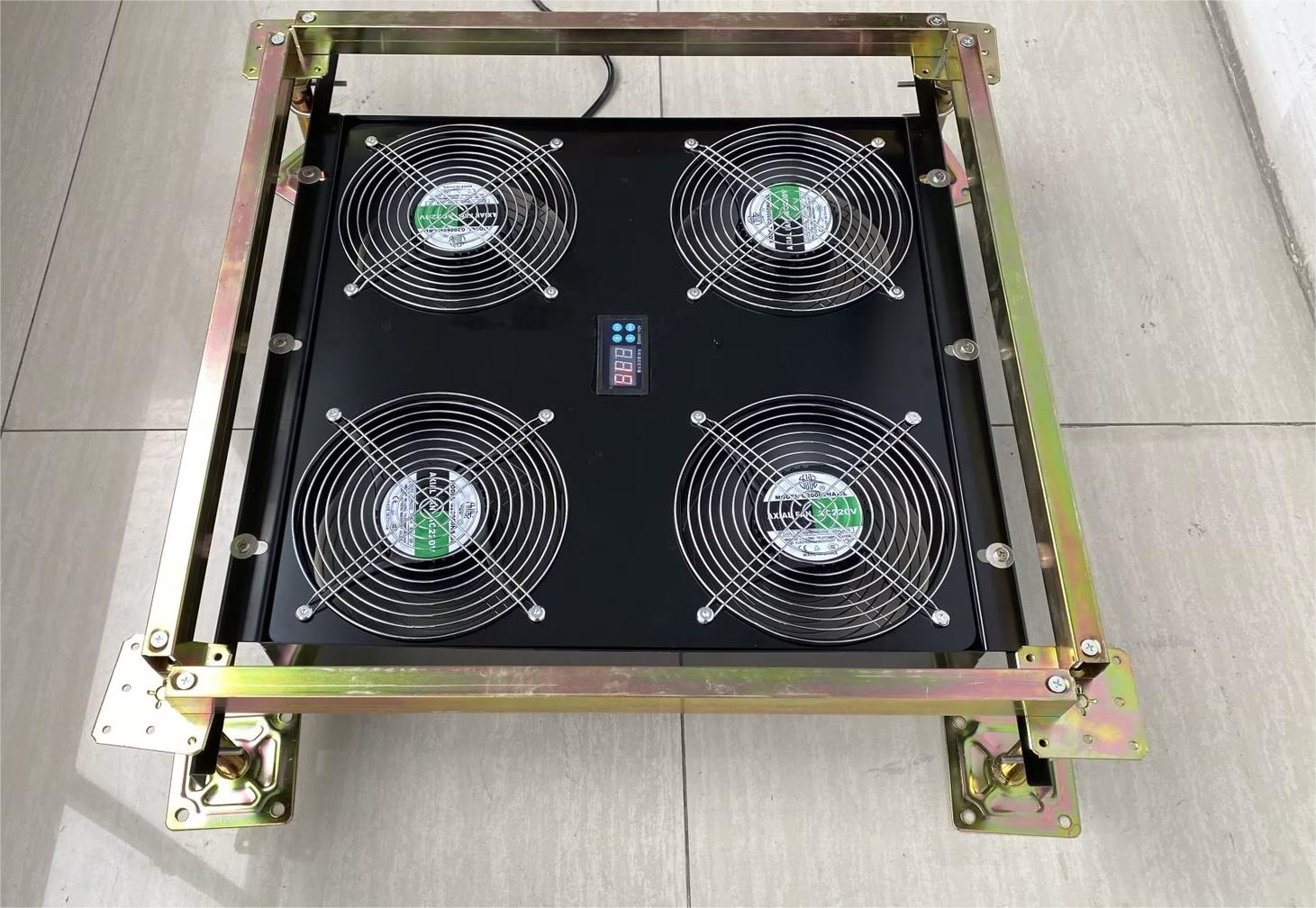

AC fans remain a popular option for many conventional data centers.
Advantages include:
Lower initial cost
Simple installation
Mature technology
Easy maintenance
Best for:
Small server rooms
Medium-density racks
Budget-conscious projects
Electronically Commutated (EC) fans have become the preferred solution for modern facilities.
Benefits include:
Higher efficiency
Lower power consumption
Variable speed control
Lower noise
Longer lifespan
Smart monitoring compatibility
Many high-performance MAJET raised floor fans utilize EC motors for maximum efficiency.
Some advanced raised floor fans include:
Temperature sensors
Pressure sensors
Automatic speed adjustment
Building Management System (BMS) integration
Modbus communication
Remote monitoring
These intelligent systems automatically adjust airflow according to server demand.
The most important specification is airflow volume.
Typical airflow ranges include:
Application | Recommended Airflow |
|---|---|
Small server room | 500–800 CFM |
Enterprise racks | 800–1500 CFM |
High-density racks | 1500–3000+ CFM |
Selecting insufficient airflow can result in overheating, while oversized fans may waste energy.
MAJET helps customers calculate airflow requirements based on rack heat load and room layout.
Raised floor systems create resistance.
The fan must overcome:
Underfloor obstacles
Cable congestion
Pipe routing
Floor height limitations
Air leakage
Higher static pressure enables more consistent airflow delivery.
Cooling requirements vary according to rack load.
Typical examples:
3–5 kW racks
5–10 kW racks
10–20 kW racks
AI racks exceeding 30 kW
As rack density increases, fan-assisted airflow becomes increasingly important.
MAJET recommends customized airflow designs for high-density applications.
The underfloor plenum greatly affects airflow.
Typical heights include:
300 mm
450 mm
600 mm
800 mm
1000 mm
Lower plenums generally require higher-pressure fans.
Cooling accounts for a significant portion of total data center electricity usage.
Choosing energy-efficient EC raised floor fans can:
Reduce electricity consumption
Lower operating costs
Improve sustainability
Support green building certifications
MAJET focuses on energy-efficient airflow solutions that help customers reduce long-term operating expenses.
A simplified approach includes the following steps:
Determine total IT heat load.
Example:
20 racks × 8 kW = 160 kW
Estimate required cooling airflow.
Engineering software or HVAC calculations are typically used to convert heat load into airflow requirements.
Evaluate airflow supplied by existing perforated panels.
Identify hot spots.
Install raised floor fans only where additional airflow is needed.
This targeted strategy minimizes investment while maximizing cooling performance.
Feature | Perforated Panel | Raised Floor Fan |
|---|---|---|
Passive airflow | Yes | No |
Active airflow | No | Yes |
Adjustable airflow | Limited | Excellent |
Suitable for high-density racks | Limited | Excellent |
Energy efficiency | Moderate | High |
Hot spot control | Weak | Strong |
Many facilities use a combination of both systems.
MAJET supplies compatible airflow panels and fan units for integrated cooling solutions.
Feature | AC Fan | EC Fan |
|---|---|---|
Initial cost | Lower | Higher |
Energy consumption | Higher | Lower |
Noise | Higher | Lower |
Variable speed | Limited | Excellent |
Service life | Good | Excellent |
Smart control | Basic | Advanced |
For new data center projects, EC raised floor fans are generally the recommended option due to lower lifecycle costs.
Proper installation significantly affects performance.
Recommendations include:
Position fans directly in front of high-density racks.
Avoid blocking airflow with cable bundles.
Seal unnecessary floor openings to reduce leakage.
Maintain adequate underfloor clearance.
Balance airflow across cold aisles.
Regularly clean filters and fan blades.
Inspect electrical connections periodically.
MAJET provides installation guidance to ensure customers achieve optimal cooling performance.
High airflow alone does not guarantee effective cooling.
Static pressure and airflow distribution are equally important.
Future rack density should be considered during design.
Selecting scalable fan systems reduces future upgrade costs.
Low-cost fans often consume more electricity and require frequent maintenance.
Lifecycle cost is more important than purchase price.
Always verify compatibility with:
Raised floor height
Floor panel dimensions
Electrical supply
Control systems
Airflow panels
MAJET offers customized raised floor fan solutions compatible with most international raised floor systems.
Raised floor fans are widely used in:
Improve airflow for medium-density server racks.
Support high-power GPU clusters requiring intensive cooling.
Optimize cold aisle containment systems.
Maintain reliable temperatures in compact equipment rooms.
Ensure stable cooling for communication equipment.
Maintain controlled airflow while supporting sensitive manufacturing environments.
MAJET has supplied airflow products for data centers, clean rooms, semiconductor facilities, pharmaceutical plants, and other mission-critical projects.
In many low-density server rooms, perforated panels are sufficient. However, as rack power density increases, raised floor fans provide targeted airflow where passive panels alone may not meet cooling demands.
EC fans generally provide better energy efficiency, quieter operation, and variable speed control, making them the preferred choice for modern data centers.
Yes. By directing conditioned air precisely to high-demand areas, raised floor fans improve cooling efficiency and may reduce the workload on CRAC or CRAH systems, lowering overall energy consumption.
Service life depends on operating conditions and maintenance. High-quality EC fan units from manufacturers like MAJET are designed for long-term, continuous operation in mission-critical environments.
Yes. MAJET provides customized airflow solutions based on project requirements, including floor height, rack density, airflow targets, electrical specifications, and control preferences.
Selecting the right supplier is just as important as selecting the right product.
MAJET is committed to providing reliable raised floor airflow solutions for global data center projects.
Our advantages include:
Professional manufacturing experience
Complete raised floor system solutions
High-efficiency EC and AC fan options
Custom airflow design support
OEM and ODM capabilities
Strict quality control
International project experience
Fast global delivery
Responsive technical support
Whether your project involves a new hyperscale facility or upgrading an existing server room, MAJET can provide customized raised floor fan solutions that improve airflow efficiency, enhance equipment reliability, and reduce long-term operating costs.
As data centers continue evolving toward higher rack densities and greater computing demands, cooling efficiency has become a strategic priority. Choosing the right raised floor fan is no longer just an equipment decision—it is an investment in system reliability, energy savings, and long-term operational performance.
When evaluating a solution, consider airflow capacity, static pressure, fan technology, floor height, rack power density, energy efficiency, and future scalability rather than focusing solely on upfront cost.
By combining high-quality raised access flooring with intelligent airflow management, organizations can minimize hot spots, optimize cooling distribution, and improve overall data center efficiency.
If you are planning a new project or upgrading an existing facility, MAJET offers comprehensive raised floor systems, airflow panels, and advanced raised floor fan solutions tailored to your specific requirements. With professional engineering support and customizable designs, MAJET helps customers around the world build safer, more efficient, and future-ready data centers.
