Views: 0 Author: Site Editor Publish Time: 2026-06-11 Origin: Site
Modern data centers generate enormous amounts of heat. Without proper cooling, servers can overheat, leading to downtime, equipment damage, and reduced operational efficiency.
This is why raised floor cooling has become one of the most important infrastructure strategies in data center design.
But how exactly does airflow work under a raised floor system? Why do many data centers still rely on raised access flooring for cooling efficiency?
In this guide, we explain how raised floor cooling works in data centers, the role of airflow management, perforated panels, cooling equipment, and how to optimize cooling performance.
A raised floor cooling system works by creating an underfloor air plenum beneath the data center floor. Cold air generated by cooling units such as CRAC (Computer Room Air Conditioner) or CRAH (Computer Room Air Handler) systems is distributed under the floor and delivered upward through perforated raised floor panels positioned near server racks.
The system separates cold air supply and hot air return, improving cooling efficiency, cable organization, and energy savings.
Data centers contain thousands of servers running continuously. These servers produce significant heat.
Without effective airflow:
Equipment temperature increases
Performance decreases
Hardware lifespan shortens
Risk of system failure rises
Energy consumption becomes inefficient
According to industry standards, maintaining proper temperature and airflow is critical for operational reliability.
Servers convert electricity into heat almost constantly. High-density racks can generate extreme thermal loads.
In ordinary buildings, HVAC systems cool entire rooms. Data centers need targeted cooling where heat is generated.
That is where raised floor airflow systems become essential.
Raised floor cooling refers to a cooling method where cold air flows beneath a raised access floor and is distributed strategically to IT equipment.
A raised floor system creates an elevated floor above the building slab.
It consists of:
Raised floor panels
Pedestals
Stringers
Underfloor plenum space
The empty cavity below the floor becomes an air distribution channel.
Raised floors serve multiple purposes:
Cold air travels under the floor and rises through perforated panels.
Power and data cables remain hidden beneath the floor.
Technicians can easily access cables and utilities.
Data centers can adapt to future upgrades.
Understanding airflow is essential for designing an efficient cooling system.
Cooling begins with specialized systems.
Computer Room Air Conditioners (CRAC) cool air using refrigeration cycles.
These systems:
Remove heat
Control humidity
Push cold air into the underfloor plenum
Computer Room Air Handlers (CRAH) use chilled water systems.
Compared with CRAC units, they often provide better energy efficiency for larger facilities.
After cooling, air enters the underfloor chamber.
The plenum acts as a pressurized chamber that distributes cold air evenly.
Its effectiveness depends on:
Floor height
Obstruction management
Air pressure balance
Cable organization
Poor cable management can block airflow and reduce cooling performance.

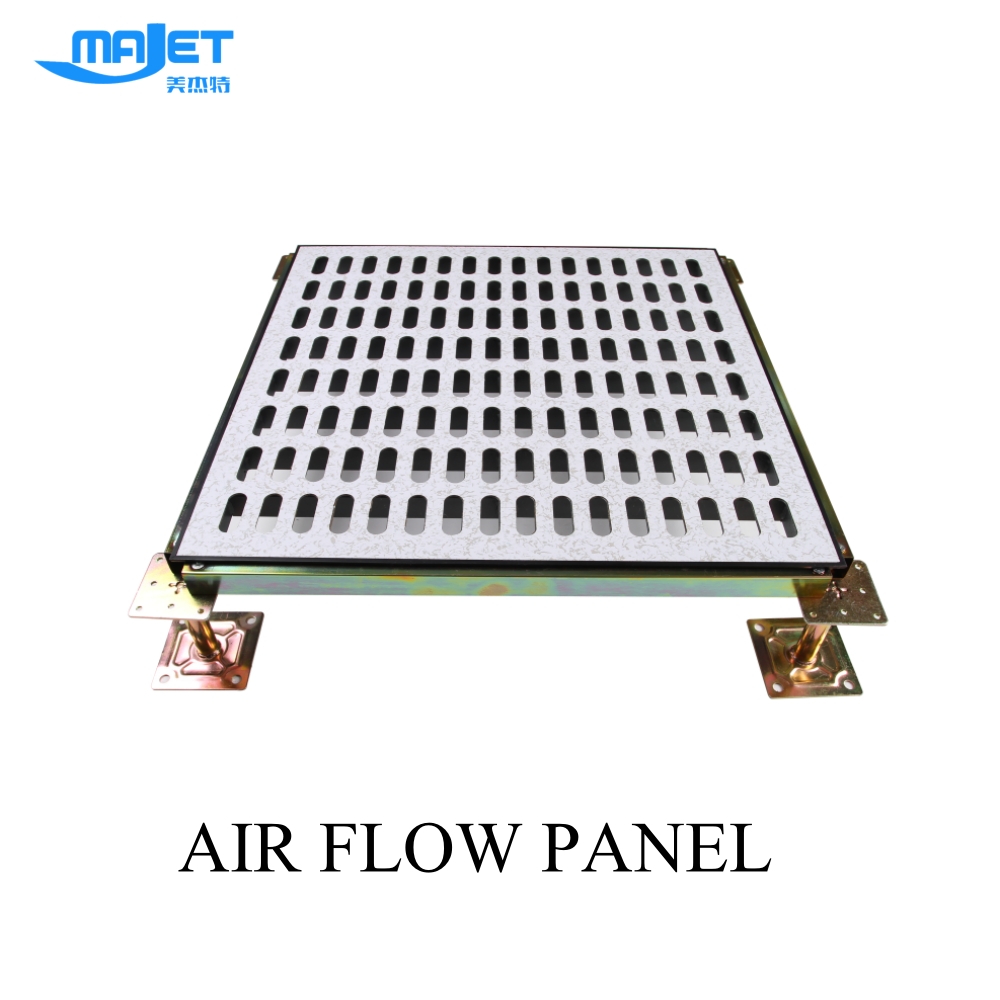

Cold air exits through strategically placed perforated panels.
Typically installed in front of server racks.
They allow controlled airflow to equipment intakes.
Used in high-density environments requiring additional cooling.
Designed to direct airflow precisely toward critical equipment.
Servers intake cool air from the front.
Heat is expelled from the back.
This creates predictable airflow movement.
Hot air rises and returns to cooling equipment for recirculation.
This creates a continuous cooling loop.

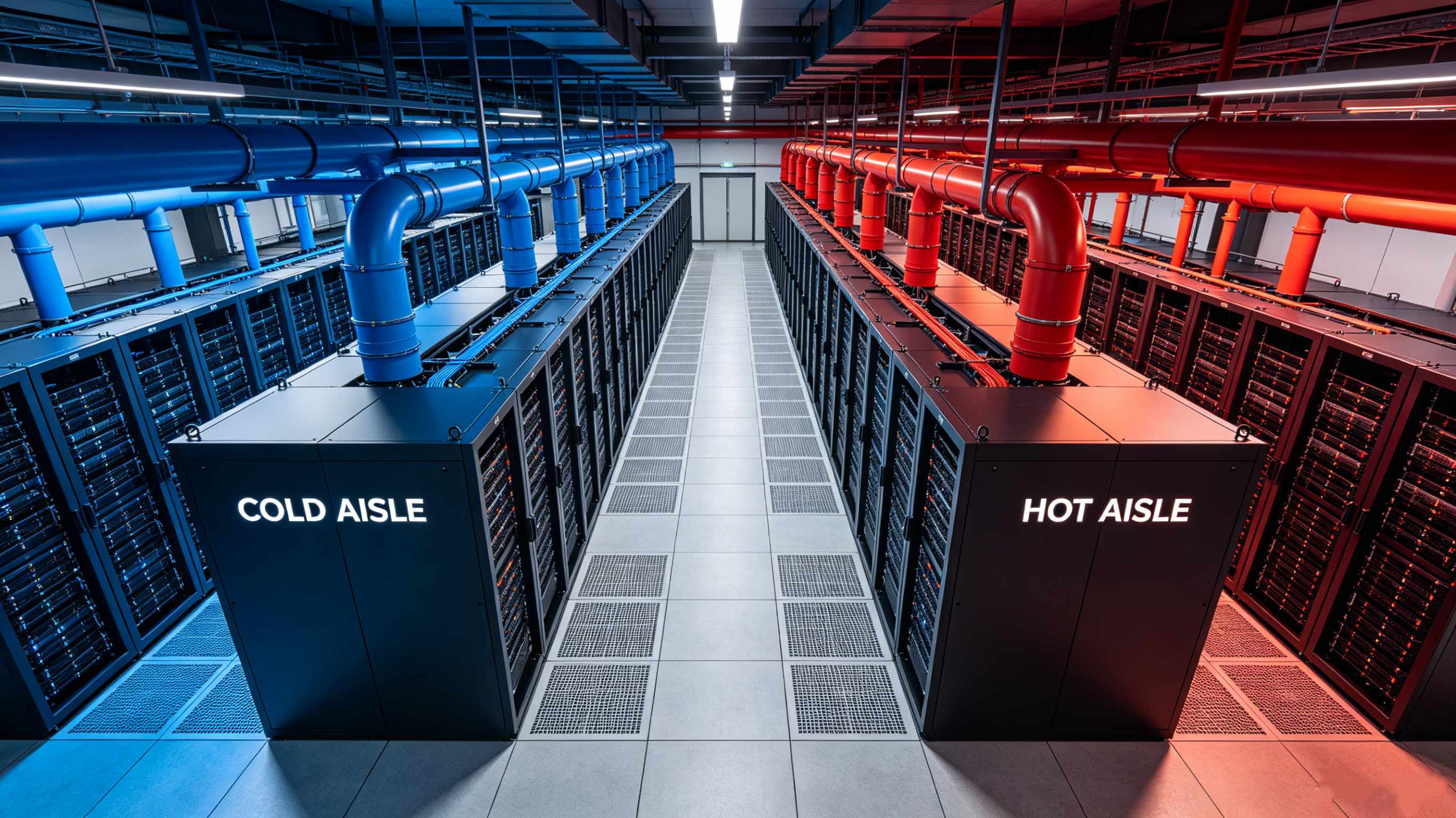

One of the most important airflow strategies is hot aisle/cold aisle containment.
A cold aisle is where server fronts face each other.
Cold air from perforated floor panels enters this space.
A hot aisle is where server exhausts face each other.
Hot air accumulates and returns to cooling units.
Separating hot and cold air prevents mixing.
Benefits include:
Lower cooling costs
Better airflow control
Improved energy efficiency
Stable server temperatures
When hot and cold air mix, cooling efficiency drops dramatically.
This can create:
Hot spots
Overheating risks
Uneven cooling
Floor height directly impacts airflow efficiency.
The ideal height depends on cooling demand.
| Data Center Type | Recommended Height |
|---|---|
| Small server rooms | 300–450 mm |
| Medium facilities | 450–600 mm |
| High-density data centers | 600–1200 mm |
Higher floors generally improve airflow capacity.
However, too much height can:
Increase construction costs
Reduce pressure control efficiency
Proper engineering is necessary.
Even well-designed systems can face challenges.
Poor cable management often blocks underfloor air.
Use organized cable trays and avoid overcrowding.
Poor perforated tile placement creates uneven cooling.
Position airflow panels based on rack heat loads.
Some racks may overheat due to poor airflow balance.
Conduct thermal mapping and airflow analysis.
Gaps under cabinets can waste cold air.
Seal unnecessary openings.
Many facilities compare raised floor cooling with overhead systems.
| Feature | Raised Floor Cooling | Overhead Cooling |
|---|---|---|
| Air delivery | Underfloor | Ceiling |
| Cable management | Excellent | Moderate |
| Scalability | High | Moderate |
| Cooling precision | High | High |
| Retrofit flexibility | Good | Better for some facilities |
The answer depends on facility requirements.
Traditional enterprise data centers
Facilities requiring cable management
Medium to large installations
Ultra-high-density environments
Limited floor height projects
Many modern data centers combine both systems.
Install panels only where cooling is needed.
Balanced pressure improves airflow distribution.
CFD modeling helps predict airflow performance.
Containment systems significantly improve efficiency.
Avoid airflow restrictions caused by unmanaged cables.
Not all raised floors perform equally.

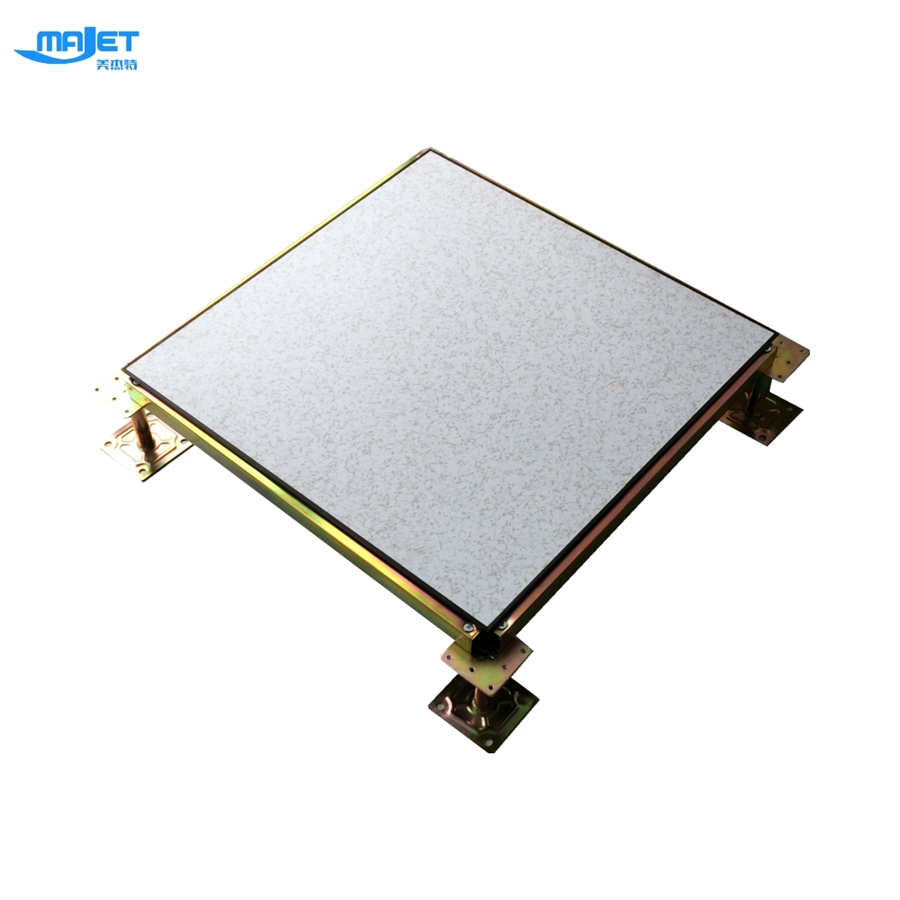

Suitable for:
General data centers
Heavy load applications
Cost efficiency

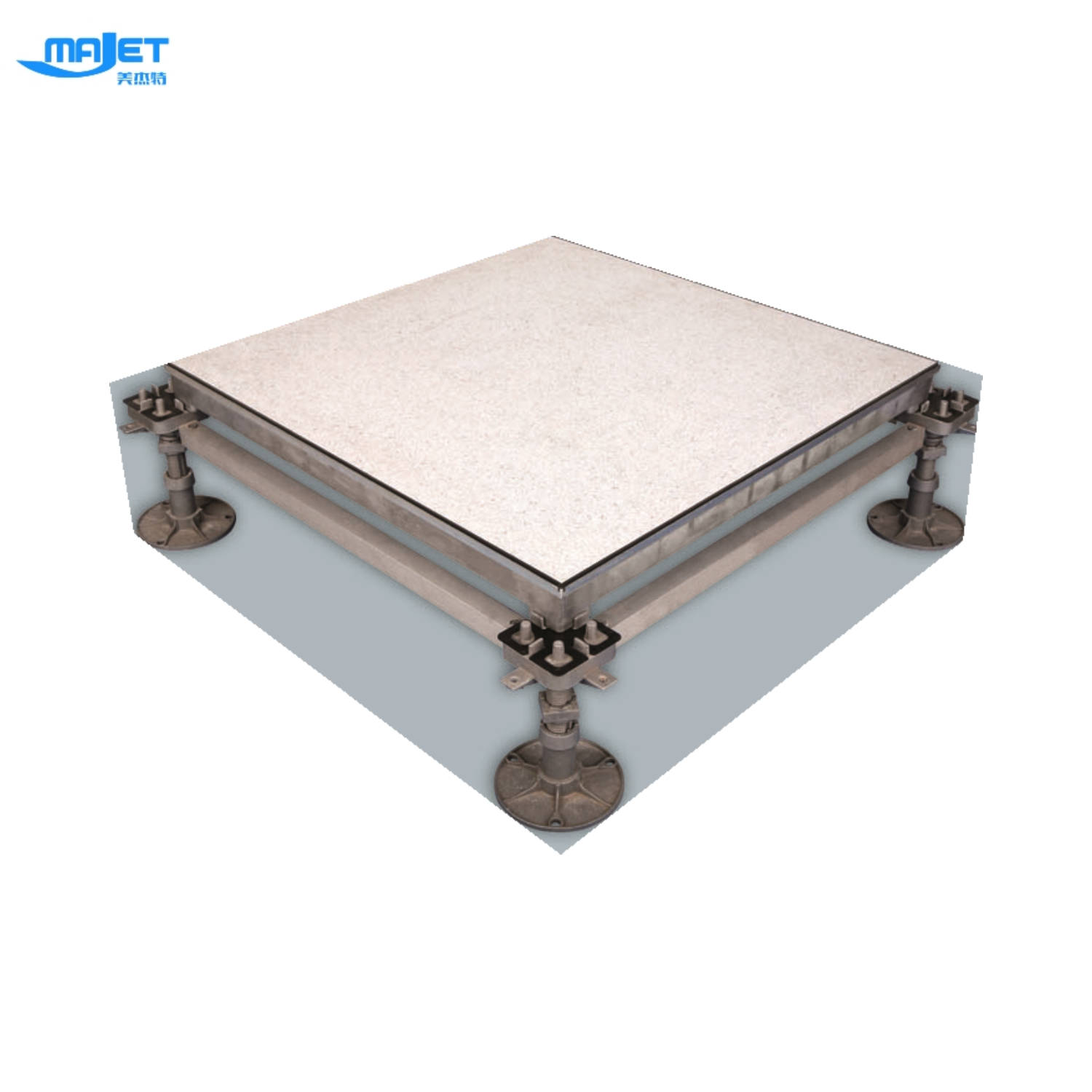

Suitable for:
High-tech environments
Lightweight performance
Corrosion resistance
Perforated and grated panels are critical for cooling optimization.
Selecting the right airflow percentage is essential.
The data center industry continues evolving.
Smart systems now adjust airflow automatically.
High-density server environments increasingly adopt liquid cooling.
Many facilities combine:
Raised floor airflow
Overhead cooling
Containment systems
Hybrid strategies improve efficiency.
Raised floor cooling remains one of the most effective ways to manage airflow in data centers.
By distributing cold air beneath the floor and delivering it directly to server racks, raised access flooring improves cooling efficiency, cable management, and operational reliability.
However, performance depends on proper airflow planning, perforated panel placement, hot aisle/cold aisle design, and regular maintenance.
For organizations planning a new facility or upgrading an existing one, investing in a well-designed raised floor cooling system can significantly improve long-term energy efficiency and equipment protection.
Raised floor cooling works by delivering cold air through an underfloor plenum created by raised access flooring. Cooling systems push air beneath the floor, and perforated panels direct it toward server racks.
Data centers use raised floors for cooling airflow, cable management, maintenance access, and infrastructure flexibility.
Most data centers use raised floor heights between 450 mm and 1200 mm, depending on airflow requirements and equipment density.
Perforated panels are specialized raised floor tiles with airflow openings that allow cool air to reach server equipment.
Raised floor cooling works well for many traditional data centers, while overhead cooling can perform better in ultra-high-density environments. Some facilities combine both methods.
