Modern raised access floor systems are designed to support much more than removable floor panels. They carry servers, cooling equipment, power cables, communication networks, and heavy office furniture while maintaining long-term structural stability. One critical but often overlooked component that ensures this performance is raised floor bracing.
Whether you're designing a data center, cleanroom, command center, or commercial office, understanding how a raised floor bracing system works can help improve safety, reduce maintenance, and increase the lifespan of the entire floor system.
This guide explains everything you need to know about bracing for raised floor systems, including when it is required, different types, installation methods, design recommendations, and how to choose a reliable manufacturer.
Raised floor bracing refers to structural reinforcement components installed between pedestals to increase the rigidity and stability of a raised access floor system.
Unlike floor panels that primarily support vertical loads, bracing helps the pedestal structure resist:
Lateral movement
Vibration
Horizontal forces
Dynamic loading
Seismic activity
Accidental impacts
Without proper bracing, tall pedestal systems may sway or shift over time, reducing system stability and potentially affecting equipment installed above the floor.
A typical raised floor bracing system may include:
Horizontal stringers
Cross braces
Diagonal braces
Steel reinforcement bars
Seismic restraint assemblies
Together, these components create a stronger framework that distributes loads more evenly across the pedestal grid.
Bracing is essential for maintaining the structural integrity of raised floor systems, especially in demanding environments.
Pedestals are designed to carry vertical loads efficiently, but without lateral reinforcement they can move sideways under external forces.
Bracing locks adjacent pedestals together, greatly reducing horizontal displacement.
As floor height increases, pedestal slenderness also increases.
A well-designed bracing system minimizes:
Pedestal deflection
Floor vibration
Panel movement
Structural deformation
The result is a noticeably more stable walking surface.
Many data centers require floor heights between 600 mm and 1500 mm to accommodate airflow and cable routing.
At these heights, pedestal bracing becomes increasingly important to maintain system rigidity.
In earthquake-prone regions, seismic forces generate significant horizontal loads.
Properly engineered seismic bracing helps the raised floor system remain stable during seismic events and reduces the risk of structural failure.
Stable pedestal systems experience less movement over time, which means:
Fewer loose panels
Less pedestal adjustment
Reduced vibration-related wear
Lower maintenance costs
Although not every installation requires additional bracing, it becomes highly recommended or mandatory under certain conditions.
Once pedestal height exceeds approximately 600 mm, horizontal stability decreases significantly.
Most manufacturers recommend adding stringers or cross bracing for improved rigidity.
Server rooms contain expensive IT equipment and require highly stable flooring.
Bracing helps support:
Heavy server racks
Cooling systems
UPS equipment
Cable management infrastructure
Control centers operate continuously and cannot tolerate excessive floor movement.
Bracing provides the stability required for mission-critical environments.
Cleanroom floors often support precision manufacturing equipment where even small vibrations may affect production accuracy.
Bracing minimizes unwanted movement.
Areas containing storage systems, industrial equipment, or battery cabinets benefit from reinforced pedestal systems that better resist concentrated loads and dynamic forces.
Projects located in seismic zones often require engineered bracing systems that comply with local building regulations and structural design requirements.
Different applications require different reinforcement methods.
Bracing Type | Best For | Stability | Cost | Installation Difficulty |
|---|---|---|---|---|
Horizontal Stringers | Standard offices | Medium | Low | Easy |
Cross Bracing | Tall pedestal systems | High | Medium | Medium |
Diagonal Steel Bracing | High-load installations | Very High | Medium | Moderate |
Seismic Bracing | Earthquake regions | Excellent | Higher | Complex |
Custom Reinforcement Systems | Data centers & industrial projects | Maximum | Project-dependent | Professional |

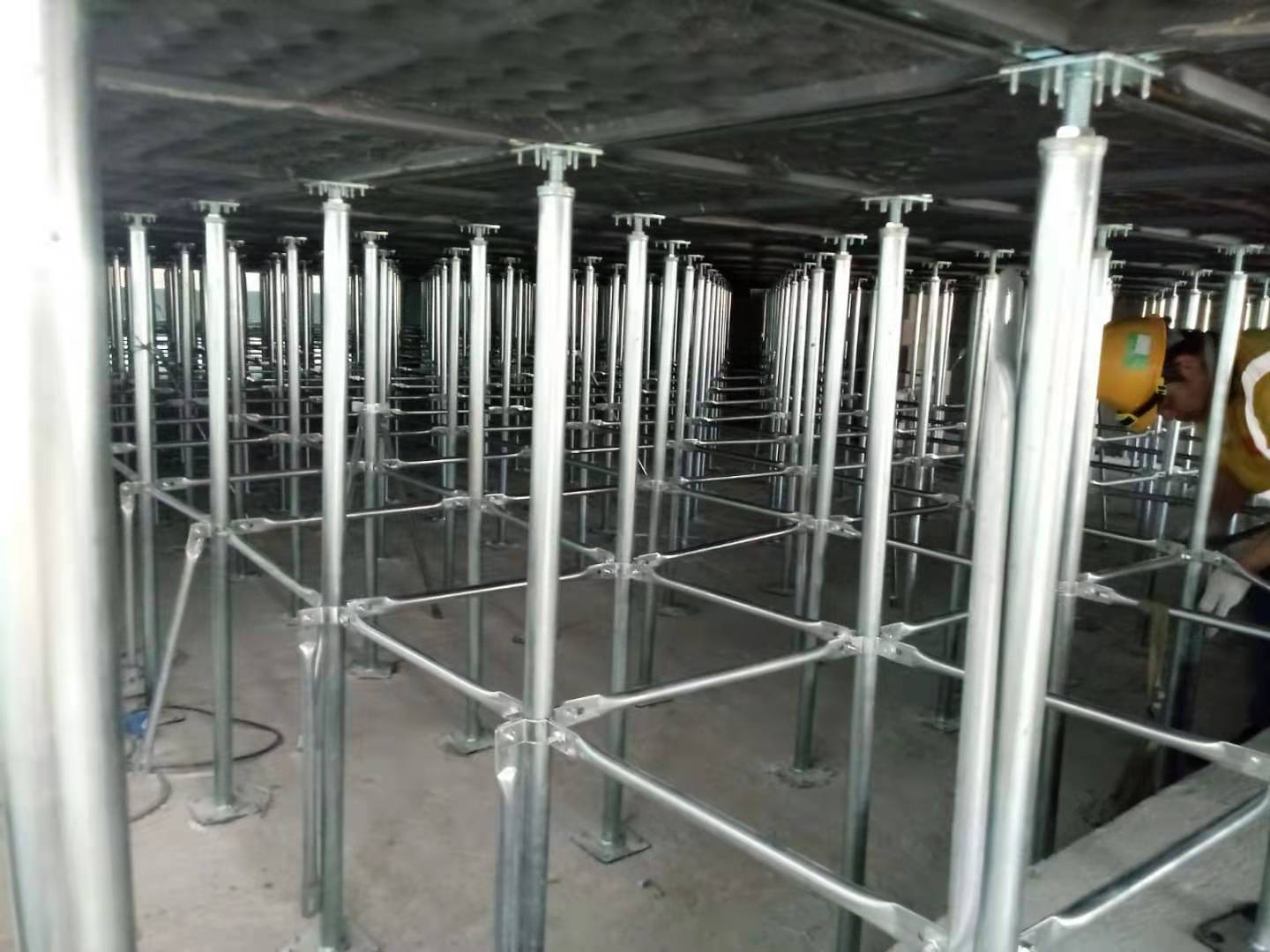

The most common reinforcement method.
Stringers connect adjacent pedestals to improve lateral stiffness while also helping support panel edges.

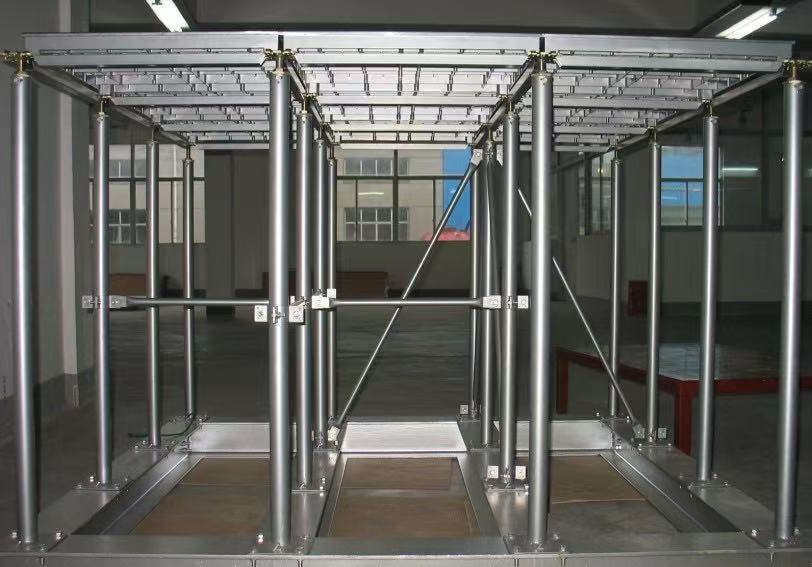

Cross braces connect pedestals diagonally to increase structural rigidity.
This design is especially effective for taller floor systems.

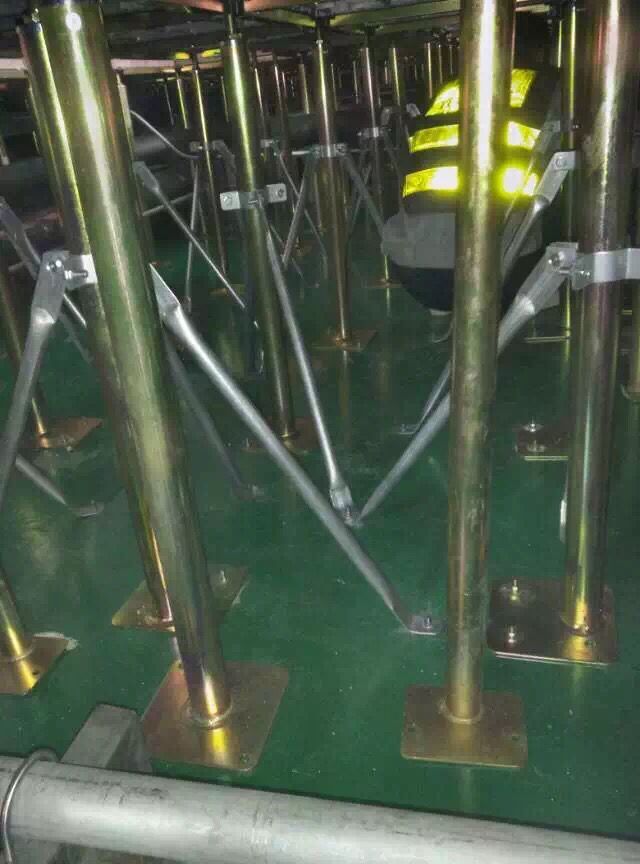

Steel diagonal braces create triangulated support structures that significantly improve resistance to horizontal forces.
Seismic systems are specially engineered to absorb earthquake-induced movement while maintaining floor integrity.
These systems often include additional anchors and reinforced connections.
Large-scale industrial and hyperscale data center projects often require project-specific bracing layouts designed according to load calculations and structural analysis.
A common misconception is that bracing increases the rated load capacity of the floor panel itself.
In reality, panel load ratings are determined by panel construction and testing standards.
However, bracing significantly improves the overall performance of the raised floor system by:
Increasing system rigidity
Improving lateral resistance
Enhancing dynamic load performance
Reducing pedestal movement
Improving equipment stability
Distributing forces more evenly throughout the support structure
This means the floor system performs more reliably under real-world operating conditions, particularly where rolling loads, vibration, or frequent maintenance traffic are present.
Proper design is just as important as selecting the right components.
Bracing intervals should be determined according to:
Floor height
Design load
Equipment weight
Project specifications
Manufacturer recommendations
As pedestal height increases, additional lateral support becomes necessary to prevent instability.
Higher systems generally require closer bracing intervals.
Common materials include:
Galvanized steel
Powder-coated steel
Stainless steel (for corrosive environments)
Material selection should match the installation environment.
Reliable bolted or mechanically fastened connections provide better long-term performance than loosely fitted components.
Proper torque values should always be followed during installation.
For humid or coastal environments, corrosion-resistant finishes help extend the service life of the bracing system.
Correct installation ensures that the designed structural performance is achieved.
Verify floor elevations and pedestal spacing before installing any reinforcement.
Secure horizontal stringers between adjacent pedestals using the recommended fasteners.
Install diagonal or cross braces where specified in the project drawings.
Check that every bolt and fastener is tightened according to the manufacturer's specifications.
Loose connections reduce structural performance.
After reinforcement is complete, confirm that the entire floor remains level.
Adjust pedestal heights if necessary.
Inspect:
Pedestal alignment
Bracing connections
Panel seating
Floor stability
Overall workmanship
A comprehensive inspection helps ensure long-term reliability.
Different industries have different structural requirements.
Data centers benefit from reinforced systems capable of supporting:
High-density server racks
Cooling infrastructure
Heavy cable trays
Continuous maintenance traffic
Most office installations use stringers for basic reinforcement, particularly where pedestal heights are moderate.
Mission-critical facilities require enhanced rigidity to maintain stable work environments around sensitive monitoring equipment.
Research laboratories often require vibration reduction to protect precision instruments.
Bracing contributes to improved operational stability.
Manufacturing plants may require customized reinforcement systems to support heavy machinery and dynamic loading conditions.
Avoid these common installation errors:
Installing bracing only around the perimeter
Using incorrect bolt torque
Omitting diagonal braces on tall pedestal systems
Ignoring local seismic design requirements
Mixing incompatible components from different systems
Failing to verify pedestal alignment before installing panels
Proper planning and installation can prevent costly repairs later.
Not necessarily.
The need for bracing depends on floor height, application, loading conditions, and local regulations.
Installation Condition | Bracing Recommendation |
|---|---|
Height below 300 mm | Usually not required |
Height 300–600 mm | Optional depending on application |
Height above 600 mm | Recommended |
Height above 1000 mm | Strongly recommended |
Data Centers | Yes |
Heavy Equipment Rooms | Yes |
Seismic Areas | Yes |
Consult the raised floor manufacturer during the design stage to determine the most appropriate reinforcement strategy for your project.
Selecting the right supplier is as important as choosing the correct bracing design.
Look for manufacturers that offer:
Professional structural recommendations based on project requirements rather than generic solutions.
Manufacturers should perform load and system performance testing to verify structural reliability.
Every project is different.
An experienced supplier should be able to customize pedestal heights, bracing layouts, and reinforcement systems for specific applications.
Choose manufacturers with successful installations in:
Data centers
Cleanrooms
Airports
Commercial buildings
Industrial facilities
International projects require suppliers familiar with export packaging, documentation, logistics, and technical support.
Reliable manufacturers provide:
CAD drawings
Installation manuals
Load test reports
Material specifications
Maintenance guidelines
Comprehensive documentation simplifies project planning and installation.
Bracing increases the lateral stability and rigidity of the raised floor support structure, helping prevent movement, vibration, and structural instability.
Bracing does not significantly increase the rated concentrated load of individual panels. Instead, it improves the stability and overall performance of the complete raised floor system.
Many manufacturers recommend bracing once pedestal heights exceed approximately 600 mm, although project-specific requirements may vary.
In earthquake-prone regions, seismic bracing may be required to comply with local building codes and engineering specifications.
Yes. Many existing systems can be upgraded with additional stringers or bracing, provided the pedestal design is compatible and the structure is evaluated beforehand.
Galvanized steel is the most common choice because it offers an excellent balance of strength, durability, and corrosion resistance. Stainless steel is preferred in highly corrosive environments.
A visual inspection is recommended during routine raised floor maintenance, especially after equipment relocation, renovation work, or seismic events. Fasteners and connections should be checked for tightness and signs of corrosion.
While the complete raised floor system is often evaluated under standards such as EN 12825 or CISCA recommendations, the specific bracing design should also comply with applicable local structural and seismic building codes.
