MAJET
Steel
SC668,SC800,SC1000,SC1250,SC1500,SC2000,SC2500
7308900000
600x600x35mm,610x610x35mm
≤FFH100mm,FFH150mm,FFH200mm,FFH300mm,FFH500mm,FFH600mm,FFH800mm,FFH1000mm,FFH1500mm,FFH2000mm
Office,Data center,Cleanroom Environments,Educational Institutions
SGS,CISCA,EN12825,ISO9001
CHINA
Wooden Pallet
| Quantity: | |
|---|---|
Product Description

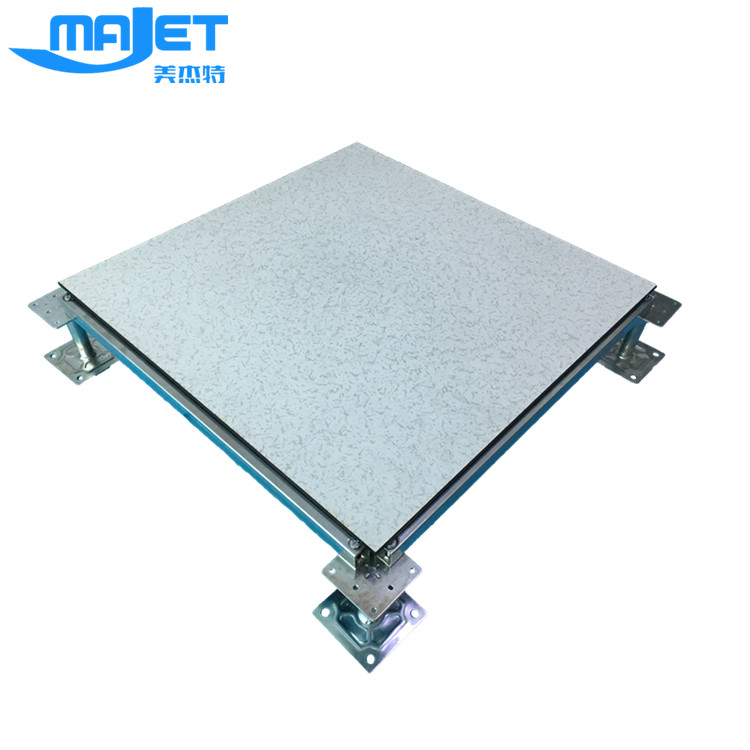

Laminated steel raised floor panel is made of steel plate, top to be SPCC material, bottom to be ST14 material,with light cement-filled inside, HPL/PVC/ceramic finished on the surface, and conductive strip plated on all edges.
Type | Size | Concentrated | Impact Load | Ultimate Load | Uniform Load | Rolling Load/N | |||
International | mm | LB | N | KG | N | N | N/M2 | 10000Times | |
10Times | |||||||||
SC668 | 600*600*35 | ≥672 | ≥2990 | ≥233 | 670 | ≥8890 | ≥12500 | 2215 | 1548 |
SC800 | 600*600*35 | ≥809 | ≥3596 | ≥366 | 670 | ≥10799 | ≥19796 | 2959 | 2215 |
600*600*35 | |||||||||
610*610*35 | |||||||||
SC1000 | 600*600*35 | ≥1012 | ≥4498 | ≥458 | 670 | ≥13494 | ≥23294 | 3596 | 2959 |
610*610*35 | |||||||||
SC1250 | 600*600*35 | ≥1258 | ≥5595 | ≥570 | 670 | ≥16797 | ≥33084 | 4498 | 3596 |
610*610*35 | |||||||||
SC1500 | 600*600*35 | ≥1505 | ≥6693 | ≥682 | 670 | ≥20090 | ≥42581 | 5595 | 4498 |
610*610*35 | |||||||||
SC2000 | 600*600*35 | ≥2002 | ≥8898 | ≥907 | 670 | ≥26685 | ≥49784 | 6693 | 5595 |
610*610*35 | |||||||||
SC2500 | 600*600*35 | ≥2495 | ≥11093 | ≥1131 | 670 | ≥33290 | ≥58280 | 8898 | 6693 |
610*610*35 | |||||||||
1.HPL
2.PVC

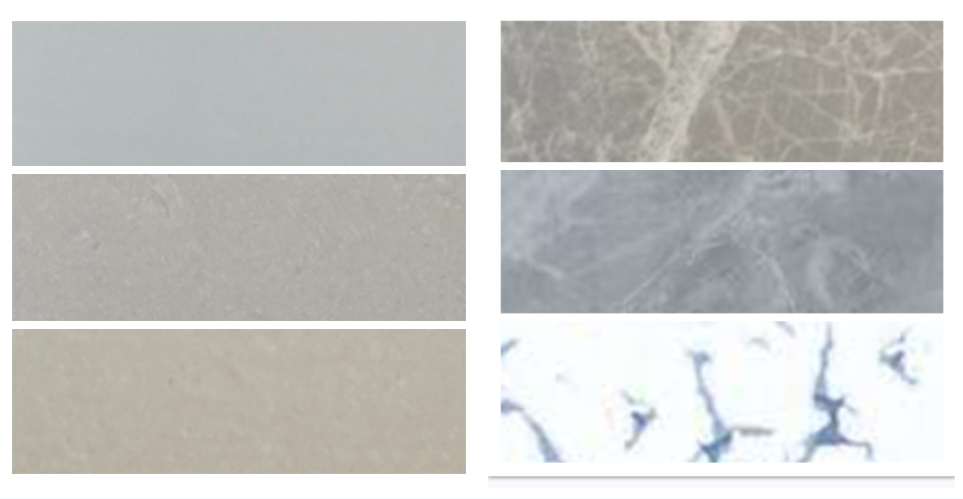

3.Ceramic
Installing raised floors involves a systematic approach to ensure stability and functionality. The process includes preparing the subfloor, assembling the support structure, and securing the panels in place.
Ensure the subfloor is clean, level, and free from debris.
Construct the support grid according to the design specifications.
Secure the panels onto the grid, ensuring a snug fit.
Complete the installation with trim and edge pieces for a polished look.
Raised floor cutting machine
Raised floor leveling
Raised floor electrical screwdriver
Raised floor hammer
Process:Cutting-forming-welding-phosphating and spraying-filling cement-drying-laminated tiles
In modern office design, raised floors contribute to a clean and organized appearance while accommodating the complex wiring systems necessary for today's technology-driven workplaces.
Data centers rely on raised floors to manage the extensive cabling required for servers and networking equipment. The improved airflow also helps in maintaining optimal temperatures for electronic components.
Industries with stringent cleanliness requirements, such as pharmaceuticals and biotechnology, utilize raised floors to create controlled environments free from dust and contaminants.
Schools and universities leverage the flexibility of raised floors to accommodate evolving technologies in classrooms and laboratories.
| Performance | Steel cement raised floor panel | Steel hollow raised floor panel | Woodcore raised floor panel | Calcium sulphate raised floor panel | Aluminum raised floor panel | |
|---|---|---|---|---|---|---|
| Ultimate load | A | B | C | D | E | |
| Overload protection | A | B | C | D | E | |
| Fire rating | A | B | E | A | E | |
| Panel size | B | B | B | B | A | |
| Panel weight (bare finish) | C | A | A | E | A | |
| Bare panel sound insulation | C | C | B | A | E | |
| Walking feeling | A | B | A | A | B | |
| Recycled content | B | B | D | A | E | |
| Support for Green building certificate | B | B | D | A | E | |
| Cost efficiency | A | D | D | B | E | |
| Cutting ease and cost | B | A | A | E | C | |
| Application | Office | A | B | A | A | E |
| Data center | A | B | D | B | B | |
| Education | A | D | A | B | E | |
| Casino | A | E | D | A | B | |
| Industrial cleanroom | B | E | E | E | A | |
| Library | A | C | B | A | E |
Comparison of Different Raised Access Floor Panel.pdfMAJET raised floor is a leading manufacturer and exporter in China, supplying raised floor system, data center products, underfloor air conditioning and underfloor wiring. We have over 60,000 square meters plant and 200 workers and over 35 years experience in industry.
MAJET RAISED FLOOR CALTALOGUE2023.pdf
One of the primary benefits of raised floors is the enhanced airflow and ventilation they offer. This is particularly crucial in environments with sensitive electronic equipment, such as data centers.
Raised floors provide a concealed space for the installation and maintenance of cabling, electrical wiring, and plumbing. This accessibility simplifies upgrades and repairs, reducing downtime.
The modular nature of raised floors allows for easy reconfiguration of interior spaces. This adaptability is especially valuable in office settings where layouts may need frequent adjustments.
In order to get better use results and extend the service life of the raised floor, correct daily cleaning and maintenance are important.
Provided by the raised floor manufacturer and follow them. Floors made of different materials may have different maintenance methods.
Placing floor mats at the door of the room can effectively reduce dust and debris from being brought into the room, reducing the frequency of cleaning of the raised floor.
If possible, you can use protective tools such as shoe covers to reduce dust and debris and reduce the scratching of the soles on the floor. Especially helpful for the maintenance of PVC veneer.
Please do not place particularly heavy furniture or equipment directly on the raised floor. You can use a load-bearing base to distribute the weight, or use other means of proper load distribution.
During use, the raised floor needs to be cleaned regularly depending on the use environment. You can use a soft-bristled brush or vacuum cleaner to remove dust and debris from the surface to reduce particles from repeatedly scratching the floor.
When necessary, the floor needs to be deep cleaned to remove stubborn stains. Be careful not to use harsh chemicals or abrasive cleaners as they can cause damage to the floor. It is recommended to use professional floor cleaners.
When the floor uses an anti-static finish, its anti-static performance needs to be tested regularly.
If the raised floor is used in an area prone to leaks or spills, please check regularly for leaks. Water can cause damage to the raised floor and supporting structures, so leaks need to be resolved promptly.
Regularly check the situation of your raised floor. If there is damage, such as loose tiles, damaged edges or corrosion of accessories, it needs to be repaired in time. If it cannot be repaired, please replace the bad parts.
One of the primary reasons architects and builders are turning to steel raised floors is their unparalleled flexibility. These floors allow for easy customization to meet the specific needs of a space, making them ideal for environments with evolving requirements, such as office spaces.
The space beneath steel raised floors, known as the plenum, serves as a concealed pathway for cables, electrical wiring, and ventilation systems. This not only streamlines the aesthetic appeal of the space but also facilitates easy access for maintenance and upgrades, minimizing downtime.
Steel raised floors contribute to better indoor air quality by promoting efficient air circulation. The plenum acts as a channel for air movement, reducing the risk of stagnant air and fostering a healthier environment, particularly crucial in spaces like data centers.
Whether it's an office, data center, cleanroom, or laboratory, steel raised floors adapt seamlessly to various applications. Their versatility makes them a preferred choice in diverse industries where the need for adaptable and functional spaces is paramount.
In essence, steel raised floors serve as a foundation for innovation in design and functionality, offering a dynamic solution that addresses the evolving demands of modern architecture.
In the fourth part of our series on steel raised floors, we embark on a comparative analysis, pitting these innovative flooring solutions against traditional alternatives. By examining factors such as installation, maintenance, and adaptability, we aim to showcase the distinct advantages that set steel raised floors apart.
When it comes to the installation process, steel raised floors stand out for their speed and efficiency. Traditional flooring methods often involve time-consuming processes, including the curing of adhesives and setting times for materials. In contrast, steel raised floors, with their modular design, can be installed more swiftly, minimizing construction timelines and reducing associated costs.
One of the defining features of steel raised floors is their flexibility and customization capabilities. Traditional flooring methods, such as glued-down carpeting or hardwood, lack the adaptability needed for dynamic environments. Steel raised floors, with their modular panels, allow for easy reconfiguration to meet changing needs, providing a level of versatility unmatched by traditional alternatives.
Maintenance considerations play a crucial role in flooring choices. Traditional flooring, when damaged or requiring maintenance, often involves extensive and intrusive procedures. Steel raised floors, on the other hand, excel in this aspect. The plenum space beneath allows for easy access to underlying infrastructure, simplifying maintenance procedures and reducing downtime.
While the initial cost of steel raised floors may seem higher than some traditional flooring options, it's essential to consider the long-term savings they offer. The efficiency of installation, reduced maintenance costs, and adaptability contribute to a higher return on investment over the life of the building.
In an era where sustainability is a top priority, the environmental impact of flooring choices cannot be overlooked. Traditional flooring materials may involve adhesives and finishes with volatile organic compounds (VOCs), contributing to indoor air pollution. Steel raised floors, with their focus on improved indoor air quality, align with sustainable building practices.
This comparative analysis underscores the distinct advantages of steel raised floors over traditional flooring methods, positioning them as a forward-thinking and practical choice for modern construction and design.
A: 100pieces each type
A:1100-1500pieces,depending on the raised floor type.
A: 30days after receiving the prepayment.
A:packed in wooden pallet,covered with plastic film.
A:T/T,L/C,Western Union.
