After the installation of anti-static raised flooring, its core anti-static performance must be verified through professional and standardized testing. This is crucial not only for the proper operation of equipment but also for ensuring production safety and data reliability. The following is a comprehensive testing guide covering standards, tools, procedures, and key considerations.
Before testing begins, it is essential to clarify the specific standards corresponding to your usage scenario. Different industries and applications have varying levels of strictness regarding electrostatic control.
Typically between 10⁶Ω (1 MΩ) and 10⁹Ω (1 GΩ). This is the core metric for measuring the conductivity of the floor surface.
Typically between 10⁶Ω and 1011Ω. This reflects the conductive properties within the material itself.
The conductive resistance between the flooring system and the building's earth electrode should be less than 10⁹Ω to ensure static electric charges can be quickly and effectively dissipated to the ground.
Some sensitive areas may require a narrower resistance range, such as 10⁶Ω to 10⁸Ω, to provide more precise control over electrostatic discharge.
To do a job well, one must first sharpen their tools. Using professional instruments that comply with international standards is a prerequisite for obtaining reliable data.
Must comply with international electrostatic protection standards such as IEC 61340-2-3 or ANSI/ESD S20.20. This instrument is usually equipped with two separate electrodes or a dual-electrode probe with a built-in standard spacing.
Used to verify the quality of the electrical connection between the floor support system and the earth ground.
Used to calibrate the instrument before testing to ensure accurate readings.
Used to thoroughly clean test points, removing insulating contaminants like dust and oil.
Operators must wear anti-static wrist straps and footwear to prevent human static electricity from interfering with test results.
A Three-Step Method for Comprehensive Verification
Follow a logical sequence from overall to specific, and from surface to system, to ensure no aspect is overlooked.
The ideal testing environment is a temperature of 23±2°C and a relative humidity of 50±5%. Temperature and humidity significantly affect resistance values; recording these parameters is crucial for interpreting results.
Use lint-free cloths moistened with the dedicated cleaner to thoroughly clean and dry the selected test points.
Set the tester to the appropriate range and perform verification and zero calibration using the standard resistance module.
Floor Surface Point-to-Point Resistance Test

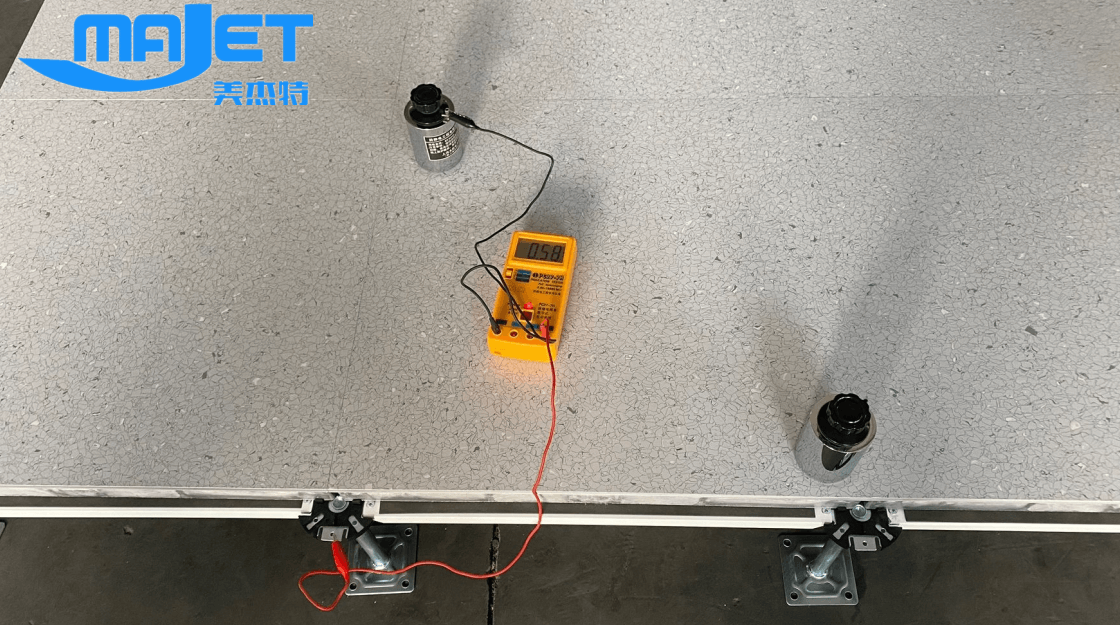

Place the tester's two electrodes (or probe) steadily on the cleaned floor surface according to the instrument's specified spacing (commonly 300mm or 1000mm), and apply the standard test voltage (typically 10V or 100V).
Maintain steady pressure, wait for the value to stabilize (approximately 3-5 seconds), and then record the reading.
Follow statistical sampling principles. It is recommended to select at least one test point per 25 square meters, with a minimum of 4 points for areas smaller than 25m². Key areas (entrances/exits, equipment concentration zones, walkways) should have increased testing density.
Compare the multiple measurement results (typically the average of 3 readings per point) against the standard range.
Using a ground resistance tester, connect one end to a metal component of the floor system (e.g., pedestal, stringer, or dedicated grounding terminal) and the other end to a known, reliable building earth electrode. The measured resistance value should be ≤ 10⁹Ω.
Test the resistance between adjacent floor panels to ensure they are well connected via conductive gaskets or metal connecting strips. This resistance value must also meet the standard requirements.
If the resistance at a single point exceeds the standard, immediately add 3-4 additional test points in a cross or triangular pattern around it to determine if it's a local contamination, damage, or a systemic issue.
If multiple points fail, conduct a systematic check: Has the conductive adhesive failed or not been applied? Is the grounding copper strip/wire broken or loosely connected? Is the contact between the pedestal base and the subfloor good and free of insulating paint?
After all repairs are completed, the affected areas must be re-tested until they comply.
Key Considerations and Maintenance Recommendations
During testing, electrodes must have close, steady contact with the floor surface, avoiding placement on seams or uneven spots. Test personnel should maintain full anti-static protection throughout the process.
Create a traceable test report detailing the test date, environmental temperature/humidity, instrument model, test point location diagram, individual readings, and final conclusion.
Establish a Regular Maintenance Regime: Anti-static performance degrades over time and with use. It is recommended to:
Clean using anti-static dedicated cleaners. Avoid using waxes or ordinary floor polishes.
Perform a comprehensive re-test every 6 to 12 months after installation. Increase testing frequency following periods of high-intensity use or significant environmental changes.
By implementing this systematic testing and maintenance approach, you can ensure that your anti-static raised flooring performs its electrostatic protection function reliably and consistently over the long term, providing dependable protection for your critical facilities.
