How to support the raised floor?

In data centers, commercial buildings and areas that require underfloor air circulation, raised floor are not only a trend, they are a necessity. The functionality of raised floor allows cable, heating, ventilation and air conditioning (HVAC) systems to not only simplify maintenance, but also improve the operational efficiency of the building. Supporting can ensure that raised floors stay better.

Understanding Raised Floor

Definition of raised floor

Raised floor is an elevated floor area upon another floor (typically a concrete slab in buildings). It creates a void used for the passage of mechanical and electrical services.

Purpose of raised floor

The primary reason for installing raised floor is to manage and conceal cables, wiring, and HVAC components, keeping them accessible yet out of sight and mind, ensuring a clean and organized space.

Benefits of Raised Floor

Raised floors of benefits, including improved air circulation, easier access to cables and wires for maintenance, and the flexibility to reconfigure your space as needs evolve without major renovations.

Types of Raised Floor Support Systems

Supporting the raised floor properly means choosing the right support system types.

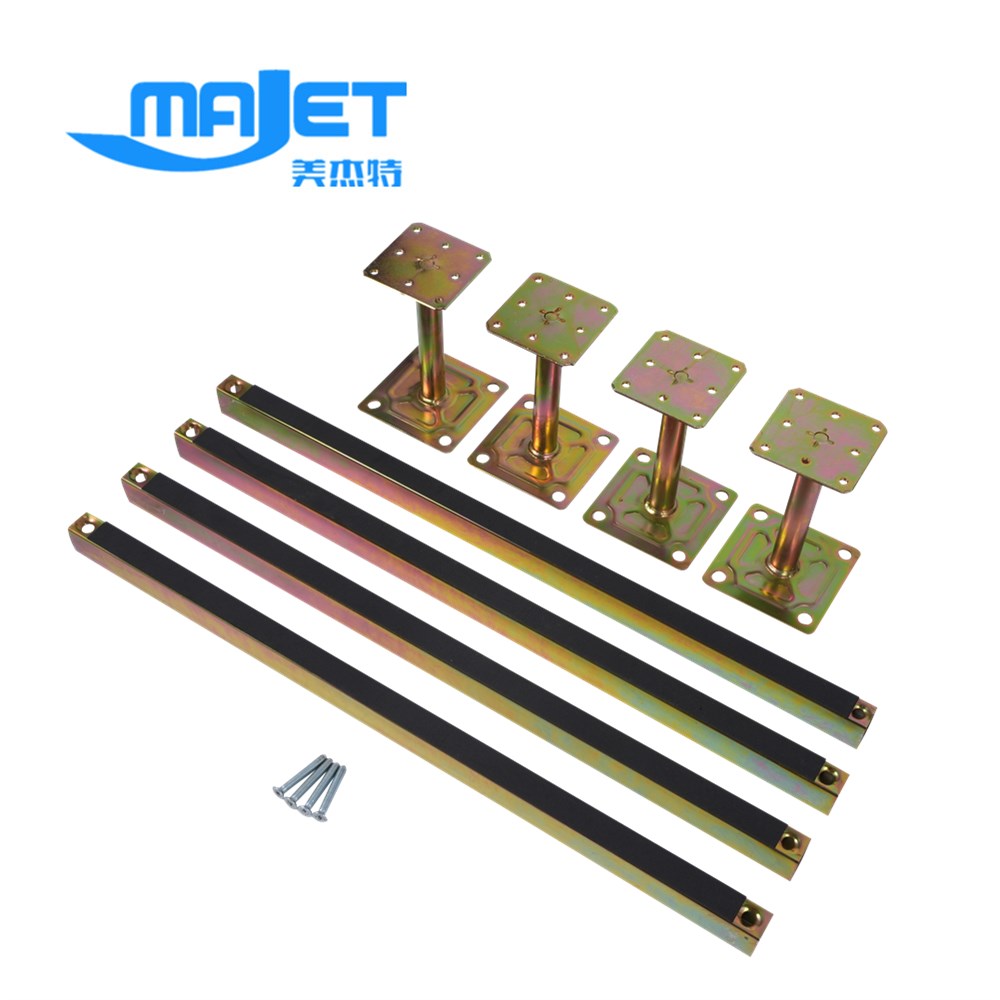

Flat head pedestal and stringer-1

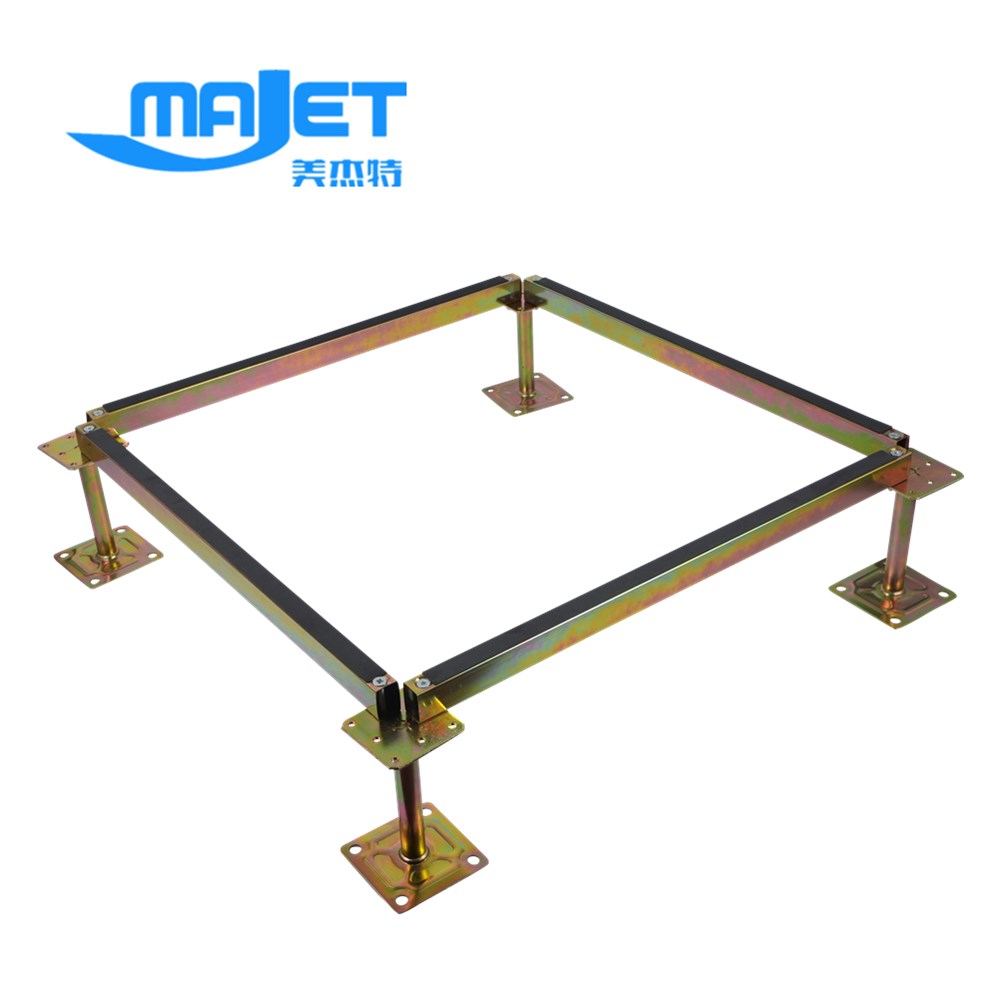

Flat head pedestal and stringer-2

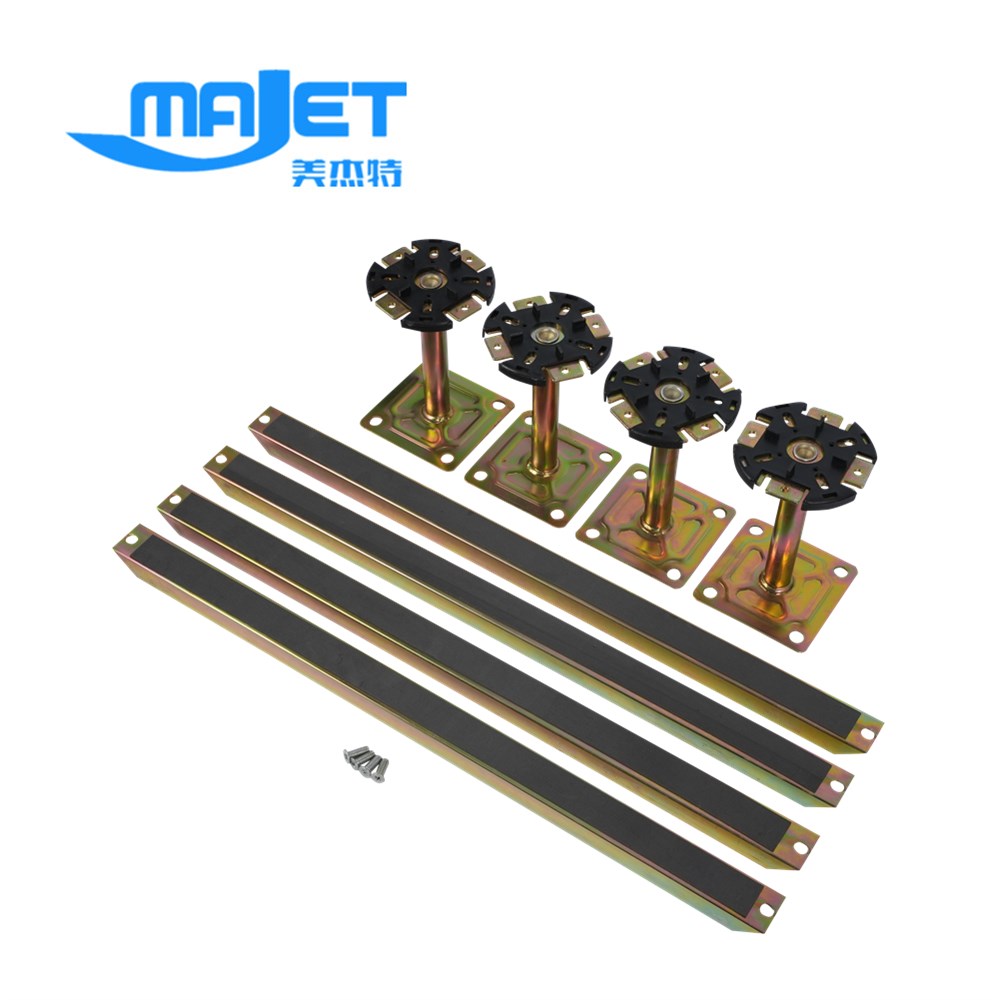

Round head pedestal and stringer-1

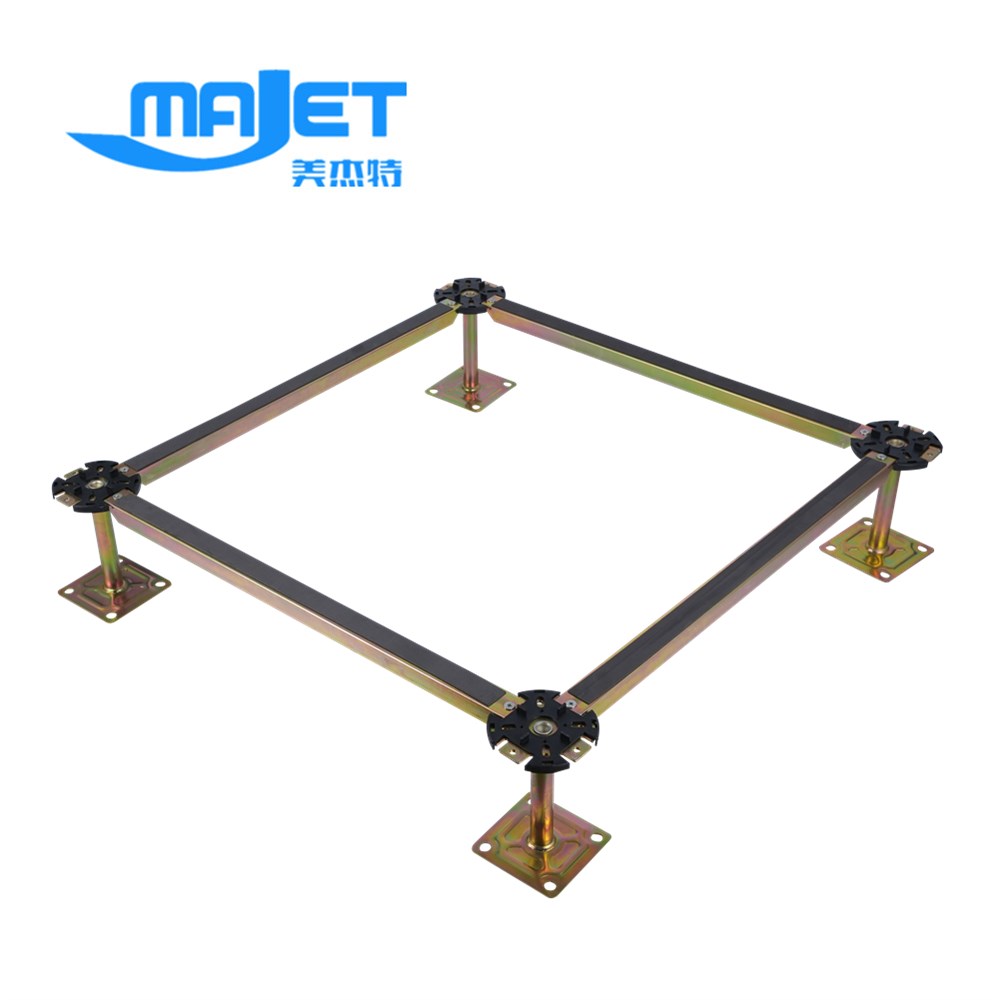

Round head pedesal and stringer-2

Pedestal Systems

This is the backbone of most raised floor systems, consisting of adjustable vertical columns (pedestals) that provide the necessary elevation.

Stringer Systems

These add horizontal support between the pedestals, enhancing the structural integrity and stability of the floor tiles.

Raised Floor Installation Process

Getting your raised floor properly supported involves careful planning and execution.

Planning of raised floor installation

Every successful project starts with a plan. Assess the area, understand the load requirements, and choose a suitable support system.

Materials Needed

You’ll need pedestals or stringers (or both), screws, floor panels, and leveling tools, among other materials.

Steps to Follow

Layout:

Mark the positions where pedestals will be placed.

Installation of Pedestals:

Secure the pedestals to the subfloor, adjusting their height as necessary.

Stringer Attachment (if applicable):

Attach stringers to provide additional support.

Panel Placement:

Lay down the floor panels on the support structure.

Maintenance and Care:

Regular checks and maintenance ensure the longevity and safety of your raised floor. Look out for loose panels or pedestals and rectify any issues promptly.

Raised Floor Support Common Issues and Solutions

From uneven tiles to squeaky floors, issues can arise. Often, these can be fixed by adjusting the pedestals or replacing damaged panels.
