How To Maintain The Stability of Raised Flooring When Using High Pedestals?

Introduction: Why High Pedestal Stability Matters in Raised Floor Systems

Raised access floors are widely used in data centers, control rooms, cleanrooms, offices, and industrial facilities because they create a flexible space for cable management, power distribution, and airflow control.

However, when a raised floor system requires a high installation height, maintaining structural stability becomes more challenging. A standard pedestal system may perform well at low heights, but as the floor height increases, problems such as lateral movement, vibration, reduced load capacity, and panel instability can occur.

So, how can engineers maintain the stability of a raised floor when using high pedestals?

The answer is a combination of:

• Proper pedestal design

• Horizontal bracing systems

• Diagonal bracing support

• Correct installation methods

• Load calculation and testing

This article explains the key factors that ensure a high raised access floor system remains strong, safe, and durable.

1. Why Do High Raised Floors Need Additional Stability Support?

A raised floor system consists of several main components:

• Raised floor panels

• Pedestals

• Stringers or support beams

• Bracing systems

When the floor height increases, the pedestal legs become longer. Similar to a tall building, a higher structure creates a larger lever arm effect, making it more sensitive to horizontal forces.

High pedestal systems may experience:

• Walking vibration

• Equipment movement

• Seismic forces

• Wind pressure (for outdoor applications)

• Heavy equipment loading

• Lateral displacement

For example:

A 200mm raised floor may remain stable with a standard pedestal system, but a 1000mm or higher raised floor requires additional reinforcement to prevent movement.

Therefore, high raised floors cannot rely only on vertical pedestals. A complete structural support system is required.

2. Use Heavy-Duty Pedestals Designed for High Floor Heights

The first step to maintaining stability is selecting the correct pedestal system.

A high pedestal should have:

2.1 Strong Pedestal Base Design

A stable pedestal requires:

• Large base plate area

• High-strength steel construction

• Anti-corrosion treatment

• Secure connection between pedestal head and panel

A wider base plate helps distribute the load and reduces pressure on the subfloor.

2.2 Adjustable Threaded Pedestal Structure

High-quality adjustable pedestals normally include:

• Threaded adjustment rod

• Lock nut system

• Strong pedestal head

• Mechanical locking mechanism

The locking nut prevents height changes caused by vibration or long-term loading.

For data centers and heavy-duty applications, pedestal locking performance is especially important because continuous equipment operation can create vibration.

3. Install Horizontal Stringers to Improve Overall Rigidity

When pedestal height increases, horizontal support becomes essential.

A stringer system connects individual pedestals together, creating a stronger structural grid.

With stringers:

• The load is distributed across multiple pedestals

• The entire floor becomes a connected structure

• Panel movement is reduced

A properly installed stringer system works like the frame structure of a building.

4. Add Diagonal Bracing for High Raised Floor Applications

One of the most effective methods to improve stability is installing diagonal bracing.

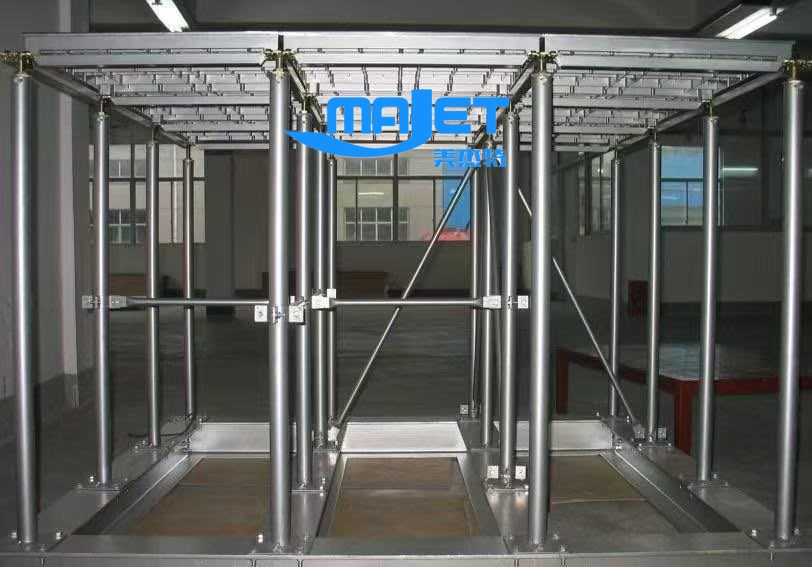

As shown in the reference images, diagonal braces connect the pedestal structure and create a triangular support system.

Why Is Diagonal Bracing Important?

A triangle is one of the most stable structural shapes.

Diagonal braces help:

• Prevent horizontal movement

• Increase lateral strength

• Reduce vibration

• Improve seismic resistance

• Support higher floor heights

For raised floors above approximately 600mm–800mm, diagonal bracing is commonly recommended depending on load requirements and project conditions.

5. Combine Horizontal and Diagonal Bracing for Maximum Stability

For very high raised floor systems, using only one type of reinforcement may not be enough.

The best solution is often a combination of:

Horizontal Bracing

Purpose:

• Connect pedestals together

• Improve grid stability

• Support floor panels

Diagonal Bracing

Purpose:

• Resist horizontal forces

• Prevent structural deformation

• Improve overall rigidity

Together, they create a three-dimensional support structure.

A high raised floor with:

✅ Heavy-duty pedestals
✅ Stringers
✅ Cross braces
✅ Diagonal supports

can achieve significantly better stability compared with a traditional pedestal-only system.

6. Correct Installation Method Is Critical for High Pedestal Stability

Even a high-quality raised floor system can become unstable if installation is incorrect.

Important installation steps include:

6.1 Verify Subfloor Conditions

Before installation:

• Check concrete flatness

• Remove dust and debris

• Confirm floor strength

• Mark pedestal positions accurately

An uneven subfloor can cause uneven loading between pedestals.

6.2 Fix Pedestal Locations Properly

For high pedestal systems:

• Pedestals should be installed according to the designed grid

• Base plates should have full contact with the ground

• Adhesive or mechanical fixing should be used when required

6.3 Lock Pedestal Heights After Adjustment

After leveling:

• Tighten lock nuts

• Confirm pedestal height

• Check alignment before installing panels

Loose adjustment components can create long-term movement.

7. Consider Load Requirements Before Selecting a High Pedestal System

High raised floors are often installed in areas with heavy equipment.

Examples include:

• Data centers

• Server rooms

• Electrical rooms

• Industrial control rooms

Engineers should evaluate:

Concentrated Load

The maximum force applied at a single point.

Examples:

• Server cabinet feet

• Equipment wheels

• Machine supports

Uniform Load

The evenly distributed weight across the floor area.

Examples:

• Raised floor panels

• Office furniture

• Storage areas

A stable high pedestal system must be designed according to both loading conditions.

8. Avoid Common Mistakes When Installing High Raised Floors

Mistake 1: Using Standard Pedestals for Excessive Heights

A low-height pedestal design may not provide enough rigidity for tall installations.

Solution:

Use heavy-duty pedestals with reinforced structures.

Mistake 2: Installing Without Bracing

High pedestal systems without bracing may experience:

• Floor movement

• Noise

• Vibration

• Reduced lifespan

Solution:

Add stringers and diagonal bracing according to project height.

Mistake 3: Ignoring Lateral Loads

Many projects only consider vertical loading.

However, horizontal forces can significantly affect high floors.

Solution:

Evaluate:

• Seismic requirements

• Equipment vibration

• Human traffic

• Maintenance activities

9. Applications Where High Stable Raised Floors Are Required

High pedestal raised floor systems are commonly used in:

Data Centers

Benefits:

• Large underfloor space for cables

• Improved airflow management

• Easier maintenance

Cleanrooms

Benefits:

• Hidden utility routing

• Easy equipment layout changes

• Better environmental control

Industrial Facilities

Benefits:

• Supports heavy equipment

• Provides flexible infrastructure

Outdoor Decking and Terrace Systems

High adjustable pedestal systems require additional reinforcement because of:

• Wind forces

• Temperature changes

• Outdoor exposure

10. How MAJET Ensures Stability of High Raised Floor Systems

For projects requiring elevated raised floors, MAJET provides engineered solutions including:

• Heavy-duty adjustable pedestals

• Steel stringer systems

• Horizontal bracing

• Diagonal reinforcement systems

• Customized height solutions

By combining structural design and installation experience, MAJET helps customers build raised floor systems that remain stable even at high elevations.

Frequently Asked Questions (FAQ)

Q1: Why does a high raised floor need bracing?

A high raised floor has longer pedestal supports, which increases the possibility of horizontal movement. Bracing connects the structure together and improves stability.

Q2: How high can a raised floor pedestal be installed?

The maximum height depends on:

• Pedestal design

• Load requirements

• Bracing system

• Application environment

For very high installations, reinforced pedestal systems with bracing are recommended.

Q3: Are stringers necessary for high raised floors?

For low-height applications, stringers may not always be required. However, for high raised floors, stringers significantly improve rigidity and load distribution.

Q4: What is the difference between diagonal bracing and horizontal bracing?

Horizontal bracing connects pedestals at the same level, while diagonal bracing prevents side movement by creating triangular reinforcement.

Q5: How can I choose the right high pedestal system for my project?

Consider:

• Required floor height

• Panel type

• Equipment weight

• Load capacity

• Environmental conditions

A professional raised floor manufacturer can recommend the correct structure based on project requirements.

Conclusion: Stability Comes From a Complete Raised Floor Structure

Maintaining stability when using high pedestals is not only about choosing stronger supports. A reliable high raised floor system requires a complete structural approach.

The key factors include:

✔ Heavy-duty adjustable pedestals
✔ Proper stringer systems
✔ Diagonal bracing reinforcement
✔ Correct installation procedures
✔ Load-based engineering design

When these elements work together, high raised flooring can provide long-term stability, safety, and flexibility for demanding applications such as data centers, cleanrooms, and industrial facilities.
