To install a raised floor against a wall, start by measuring the distance between the last full panel and the wall. Cut the raised floor panel to the correct size, place additional pedestals near the wall for support, install the cut panel, and adjust the pedestal height until the floor surface is level with the surrounding panels. Proper leveling and accurate measurements are essential for a professional raised floor installation.
A successful raised floor installation is not only about placing panels in the center of a room. The most challenging part is often installing raised floor panels near walls, corners, and edges.
Incorrect wall-side installation can cause:
Uneven floor surfaces
Weak edge support
Panel movement or vibration
Gaps between panels and walls
Long-term structural problems
Whether you are installing flooring in a data center, office, control room, or cleanroom, understanding the correct raised access flooring installation method near walls ensures better performance and durability.

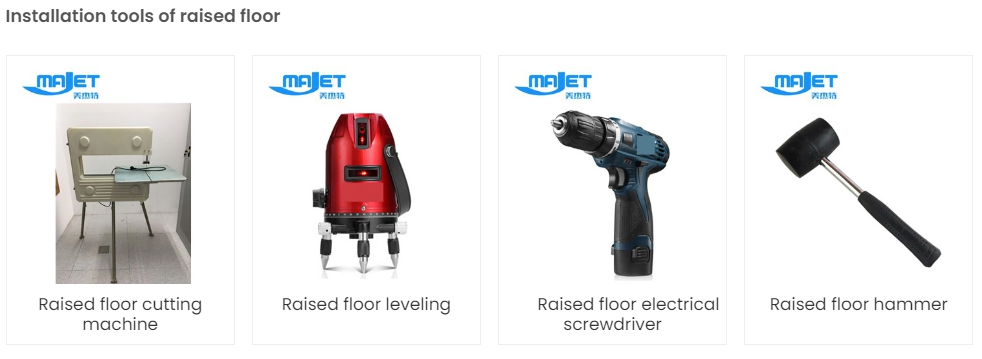

Before beginning the raised floor system installation, prepare all necessary tools.
| Tool | Purpose |
|---|---|
| Laser level or spirit level | Floor leveling |
| Measuring tape | Accurate sizing |
| Chalk line | Layout marking |
| Raised floor suction lifter | Panel handling |
| Panel cutting machine | Cutting edge panels |
| Electric drill | Securing pedestals |
| Adjustable wrench | Pedestal adjustment |
| Rubber hammer | Positioning panels |
| Safety gloves & goggles | Worker protection |
Using proper tools helps reduce installation mistakes and improves accuracy.
Before starting any raised access flooring installation, inspect the concrete subfloor.
The surface should be:
Clean and dust-free
Dry and stable
Free of cracks or major defects
Flat enough for pedestal installation
Any uneven substrate can create future leveling problems.
Remove construction debris.
Repair damaged concrete.
Mark room dimensions and equipment locations.
Check moisture levels if required.
A clean and stable subfloor is the foundation of a successful raised floor system.
Proper planning minimizes excessive cutting near walls.
Most installers start from the room center and work outward to maintain symmetry.
When planning the layout:
Server racks, cabinets, and office furniture should align with panel joints when possible.
Leave enough underfloor space for cables and airflow.
Measure the remaining distance to walls carefully before cutting edge panels.
Accurate planning improves installation efficiency and reduces material waste.
The next stage in raised floor system installation is pedestal placement.
Pedestals support the raised flooring system and maintain structural stability.
Mark pedestal positions.
Fix pedestals to the subfloor.
Install stringers if required.
Pre-adjust height according to design specifications.
Always check alignment using a laser level.
Never assume the subfloor is perfectly flat.
Even slight height variations can affect the final floor performance.
Check every row continuously during installation rather than waiting until the end.
After the pedestal system is ready, begin installing standard floor panels.
Place panels carefully on the pedestal heads.
Use a suction lifter to avoid damaging panel surfaces.
Keep panel joints aligned.
Avoid forcing panels into position.
Check levelness every few rows.
Secure anti-static surfaces from scratches.
This stage forms the main flooring area before reaching wall sections.

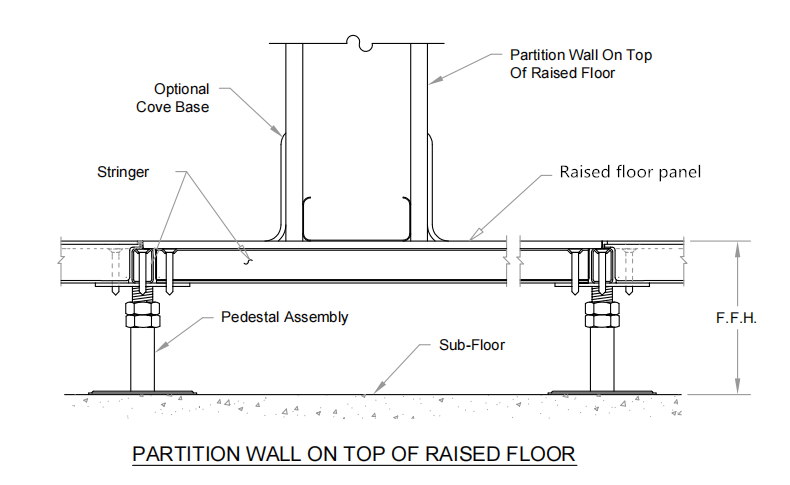

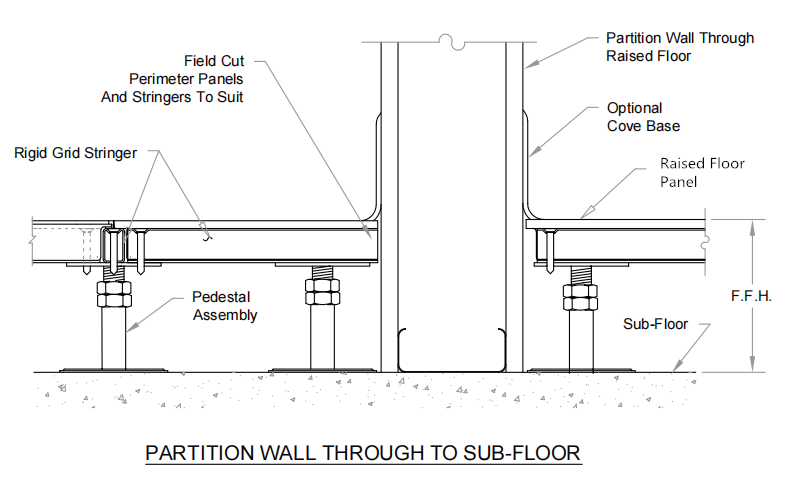

Wall-side installation is one of the most important parts of raised floor installation.
According to the installation method shown in the reference document, the process involves measuring, cutting, pedestal support, and leveling.

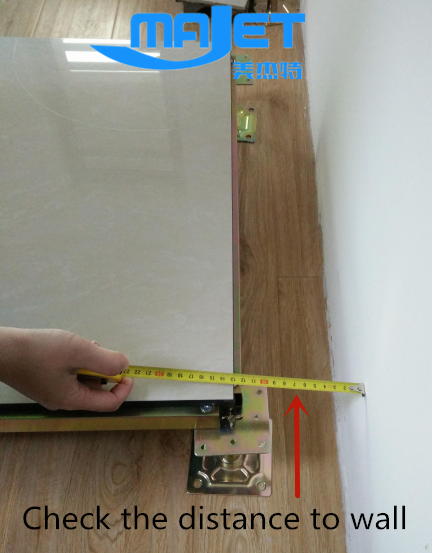

Once standard panels are installed, measure the remaining gap between the final full panel and the wall.
Incorrect measurements can result in:
Visible gaps
Poor fitting
Unstable panels
Material waste
Always measure multiple points because walls are rarely perfectly straight.

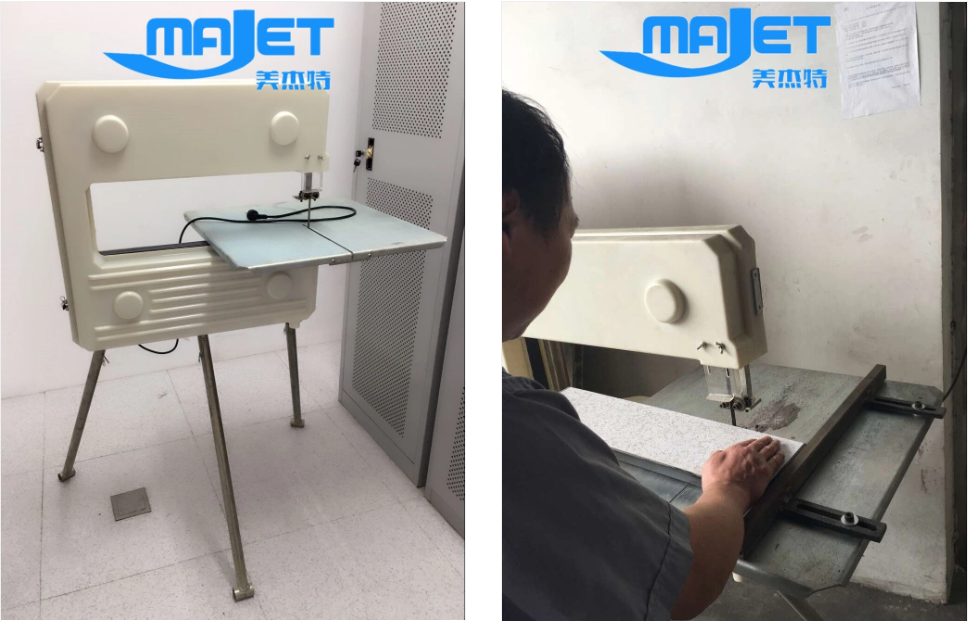

After measuring, cut the panel to the required size.
A raised floor cutting machine provides cleaner and more precise results.
Double-check dimensions before cutting.
Avoid damaging HPL, PVC, or anti-static laminate surfaces during cutting.
Poor cuts can create visible alignment problems.
Precision cutting ensures a professional appearance.
After cutting the raised floor panel to size, proper edge treatment is recommended to improve durability and create a cleaner finish near the wall.
In many raised floor installation projects, especially for calcium sulphate or woodcore raised floor panels, installers apply aluminum foil and self-adhesive EPDM strips to the cut edge.

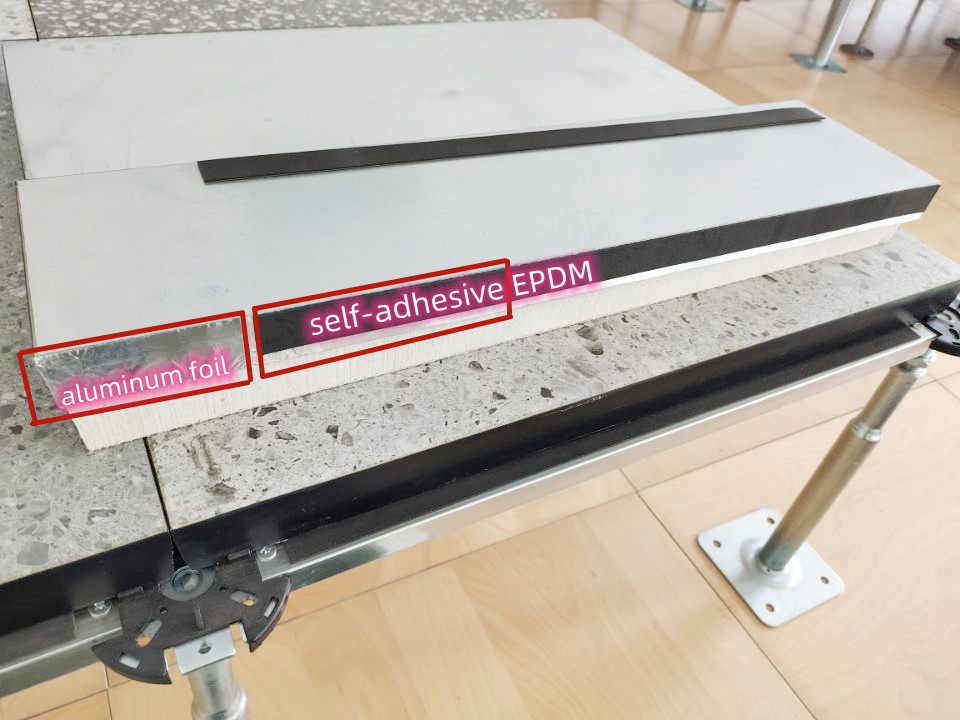

The image above shows two important materials used after panel cutting:
Aluminum foil is applied to the cut surface to help:
Protect the panel core from moisture
Improve edge durability
Maintain a cleaner and more professional finish
Reduce damage during long-term use
This treatment is especially useful in humid environments or commercial projects.
The self-adhesive EPDM strip is commonly applied to the panel edge near the wall.
Its main functions include:
Filling installation gaps between the wall and raised floor panel
Reducing vibration and movement noise
Improving sealing performance
Creating a cleaner edge appearance
During raised access flooring installation, walls are rarely perfectly straight. Small expansion gaps are usually necessary, and EPDM material helps create a neat and professional transition.
Do not leave cut edges exposed.
Proper edge sealing after panel cutting can improve the long-term performance of the raised floor system installation, especially in offices, data centers, and cleanroom applications.
Cut panels still require proper support.

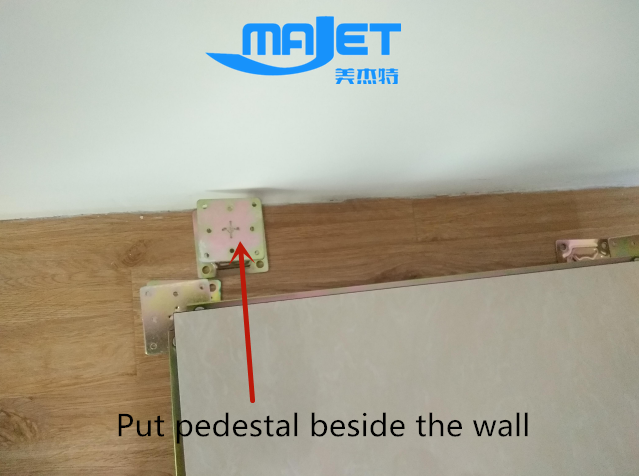

Place additional pedestals beside the wall to support the edge panel. Proper support prevents movement and deflection over time.
Without adequate pedestal support:
Panels may bend
Corners can sink
Floor noise may occur
Load performance decreases
This step is especially important in data centers where heavy equipment loads exist.

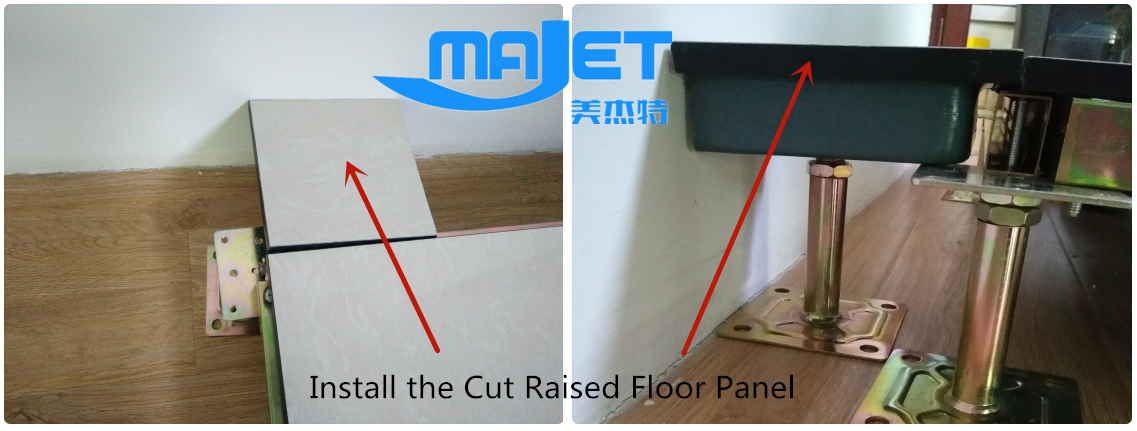

Position the cut panel onto the pedestal system carefully.
Check alignment with surrounding floor panels.
The cut panel should fit tightly while maintaining a clean expansion gap near the wall.
Avoid forcing oversized panels into place.

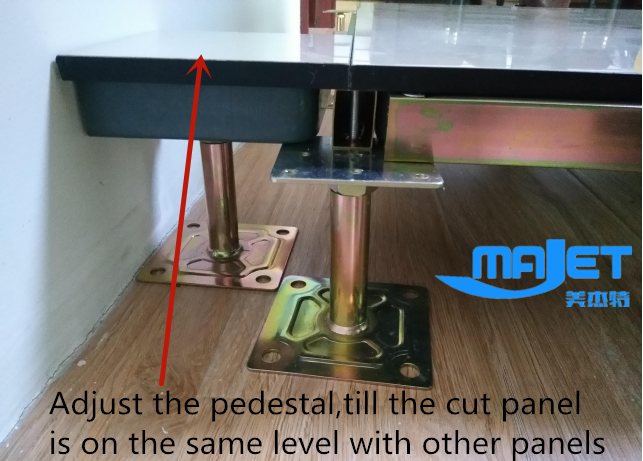

The final step is leveling.
Adjust the pedestal height until the cut panel reaches the same height as surrounding floor panels.
Laser tools improve accuracy significantly.
Inspect corners and transitions carefully.
Excessive adjustment can create instability.
Walk across the floor to ensure there is no movement or noise.
Proper leveling improves appearance and long-term performance.
Even experienced installers can make mistakes.
Here are the most common problems during raised access flooring installation.
Incorrect dimensions lead to badly fitted panels.
Always measure multiple times and account for wall irregularities.
Some installers skip additional pedestals near walls.
Panels may flex or fail under load.
Install enough pedestal support for all cut sections.
Uneven floors affect aesthetics and functionality.
Continuously verify height during installation.
Rough cuts damage appearance and reduce installation quality.
Use professional raised floor cutting equipment.
Bad planning creates unnecessary small cuts along walls.
Start with a proper grid layout before installation.
For a successful raised floor system installation, follow these professional recommendations:
Good preparation saves time and cost.
Strong pedestals and durable panels improve long-term reliability.
An uneven raised floor can create future maintenance issues.
Experienced installers reduce costly mistakes.
Always perform a final inspection before project completion.
In data centers, precision matters.
Poorly installed wall sections can impact:
Equipment stability
Airflow efficiency
Cable management
Structural performance
A professionally installed raised floor system creates safer and more reliable infrastructure.
For high-performance environments, manufacturers like MAJET recommend accurate cutting, proper pedestal support, and consistent leveling during installation.
Measure the remaining wall distance, cut the floor panel, install additional pedestals near the wall, place the cut panel, and adjust pedestal height until level.
Common tools include a laser level, measuring tape, panel cutter, drill, wrench, suction lifter, and safety equipment.
Proper leveling prevents uneven surfaces, improves stability, reduces noise, and ensures long-term performance.
Measure accurately and use a raised floor cutting machine for clean and precise cuts.
Poor wall measurements and insufficient pedestal support are among the most common mistakes.
A successful raised floor installation requires careful planning, accurate measurements, and proper leveling—especially near walls.
By following the correct raised access flooring installation process, including measuring wall distances, cutting panels precisely, adding pedestal support, and adjusting floor height, installers can achieve a durable and professional result.
Whether for offices, data centers, or commercial buildings, proper raised floor system installation improves safety, flexibility, and long-term performance.
