Installing a raised floor for a data center is more than placing floor panels on adjustable pedestals. A properly installed raised access floor must provide stable support for heavy IT equipment, maintain accurate levels, allow easy access to cables and services, and support the facility's cooling and airflow strategy.
A typical installation includes several key stages: site preparation, layout, pedestal installation, leveling, stringer installation, panel installation, cutting and edge treatment, airflow panel placement, grounding, and final inspection.
Whether you are building a new data center or upgrading an existing server room, installation quality can have a direct impact on the long-term performance of the entire flooring system.
This guide explains how to install a data center raised floor step by step and highlights the common mistakes that contractors and installers should avoid.

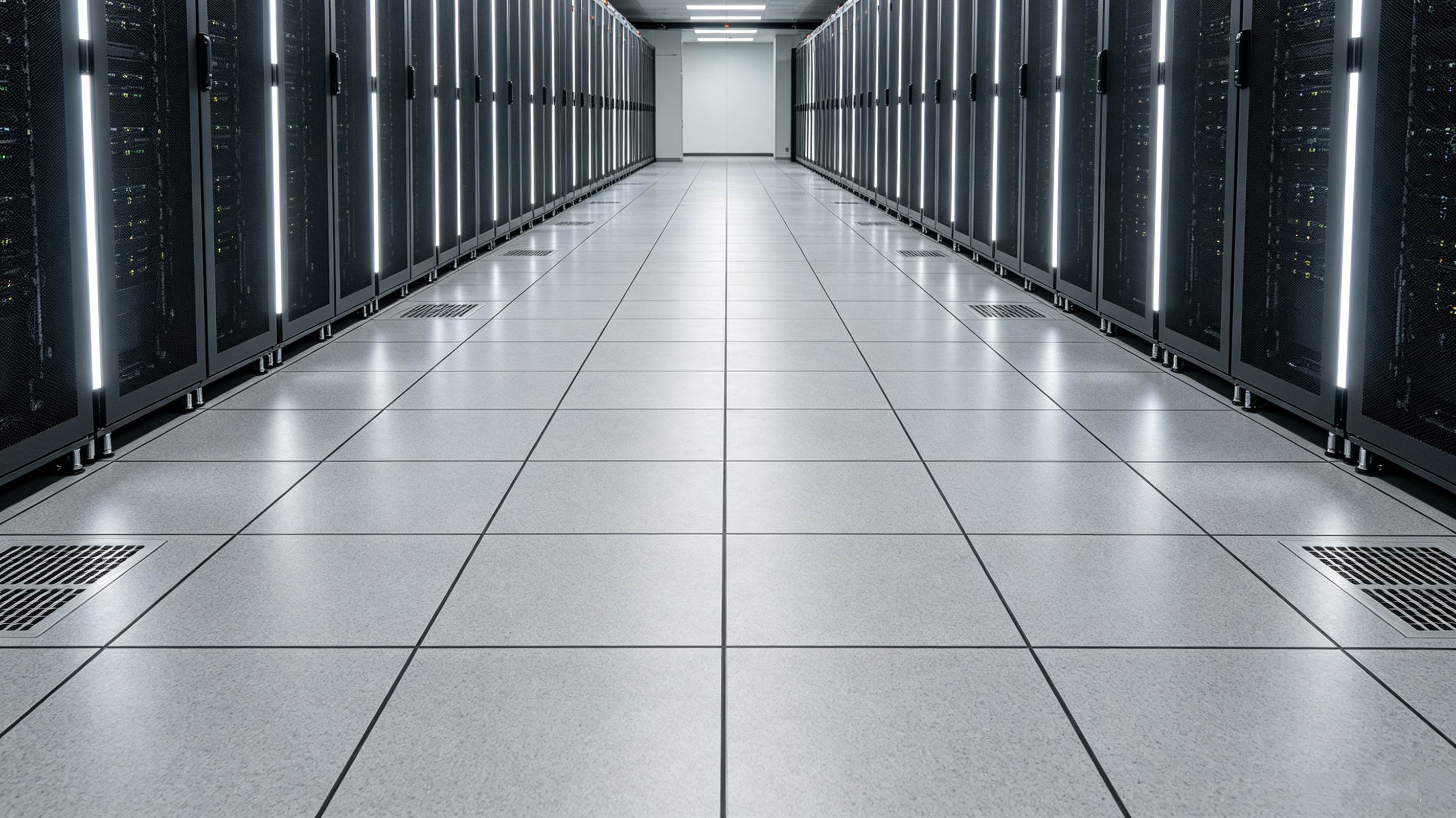

A data center raised floor is an elevated access flooring system installed above the structural concrete slab.
The space between the slab and finished floor is called the underfloor plenum. Depending on the project design, this space can be used for:
Power cables
Data and fiber cables
Communication infrastructure
Grounding
Cooling airflow
Sensors
Other building services
A typical system consists of:
Raised floor panels
Adjustable pedestals
Stringers, where required
Perforated or airflow panels
Cable grommets
Brush grommets
Ramps or steps
Edge trims
Grounding components
The exact configuration should be determined by the project's structural, electrical, fire, cooling, and architectural requirements.
A raised floor can have excellent load capacity on paper and still perform poorly if it is installed incorrectly.
Poor installation can result in:
Uneven panels
Panel rocking
Excessive movement
Misaligned grids
Pedestal instability
Gaps between panels
Damaged floor finishes
Poor airflow distribution
Difficult cable access
Noise during operation
For a data center, these problems are more than cosmetic.
A poorly supported panel under a heavy server rack can create localized stress, while an incorrectly designed or poorly sealed underfloor plenum can reduce cooling efficiency.
The goal is not simply to install a floor. The goal is to create a stable, level, accessible, and serviceable infrastructure platform.
Before installation begins, prepare the required materials and tools.
Depending on the system, you may need:
Raised floor panels
Adjustable pedestals
Pedestal adhesive
Stringers
Perforated airflow panels
Solid panels
Cable grommets
Edge trims
Ramps
Grounding accessories
Typical tools include:
Laser level
Measuring tape
Chalk line
Spirit level
Drill
Impact driver
Torque tools
Panel lifter
Suction-cup floor lifter
Panel cutting machine
Grinder or appropriate cutting equipment
Safety equipment
For data center projects, use the cutting equipment and procedures recommended by the floor manufacturer.
Before installing the raised floor system, inspect the existing concrete slab.
The slab should be:
Clean
Structurally sound
Sufficiently dry
Free of loose debris
Suitable for pedestal installation
Check for:
Cracks
Uneven areas
Moisture problems
Construction debris
Oil or other contaminants
Significant level variations
Do not start pedestal installation before major slab problems have been addressed.
The pedestal transfers the raised floor load directly to the structural slab.
If the slab is contaminated, unstable, or significantly uneven, achieving a stable finished floor becomes much more difficult.
Before fixing anything to the slab, establish the raised floor grid.
Mark:
Starting point
Grid lines
Wall locations
Equipment locations
Racks
Cooling units
Cable routes
Airflow panel locations
Cut-panel areas
A common raised floor panel size is 600 × 600 mm, but the actual panel dimensions should follow the project specification.
This is particularly important around:
Server racks
Hot aisles
Cold aisles
CRAC/CRAH units
Cable penetrations
Electrical equipment
Walls and columns
A raised floor layout should not be developed independently from the mechanical and electrical design.
Set the required finished floor level (FFL) before installing the pedestals.
The required height depends on:
Cable volume
Airflow requirements
Equipment configuration
Building structure
Cooling strategy
Required maintenance space
Use a laser level to establish a consistent reference point throughout the room.
A raised floor may cover thousands of square feet.
A small installation error repeated across hundreds or thousands of panels can result in significant differences in finished floor elevation.
Use a fixed benchmark and continuously check the finished height during installation.
Place the adjustable pedestals according to the manufacturer's layout.
Each pedestal should be positioned accurately on the grid.
Depending on the system, the pedestal may be:
Mechanically fixed
Adhesively bonded
Secured using a combination of methods
Follow the manufacturer's installation instructions and the project's structural requirements.
Before installing panels, check:
Pedestal spacing
Vertical alignment
Finished height
Base stability
Grid alignment
Pedestal heads should form a consistent plane for the panels.
Stringers connect adjacent pedestals and create a more rigid support structure.
They are particularly useful for applications requiring additional system stability.
Stringers may be specified for:
High floor heights
Heavy-duty applications
Seismic conditions
High-traffic areas
Certain data center designs
Not every raised floor system requires stringers.
Do not add or remove stringers based only on cost. Follow the manufacturer's structural design and project specification.
Once the pedestals and stringers are installed, carefully level the entire support structure.
Use a laser level to check multiple points across the room.
Check:
Finished floor elevation
Pedestal height
Grid alignment
Panel support points
Transition areas
The finished surface should be level and stable without rocking panels.
Instead of checking only one area, divide the room into installation zones.
For example:
Zone 1 → Zone 2 → Zone 3 → Zone 4
Check each completed zone against the same benchmark.
This makes it easier to identify cumulative height errors before the entire floor is installed.
Once the substructure has been correctly leveled, begin placing the panels.
For a 600 × 600 mm system, panels are normally installed according to the established grid.
Place each panel carefully onto the pedestal or stringer support.
Check that:
Panels sit correctly on the support heads
Panel edges align
There are no excessive gaps
Panels do not rock
Surface finishes are not damaged
Avoid dragging finished panels across the floor because this can damage the edges or surface finish.
Full-size panels will not always fit around:
Walls
Columns
Doors
Equipment bases
Structural obstacles
These areas require accurately cut panels.
Measure the opening carefully and transfer the dimensions to the panel.
Allow for the required clearance according to the system design.
Then cut the panel using appropriate equipment.
After cutting:
Check the dimensions.
Smooth sharp edges.
Protect the exposed core where required.
Install edge trim or other specified protection.
Place the panel and verify stability.
Do not install poorly supported narrow cut panels.
Small cut pieces may require additional support or special framing.
Data centers typically require many cable penetrations.
Grommets can provide organized openings through the raised floor while helping reduce unwanted airflow leakage.
Open cable penetrations can allow conditioned air to escape from the underfloor plenum.
Brush grommets help:
Organize cables
Reduce open gaps
Improve airflow management
Protect cables
Maintain a cleaner installation
For cooling-sensitive data centers, cable openings should be coordinated carefully with the airflow design.
Perforated panels provide conditioned air from the underfloor plenum to the data hall.
They should not simply be installed wherever there is available space.
Their locations should be coordinated with:
Rack positions
Cold aisles
Cooling units
Rack heat loads
Underfloor airflow
Static pressure
Installing more perforated panels does not automatically improve cooling.
If too much airflow is released in low-demand areas, the system may experience poor pressure distribution and inefficient cooling.
A better approach is to position airflow panels according to the actual cooling requirements of the equipment.
Before final inspection, inspect the entire underfloor plenum.
Check:
Cable organization
Airflow pathways
Unused openings
Cable tray locations
Pedestal stability
Debris
Obstructions
The underfloor space should be kept clean and organized.
Poor cable routing can obstruct airflow and make future maintenance difficult.
Coordinate cable trays and power/data routes with the mechanical design rather than treating the underfloor space as unlimited storage.
Anti-static data center floors require appropriate electrical design.
Depending on the system, grounding may involve:
Conductive floor finishes
Grounding strips
Pedestal bonding
Grounding conductors
Connection to the building grounding system
The exact grounding arrangement should be designed and verified by qualified electrical personnel according to the applicable project requirements.
Do not assume that a conductive floor finish alone makes the complete system electrically compliant.
After installation, conduct a systematic inspection.
Walk across the floor and check for:
Rocking panels
Movement
Uneven joints
Damaged finishes
Excessive gaps
Use a laser level or other appropriate measuring equipment to verify the finished floor elevation.
Inspect all perimeter and cut panels for:
Correct dimensions
Adequate support
Proper edge protection
Stable installation
Verify that perforated panels are installed in their designated locations.
Remove construction debris and verify that cables and other services are properly organized.
The complete installation can be summarized as:
Structural slab inspection
↓
Floor layout and grid marking
↓
Finished floor height setting
↓
Pedestal installation
↓
Stringer installation
↓
Leveling
↓
Solid panel installation
↓
Cut panel installation
↓
Grommet and accessory installation
↓
Perforated panel installation
↓
Grounding and electrical checks
↓
Final inspection
This sequence helps prevent the common mistake of installing panels before the underlying support system has been properly aligned and leveled.
Dust, debris, moisture, and uneven concrete can compromise pedestal stability.
Without a consistent reference elevation, floor levels can gradually drift across a large room.
The panel may be strong, but the complete system can still move if the pedestal structure is inadequate.
Small perimeter pieces can become unstable if they are not properly supported.
Airflow should be designed around cooling demand, not simply maximized.
Large unsealed openings can increase air leakage and reduce cooling efficiency.
The floor should be selected according to expected current and future equipment loads.
Construction materials, unused cables, and debris can obstruct airflow and make maintenance difficult.
High-density server racks require additional attention.
Consider:
Appropriate panel load rating
Adequate pedestal capacity
Correct pedestal spacing
Stringer systems
Additional reinforcement where required
Proper load distribution
Structural verification
For particularly heavy equipment, the equipment support strategy should be reviewed by the project engineer.
The raised floor should not automatically be assumed to carry every equipment load without engineering verification.
Installation time depends on:
Floor area
Floor height
Panel type
Number of cut panels
Pedestal configuration
Stringer requirements
Site conditions
Number of installers
Access restrictions
A large open-floor new construction project is generally easier to install than a renovation inside an operating server room.
For project planning, the supplier or specialist contractor should provide an installation schedule based on the actual floor area and system configuration.
Installation cost varies considerably by project.
The major factors include:
Labor rates
Country and city
Floor area
Floor height
System complexity
Number of cut panels
Seismic requirements
Site accessibility
Existing floor condition
When comparing supplier quotations, confirm whether the price includes:
Panels
Pedestals
Stringers
Accessories
Freight
Installation
Testing
Project supervision
A quotation for materials only should not be compared directly with a supply-and-installation quotation.
Data center raised floor projects may need to comply with project-specific standards and regulations covering:
Structural load performance
Deflection
Rolling loads
Fire performance
Electrical resistance
Grounding
Seismic performance
Dimensional tolerances
EN 12825 is one commonly referenced standard for raised access floors and includes requirements related to load performance and testing.
However, the applicable standards depend on the project location, building code, client specification, and data center design requirements.
Always confirm the required standards before ordering the floor system.
Installation quality starts with product quality.
Before purchasing, ask the manufacturer for:
Technical datasheets
Panel specifications
Load test reports
Deflection data
Fire-performance information
Electrical resistance information
Installation instructions
A capable manufacturer should be able to assist with:
Floor layouts
Pedestal layouts
Panel schedules
Cut-panel requirements
Airflow panel layouts
Accessory selection
Installation guidance
For large B2B projects, also evaluate:
Production capacity
Quality control
Testing facilities
Export experience
Packaging
Lead time
Replacement parts
Choosing a manufacturer that can provide both products and technical support can significantly reduce installation problems.
Before handing over the floor, check the following:
Structural slab inspected
Floor grid correctly marked
Finished floor level established
Pedestals correctly positioned
Pedestals securely installed
Stringers installed where specified
Floor system leveled
Panels properly seated
No rocking panels
Cut panels properly supported
Edge protection completed
Grommets installed
Brush grommets installed where required
Perforated panels installed according to design
Underfloor space cleaned
Cables organized
Grounding completed
Finished floor inspected
Load and other required tests completed
A small technical room may be suitable for installation by an experienced flooring contractor, but large data center projects should normally be installed by trained professionals familiar with the specific raised floor system.
There is no universal height. The required height depends on cable volume, cooling strategy, airflow requirements, building constraints, and equipment configuration. Many data center projects use approximately 300–600 mm or more, but the correct height should be determined during engineering design.
No. The requirement depends on the floor system, floor height, load, seismic requirements, and project specifications.
No. Airflow panels should be positioned according to the data center cooling strategy and equipment heat load.
Use the correct pedestal system, spacing, stringers or bracing where required, and proper installation methods. High-floor-height and heavy-load applications require particular attention to system stability.
Measure carefully, cut using appropriate equipment, protect exposed edges or cores as specified, and make sure the finished cut panel has adequate structural support.
Keep the plenum clean, minimize unnecessary openings, seal cable penetrations appropriately, organize cables, and place perforated panels according to the cooling design.
Accurate layout and leveling of the pedestal system. If the support structure is not correctly positioned and leveled, panel installation and long-term floor performance will be compromised.
A successful data center raised floor installation follows a simple principle:
Build the support structure correctly first, then install the panels.
The most important steps are:
Prepare and inspect the structural slab.
Establish an accurate floor grid.
Set the finished floor height.
Install and secure the pedestals.
Add stringers or reinforcement where required.
Level the entire support structure.
Install solid and cut panels.
Install grommets and airflow panels.
Complete grounding and electrical requirements.
Inspect the finished floor and underfloor plenum.
For large data center projects, installation should always follow the manufacturer's technical documentation and the project's engineering specifications.
A high-quality data center raised floor is not just about strong panels. It is a complete system in which panels, pedestals, stringers, airflow, cable management, grounding, and installation quality work together.
Planning a new data center, server room, AI facility, or high-density computing project?
A professional raised floor manufacturer can help you determine:
Panel type
Load capacity
Floor height
Pedestal configuration
Stringer requirements
Perforated panel quantity
Surface finish
Grommet configuration
Installation method
Send your project floor area, required floor height, rack load, cooling method, panel preference, and destination country to receive a project-specific recommendation and quotation.
Contact us for technical support, product specifications, samples, drawings, and a customized data center raised floor quotation.
