To ensure a level raised floor, first clean and prepare the concrete subfloor, then establish a fixed Finished Floor Level using a laser level. Adjust the raised floor pedestals to the correct height, check stringer levelness, and progressively inspect each floor panel during installation. Finally, perform a complete laser-level inspection after installation. Do not rely on pedestal adjustment alone to correct major unevenness in the subfloor.
Therefore, levelness should be controlled throughout the entire raised floor installation process, rather than being treated as a final adjustment.
This guide explains how to ensure levelness from the preparation of the subfloor to the final inspection, including how to level the floor surface, prepare measuring tools, adjust pedestals and stringers, install raised floor panels, and perform final levelness checks.
MAJET, as a manufacturer of raised access floor systems and accessories, recommends treating levelness as a continuous quality-control process rather than a single installation step.
Before discussing the installation procedure, it is important to understand why levelness matters.
A raised access floor normally consists of several interconnected components:
Raised floor panels
Adjustable pedestals
Stringers, where required
Pedestal heads or gaskets
Pedestal adhesive or mechanical fixing systems
Perimeter support
Ramps, steps, or other accessories
The final floor level depends on the correct positioning and adjustment of these components.
If the floor is not properly leveled, several problems may occur:
Poorly adjusted pedestals can cause adjacent panels to sit at different elevations. This may create visible steps between panels.
When a panel is not properly supported at all required points, it may rock or move when someone walks over it.
Incorrect pedestal positioning or height differences can result in inconsistent panel joints.
In data centers and technical rooms, cabinets, racks, and other equipment often require a stable and level surface.
If the subfloor is highly uneven, installers must spend more time repeatedly adjusting pedestal heights.
For these reasons, levelness should be checked before, during, and after raised floor installation.
The first and most important step is to inspect the existing floor before installing any pedestal.
The raised floor is installed above the structural floor, but the structural floor still provides the foundation for every pedestal. If the concrete slab has large height variations, the pedestal adjustment range may not be sufficient to compensate for them.
Before any measurement or installation begins, thoroughly clean the floor.
Remove:
Construction debris
Dust
Concrete fragments
Packaging materials
Sand and gravel
Adhesive residues
Other objects that may affect pedestal positioning
Even a relatively small piece of debris underneath a pedestal can change its effective height.
A clean surface also allows installers to mark pedestal positions accurately.
[Image Suggestion: Clean concrete subfloor before raised floor installation]
After cleaning, inspect the concrete floor for significant high and low areas.
A laser level is one of the most effective tools for identifying variations across a large installation area.
For larger projects, installers should establish a reference elevation and measure different points across the room.
For example, the installation team can identify:
The highest point
The lowest point
Local depressions
Local high spots
Overall floor slope
If the variation is too large, the subfloor may need to be repaired, ground, filled, or otherwise leveled before installing the raised floor system.
Adjustable pedestals are designed to compensate for normal installation tolerances, not to correct major structural irregularities in the concrete floor.
For example, if the required finished floor elevation is 300 mm, but one area of the concrete floor is significantly higher than another, simply adjusting the pedestal may push some pedestals toward the upper or lower limits of their adjustment range.
This can create several issues:
Reduced adjustment margin
More complicated installation
Increased installation time
Potential instability
Difficulty maintaining consistent finished floor height
Therefore, the better the original subfloor, the easier and faster the raised floor installation will be.
MAJET recommends checking the subfloor condition before installation rather than trying to solve all levelness problems after the panels have been installed.
Professional tools make a significant difference in installation accuracy.
The basic tools required for raised floor leveling may include:

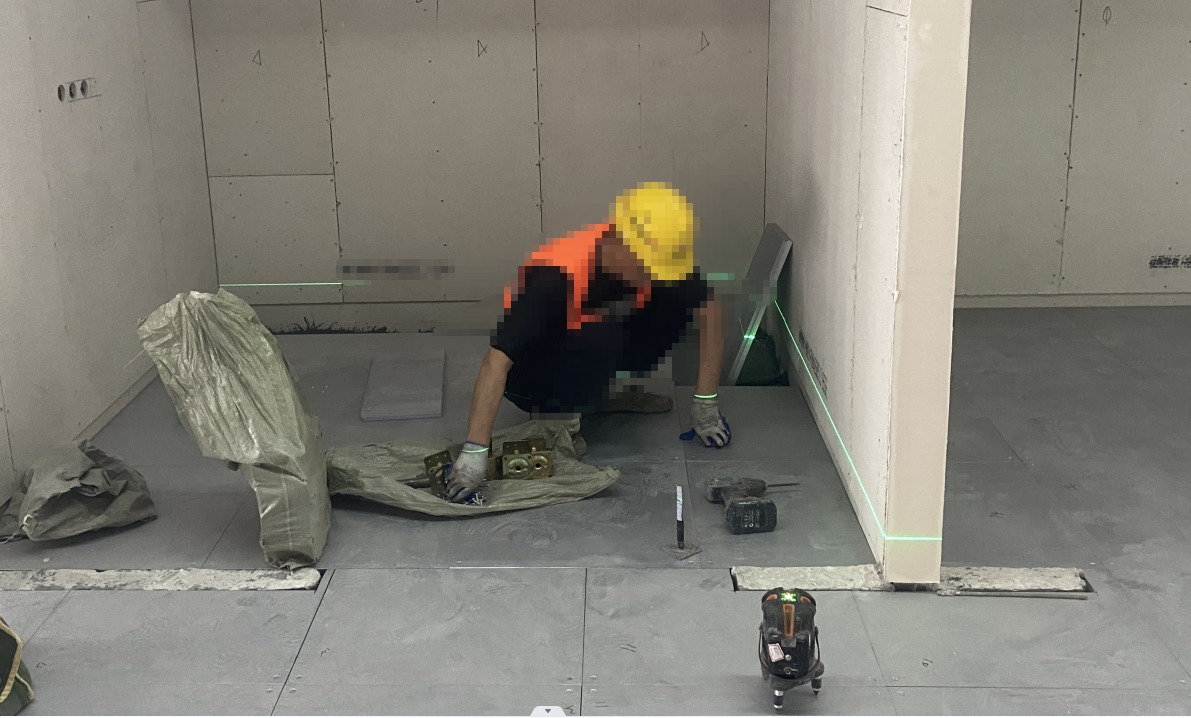

A laser level is one of the most useful tools for raised access floor installation.
It creates a consistent horizontal reference line that allows installers to check pedestal heights across the room.
For large projects, a rotary laser level can be particularly useful.
A measuring tape is used to verify the distance between pedestal locations and confirm the installation grid.
A spirit level can be useful for checking individual panels, pedestal heads, and smaller sections.
A long straightedge can help identify differences between adjacent panels.
These tools are useful for marking the pedestal grid and reference points on the concrete floor.
For repetitive installations, a fixed height gauge can improve efficiency by allowing installers to set pedestal heights consistently before final adjustment.
Before installing the first pedestal, establish a clear reference elevation.
This is one of the most important steps in the entire process.
The installation team should determine the required Finished Floor Level (FFL) based on the project drawings and site conditions.
The FFL is the final top surface elevation of the raised floor.
Once the FFL has been established, the required pedestal height can be determined based on the thickness of the selected floor panel and the required raised floor system height.
A simplified relationship is:
Required pedestal height = Finished floor level − existing floor level − panel thickness
The exact calculation depends on the raised floor system and the manufacturer's design.
Once the reference level is established, mark it clearly and use the same reference throughout the installation.
This prevents different installation teams from working from different height references.

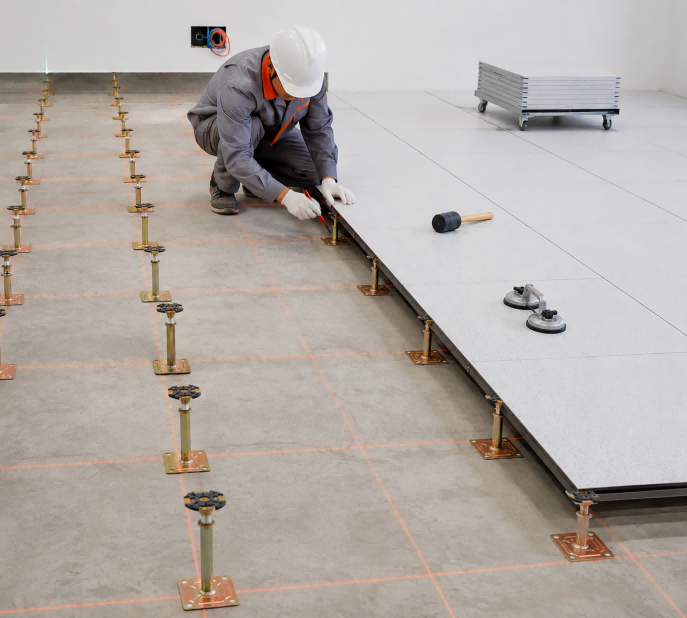

After establishing the reference level, install the pedestals according to the approved layout.
The pedestal grid should normally follow the panel dimensions and project drawings.
For a typical modular raised floor system, the pedestals support the corners of the panels.
At this stage, do not try to achieve perfect final levelness immediately.
First, adjust each pedestal approximately to the required height.
The purpose of the initial adjustment is to establish a consistent working level across the installation area.
Use the laser level to compare the top of each pedestal head against the reference elevation.
If one pedestal is too low, increase its height.
If one pedestal is too high, reduce its height.
Repeat the process across the installation area.
Levelness is not only about height.
Each pedestal should also have stable contact with the supporting floor.
Check that:
The pedestal base sits firmly on the concrete.
The pedestal is not positioned on debris.
The threaded adjustment mechanism is properly engaged.
The pedestal head is correctly positioned.
The pedestal is fixed according to the installation method.
For systems using pedestal adhesive, the adhesive should be applied according to the manufacturer's installation requirements.
MAJET raised floor systems can be supplied with different pedestal configurations depending on the application, required floor height, loading requirements, and project specifications.
For raised floor systems equipped with stringers, stringer installation is another important stage for controlling levelness.
Stringers connect the pedestals and improve the stability of the raised floor structure.
After the pedestals are approximately adjusted, install the stringers according to the system layout.
Do not assume that correctly positioned pedestals automatically guarantee perfectly level stringers.
Use a laser level or spirit level to check the stringer elevation.
If a section of stringer is higher or lower than the reference elevation, adjust the associated pedestal.
The adjustment should normally be made at the pedestal rather than by forcing the stringer into position.
Levelness should be checked in both directions.
For example:
Length direction →
Check several consecutive stringers.
Width direction ↑
Check the perpendicular stringers.
This creates a grid-based leveling system and helps prevent gradual height deviations from accumulating across the room.
[Image Suggestion: Laser level checking pedestal and stringer height]
If a stringer does not align correctly because the supporting pedestals are at different heights, do not force the components into position.
Instead:
Identify the high or low pedestal.
Check it against the laser reference.
Adjust the pedestal.
Recheck the stringer.
Continue only after the elevation is correct.
This approach produces a more stable and accurate raised floor system.
Once the pedestal and stringer system has been leveled, the raised floor panels can be installed.
Panels should be carefully placed onto the pedestal heads or stringer grid according to the manufacturer's installation method.

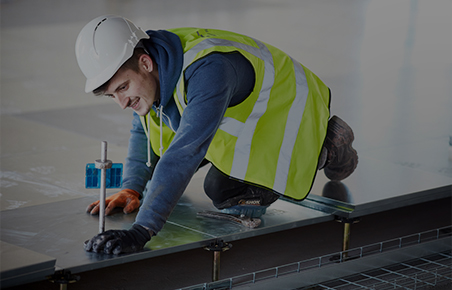

At this stage, installers should begin checking the actual finished floor surface.
Place a straightedge or spirit level across two or more adjacent panels.
Look for:
Panel edges that are higher than neighboring panels
Panel corners that are lower
Visible steps
Rocking panels
Uneven joints
If one panel is higher or lower than its neighbors, remove the panel and check the supporting pedestal.
Do not simply force the panel downward.
A properly supported panel should remain stable when loaded.
If a panel rocks when stepped on, check:
The pedestal position.
The pedestal head.
The supporting stringer.
Debris under the pedestal.
The panel itself.
The problem should be corrected at the source.
This is particularly important for raised floors used in server rooms, data centers, clean rooms, and other technical environments where floor stability is critical.
One common installation mistake is to wait until all panels have been installed before checking levelness.
This is inefficient.
Instead, level the floor progressively.
For example, installers can work in sections:
Pedestal installation → Stringer installation → Initial leveling → Panel installation → Levelness check → Next section
This approach prevents small errors from spreading over a large area.
If the installation team waits until the entire floor is completed, correcting one uneven area may require removing multiple panels.
Progressive leveling therefore saves both time and labor.
MAJET recommends treating every completed installation section as a small quality-control zone before moving to the next area.
Even after all raised floor panels are installed, a final levelness inspection is necessary.
The final inspection should confirm that the completed raised floor meets the project requirements.

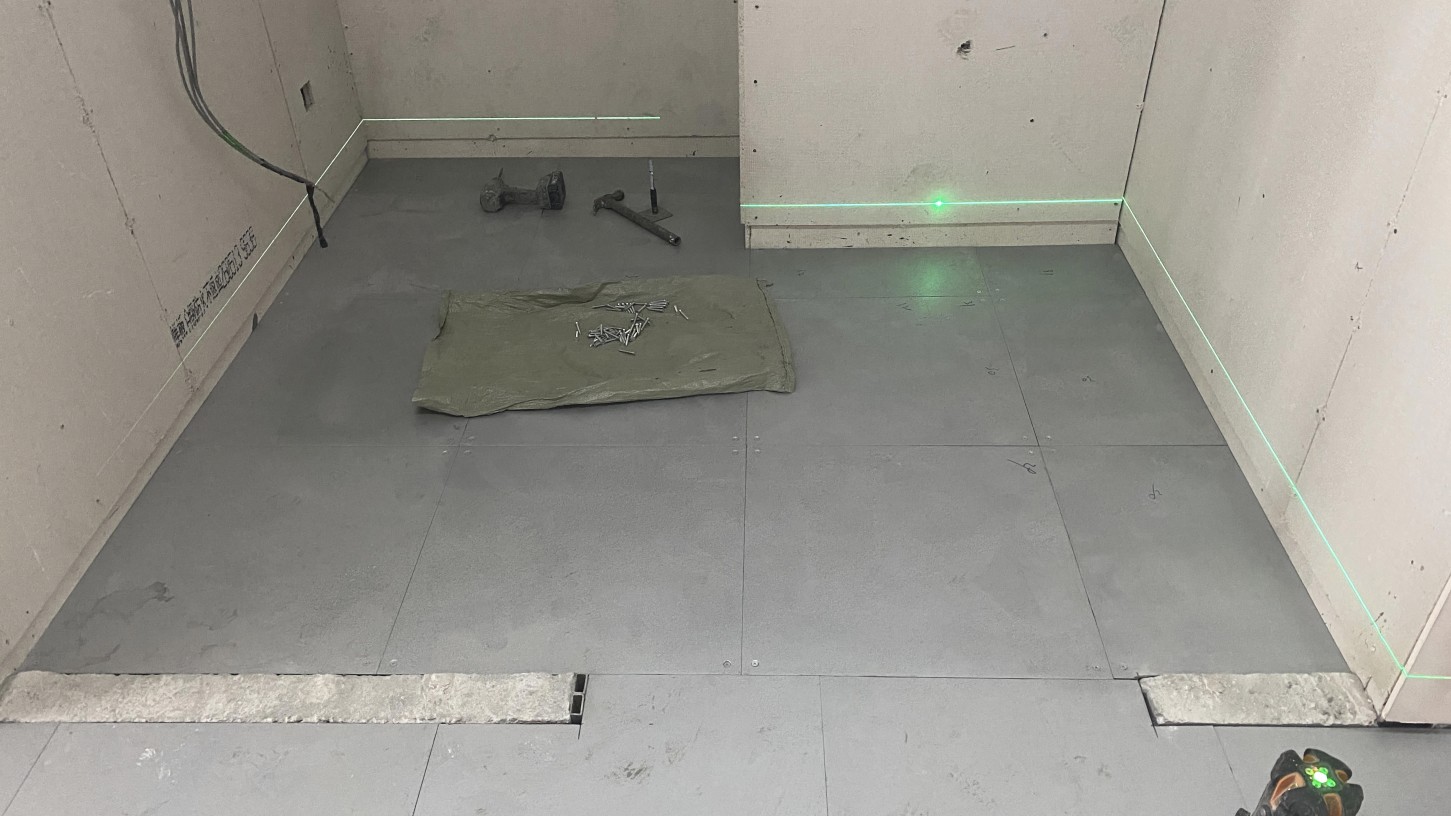

Use a laser level to inspect different points across the finished floor.
Check:
Room perimeter
Center of the room
Long installation runs
Short installation runs
Areas around columns
Areas around walls
Equipment zones
Access points
The joints between panels should be visually consistent.
Pay particular attention to transitions between different installation sections.
If the laser measurement shows an unexpected elevation difference, identify the affected panel or pedestal.
Remove the relevant panel if necessary and make the adjustment at the pedestal level.
After adjustment, reinstall the panel and check again.
The final inspection should not rely only on measurements.
Walk across the entire raised floor area and observe how the system behaves under normal foot traffic.
Look for:
Rocking panels
Loose panels
Uneven panel edges
Visible height differences
Excessive movement
Abnormal sounds
Damaged panels
Incorrect panel orientation
Gaps around the perimeter
A professionally installed raised access floor should feel stable and consistent when walking across it.
Large concrete irregularities can make pedestal adjustment unnecessarily difficult.
Better approach: Clean, inspect, and prepare the subfloor before starting the raised floor installation.
Pedestals have a defined adjustment range.
Better approach: Use pedestal adjustment for normal installation tolerances and correct major subfloor problems before installation.
A small spirit level is useful for local checks but is not always sufficient for large rooms.
Better approach: Use a laser level for establishing and maintaining a common elevation reference.
This can make corrections expensive and time-consuming.
Better approach: Check levelness continuously during pedestal, stringer, and panel installation.
A panel that rocks or sits too high should not simply be pressed into place.
Better approach: Check the supporting pedestal and correct the underlying problem.
Perimeter areas can behave differently because the panels may be cut to fit walls or columns.
Better approach: Carefully check perimeter supports and maintain the required finished floor elevation.
A high-quality raised access floor is not determined only by the specifications of the panel.
The complete system—including the panel, pedestal, stringer, gasket, fixing method, and installation procedure—must work together.
MAJET manufactures raised access floor systems for different applications, including data centers, computer rooms, clean rooms, offices, and other technical environments.
Depending on the project requirements, MAJET can provide different raised floor solutions, including aluminum raised access floors, steel cement raised floors, calcium sulphate raised floors, woodcore raised floors, and airflow or ventilation floor panels.
The installation requirements may vary according to:
Panel type
Panel dimensions
Finished floor height
Loading requirements
Pedestal type
Stringer configuration
Application environment
Seismic requirements
Airflow requirements
For this reason, installation should always follow the approved project drawings and the manufacturer's installation recommendations.
Before considering the installation complete, the following checklist can be used:
Concrete floor has been cleaned.
Construction debris has been removed.
Existing floor level has been inspected.
Major high and low areas have been corrected.
Finished Floor Level has been confirmed.
Pedestal layout has been marked.
Laser level has been prepared.
Pedestal positions match the approved layout.
Pedestal bases sit firmly on the floor.
Pedestal heights are approximately adjusted.
Pedestals are stable.
Reference elevation is maintained.
Stringers are correctly positioned.
Stringer elevation has been checked.
High and low points have been corrected.
Connections are properly secured.
Levelness is checked in both directions.
Panels are correctly positioned.
Panel joints are consistent.
Panels do not rock.
Adjacent panels are level.
Supporting pedestals have been checked when irregularities occur.
Overall floor level has been checked.
Perimeter areas have been inspected.
Panel joints have been checked.
High and low points have been identified and corrected.
Floor stability has been checked by walking inspection.
Final installation meets project requirements.
A raised access floor is leveled by establishing a fixed Finished Floor Level and adjusting the height of the supporting pedestals according to a laser level or other accurate reference system. Levelness should be checked during pedestal installation, stringer installation, panel installation, and final inspection.
Yes, adjustable pedestals can compensate for normal variations in the supporting floor, but their adjustment range is limited. Large differences in concrete floor elevation should be corrected before installing the raised floor system.
A laser level is one of the most effective tools for establishing and maintaining a consistent elevation across a large raised floor installation. A spirit level, measuring tape, straightedge, and height gauge can be used for additional local checks.
In most cases, the supporting pedestal should be adjusted rather than forcing the panel into position. The panel should sit correctly on the supporting structure without excessive movement or rocking.
Levelness should be checked throughout the installation process. It should be verified during subfloor preparation, pedestal installation, stringer installation, panel installation, and the final inspection.
Levelness helps provide a stable surface for server cabinets and other equipment, reduces panel movement, improves installation quality, and helps maintain consistent airflow and access beneath the raised floor.
Yes. Aluminum, steel cement, calcium sulphate, woodcore, and airflow raised floor systems can have different panel weights, pedestal configurations, fixing methods, and structural requirements. Installation should therefore follow the specific system design and manufacturer's instructions.
Ensuring levelness during raised floor installation is a continuous process.
The most important principle is simple:
Prepare the subfloor first, establish a reliable reference level, adjust the pedestals, level the stringers, check the panels during installation, and perform a final inspection after completion.
Do not wait until the entire raised floor has been installed to discover levelness problems.
A clean and reasonably level subfloor makes pedestal adjustment easier. Accurate measuring tools provide a reliable reference. Correct pedestal and stringer adjustment creates a stable foundation. Progressive panel inspection prevents small errors from becoming large installation problems.
For professional raised access floor projects, installation quality is just as important as product quality.
MAJET provides complete raised access floor solutions and related components for different applications and project requirements. If you are planning a data center, computer room, clean room, office, or other raised floor project and need advice on panel selection, pedestal height, stringer configuration, load capacity, installation methods, or levelness requirements, contact the MAJET team for technical recommendations and project support.
A level raised floor starts with a level foundation—and professional installation keeps it level from the first pedestal to the final panel.
