When planning a data center, one of the most important questions is simple:
How much weight can a data center raised floor support?
The answer depends on more than the material of the floor panel. A raised access floor system must be evaluated according to its concentrated load, uniform load, rolling load, pedestal capacity, stringer configuration, panel construction, and installation conditions.
This becomes even more important as modern data centers move toward high-density servers, GPU clusters, AI infrastructure, and heavier rack configurations.
A raised floor that works well for a conventional server room may not be suitable for a high-density AI data center.
In this guide, we explain how to evaluate data center raised floor load capacity, the difference between concentrated and uniform loading, how much weight different systems can support, and how to select the right floor for your project.
There is no single load rating that applies to every data center raised floor.
Depending on the system design, raised access floors can be engineered for different load requirements, including:
Concentrated load
Uniform distributed load
Rolling load
Impact load
Ultimate load
For data centers, concentrated load is often one of the most important values to evaluate because server cabinets and other heavy equipment transfer their weight through relatively small contact points.
A complete load assessment should consider both the floor panel and the supporting substructure.
Traditional office equipment may distribute its weight relatively evenly across the floor.
Data center equipment is different.
A server rack can concentrate a large amount of weight onto a small number of cabinet feet. High-density GPU racks can create even greater point loads.
A raised floor may therefore need to support:
Standard server racks
High-density GPU racks
Network cabinets
UPS systems
Battery cabinets
Power distribution units
Transformers
Cooling equipment
Cable trays
Mobile equipment during installation
The floor also needs to remain stable when equipment is moved into position.
This is why "How much weight can the panel support?" is not the only question.
A better question is:
"Can the complete raised floor system safely support the actual loads expected during operation and installation?"
This is one of the most important concepts when selecting a data center raised floor.
A concentrated load is a force applied over a relatively small area of the floor panel.
For example, consider a server cabinet supported by four feet.
The total cabinet weight may be distributed across four relatively small contact points.
This creates localized stress on the raised floor panel.
Concentrated load is therefore highly relevant when evaluating:
Server racks
GPU racks
UPS cabinets
Battery cabinets
Heavy equipment
A uniform load, also called a uniformly distributed load, spreads weight across a larger floor area.
Examples include:
Storage materials
People
Furniture
Equipment distributed across multiple panels

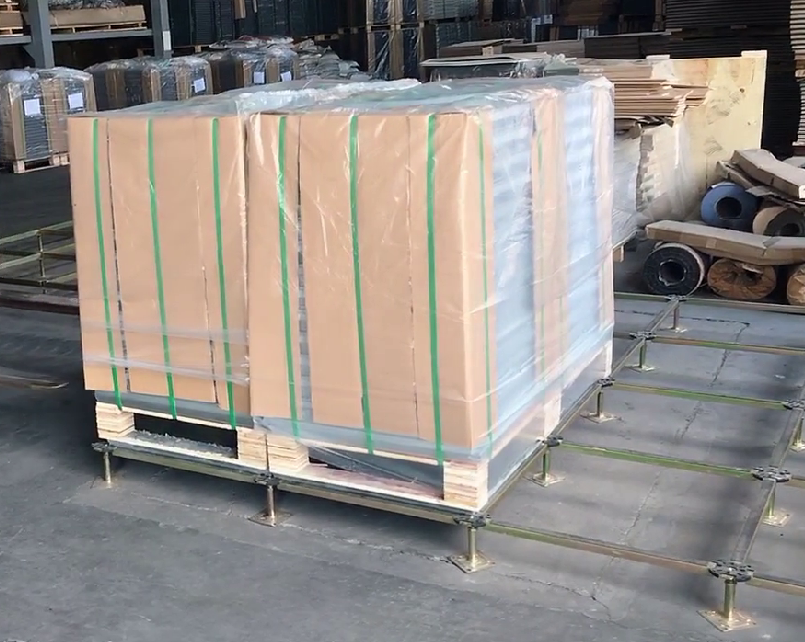

A floor can have a high uniform load rating while having a significantly different concentrated load rating.
For data centers, you should never use the uniform load rating alone to determine whether a floor can support a particular server rack.
For many data center applications, concentrated load is more important when evaluating heavy server racks.
Why?
Because the load from a rack is transferred through a limited number of cabinet feet rather than being distributed evenly across the entire floor.
For example, a 1,000 kg rack does not necessarily place 1,000 kg evenly across several square meters of floor.
Instead, the load may be concentrated at four or more contact points.
This makes concentrated load performance critical.
However, uniform load should not be ignored. A professional raised floor specification should consider both values, along with rolling load and the actual support configuration.
The answer depends on the specific product.
Typical heavy-duty raised floor systems may be engineered for concentrated loads ranging from several hundred kilograms to more than 1,000 kg per panel, depending on construction and classification.
However, you should never select a floor based on a generic load number from the internet.
The actual rating depends on:
Panel construction
Panel thickness
Core or infill
Steel thickness
Panel size
Pedestal spacing
Stringers
Load application area
Deflection requirements
Test method
Always request the manufacturer's technical datasheet and load test report.
The panel itself is the first major factor.
Common constructions include:
Steel cementitious panels
All-steel panels
Aluminum panels
Calcium sulphate panels
Heavy-duty steel panels are widely used because they can provide high load capacity at a competitive cost.
Panel thickness can influence structural performance, but thickness alone does not determine the final load rating.
Two panels with the same thickness can have very different performance because their internal construction may be different.
The pedestal transfers the load from the panel to the structural slab.
A strong panel installed on an inadequate pedestal system does not create a high-performance raised floor.
The pedestal should be evaluated for:
Axial load
Stability
Height
Head design
Base plate
Connection method
Stringers connect the pedestals and can improve the rigidity and stability of the overall system.
They may be particularly important for:
High raised floor heights
Heavy equipment
High-density data centers
Seismic applications
Areas with high traffic
The requirement for stringers should be determined by the specific system and project design.
AI and high-performance computing are changing data center floor requirements.
Traditional server racks may have significantly lower loads than some modern GPU and AI configurations.
As rack density increases, designers need to consider:
Higher rack weight
Smaller rack footprints
Concentrated cabinet loads
Equipment installation loads
Cooling infrastructure
Future equipment upgrades
This means that a raised floor designed for a conventional enterprise data center may not automatically be suitable for an AI facility.
For AI and GPU data centers, consider specifying:
High concentrated load capacity
High uniform load capacity
Appropriate rolling load resistance
Reinforced pedestals
Stringer systems where required
Proper rack load distribution
Verified test data
The final floor specification should be based on the actual rack manufacturer's weight and support configuration, not simply an assumed rack weight.
Application | Typical Load Concern | Recommended Approach |
|---|---|---|
Small server room | Standard rack loads | Standard heavy-duty system |
Enterprise data center | Rack + cable loads | Heavy-duty raised floor |
Colocation facility | Different rack densities | Higher load rating with flexible configuration |
AI/GPU data center | Very high concentrated loads | Heavy-duty engineered system |
UPS room | Heavy equipment | High concentrated and uniform load |
Battery room | High static loads | Verify equipment-specific loading |
High-density equipment area | Localized loads | Reinforced system where required |
These are application guidelines, not universal load ratings. Always verify the actual equipment weight and the tested capacity of the complete floor system.
This distinction is important when comparing technical datasheets.
Ultimate load refers to the load at which the tested component or system reaches structural failure according to the applicable test method.
It should not automatically be treated as the normal operating load.
The working or allowable load is the load that the system is designed to support during normal operation under the applicable design criteria.
When comparing manufacturers, make sure you know whether the quoted number represents:
Ultimate load
Working load
Design load
Safety-rated load
Test load
Otherwise, two apparently similar products may actually have very different performance.

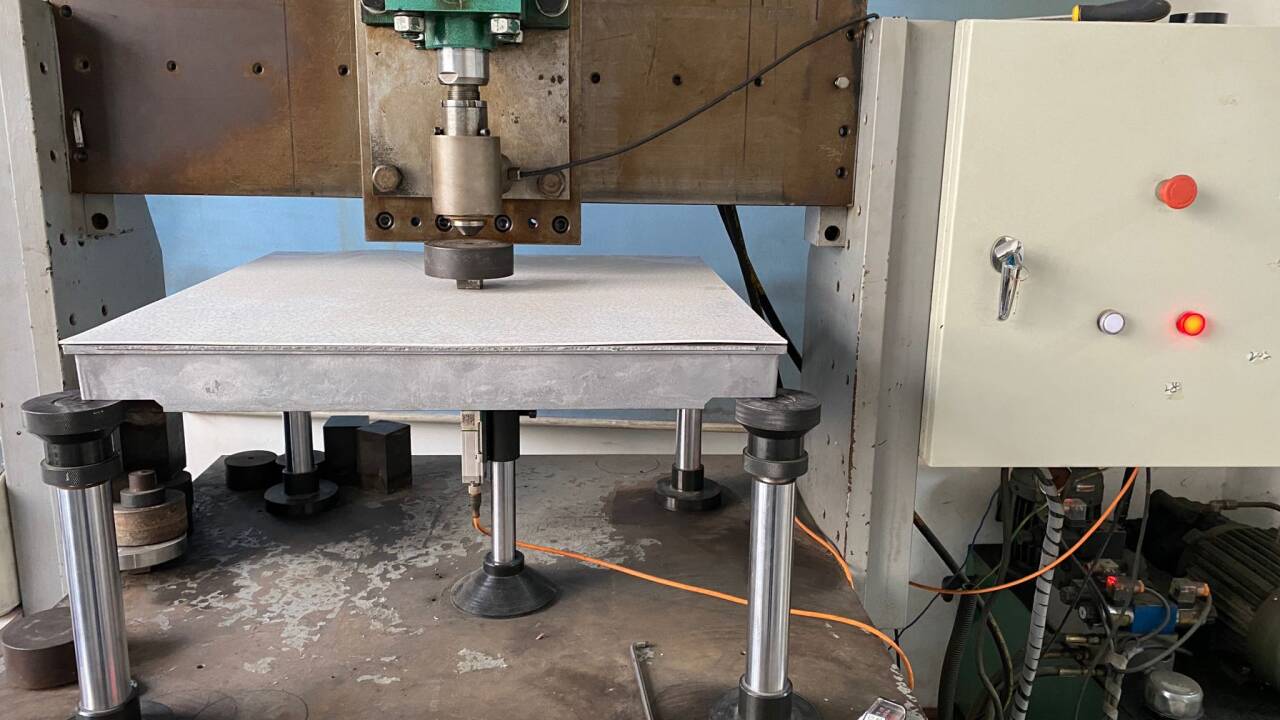

Load testing typically applies force to a defined area of the raised floor panel and measures its performance.
Depending on the applicable standard and test procedure, testing may evaluate:
Maximum load
Deflection
Permanent deformation
Failure mode
Rolling performance
System stability
Standards such as EN 12825 are commonly referenced when evaluating raised access floor performance.
However, the applicable standard depends on the project location, specification, and customer requirements.
When purchasing for a major data center, ask the manufacturer for the actual test report, not just a number printed on a product page.
Load capacity is not only about whether a panel breaks.
The amount a panel bends under load is also important.
Excessive deflection can affect:
Floor appearance
Equipment stability
Panel joints
Long-term durability
User confidence
Load distribution
For this reason, a good raised floor specification should consider both load capacity and allowable deflection.
Overloading can create several problems.
The panel may bend excessively under a heavy point load.
The panel may not return to its original position after the load is removed.
In severe cases, the panel or supporting structure can fail.
The pedestal may deform, move, or lose stability.
Overloaded panels can create an uneven finished floor.
Heavy equipment moved across an inadequately designed floor can create rolling or dynamic loads that are different from static rack loads.
When installing heavy equipment, don't simply place it anywhere on the floor.
First determine:
Total equipment weight
Number of support points
Footprint of each support point
Distance between cabinet feet
Load per support point
Location of pedestals below the equipment
Required reinforcement
Whenever possible, coordinate equipment positions with the raised floor grid.
This allows loads to transfer more effectively through the panels and supporting pedestals.
For extremely heavy equipment, the project engineer may specify additional support or direct equipment support to the structural slab.
Yes.
A raised floor with a relatively low floor height can behave differently from a system with a much higher pedestal configuration.
As floor height increases, the support structure may become more sensitive to:
Lateral movement
Pedestal stability
Buckling
Seismic forces
Horizontal loads
High raised floors therefore often require more robust pedestal and stringer configurations.
This is particularly important when a data center uses a large underfloor plenum for cable management or airflow.
The surface finish is important, but it should not be treated as the primary structural component.
Common finishes include:
HPL
PVC
Vinyl
Ceramic
The structural performance primarily comes from the panel construction and support system.
However, the finish still matters for:
Wear resistance
Anti-static performance
Maintenance
Chemical resistance
Appearance
For data centers, the finish should be selected together with the electrical and operational requirements.
Yes.
A data center raised floor often has two functions:
Structural support + airflow management.
Solid panels support equipment, while perforated panels or airflow grilles deliver conditioned air to the data hall.
The floor design therefore needs to balance:
Load capacity
Airflow
Static pressure
Panel open area
Rack heat load
Cooling unit capacity
Perforated panels should be installed according to the cooling strategy rather than simply maximizing the number of openings.
High-density data centers often have a higher cooling demand at the same time that they have higher rack loads.
This creates a design challenge.
You may need:
Heavy-duty solid panels around racks
Perforated panels in cold aisles
High-capacity pedestals
Stronger stringers
Adequate floor height
Sealed cable penetrations
The structural and mechanical designs should therefore be coordinated from the beginning.
A practical selection process is to start with the heaviest equipment.
Find the maximum operating weight of the rack, including:
Servers
GPUs
Storage
Power supplies
Batteries
Accessories
If the equipment is supported by four feet, determine the approximate load at each point.
Do not assume that the weight is perfectly distributed unless the equipment manufacturer confirms it.
Equipment may be moved using:
Carts
Dollies
Pallet jacks
Rollers
Lifting equipment
These can create rolling or dynamic loads that differ from the final static rack load.
If today's rack weighs 600 kg but future equipment may weigh 900 kg, designing only for 600 kg can create unnecessary limitations later.
Check:
Panel
Pedestal
Stringer
Connections
Structural slab
The weakest component can determine the performance of the entire system.
For many high-load data center applications, heavy-duty steel raised floors offer an excellent combination of:
High load capacity
Structural stability
Durability
Cost-effectiveness
Availability
Easy replacement
Aluminum can be attractive when low weight, corrosion resistance, or specialized technical requirements are important.
Calcium sulphate can also be considered for specific technical environments, but the actual panel must be verified for the required concentrated and rolling loads.
There is no universal "strongest" material. The complete system design and tested performance are what matter.
When requesting quotations, don't ask only:
"How much weight can your raised floor support?"
Instead, ask the manufacturer for:
Concentrated load
Uniform load
Rolling load
Ultimate load
Deflection
Panel construction
Pedestal load capacity
Stringer specifications
Test standard
Test report
This gives you a much more accurate basis for comparison.
For an accurate recommendation, provide:
Data center type
Total floor area
Panel size
Required floor height
Maximum rack weight
Rack dimensions
Number of support points
Cooling method
Perforated panel requirements
Surface finish
Country of installation
If you are building an AI or HPC facility, also provide the expected maximum rack density and GPU rack weight.
The manufacturer can then recommend an appropriate panel and support structure instead of simply offering a standard product.
This is one of the most common mistakes.
Always check concentrated load when heavy equipment is involved.
Two suppliers may quote different numbers using different test methods.
Always compare the testing standard and test conditions.
A high-load panel does not guarantee a high-load system.
Moving heavy equipment can create significant loads during installation.
Future rack densities should be considered.
Different zones may have different loading requirements.
There is no universal rating. Heavy-duty data center raised floors can be engineered for high concentrated and uniform loads, but the actual capacity depends on panel construction, pedestal design, stringers, floor height, and testing method.
It depends on the actual rack weight and how that weight is transferred to the floor. For heavy racks, concentrated load should be evaluated based on the rack's individual support points rather than total rack weight alone.
For heavy server racks, concentrated load is often the more critical value because rack loads are transferred through relatively small support points. However, both concentrated and uniform load should be evaluated.
Potentially, yes. A suitable heavy-duty raised floor system can be engineered for very high loads, but the rack footprint, number and size of support points, pedestal layout, and actual tested floor capacity must be checked before installation.
Yes. Heavy-duty raised floors can be suitable for AI and GPU facilities when the system is engineered for the higher concentrated rack loads and the cooling strategy.
Not necessarily. The requirement depends on floor height, loading, system design, seismic conditions, and project specifications. A qualified manufacturer or engineer should determine whether stringers are required.
Only when the floor system has been specifically designed and verified for the equipment load. Extremely heavy equipment may require additional reinforcement or direct support to the structural slab.
Ask for the technical datasheet, test standard, test report, load conditions, and deflection data. A manufacturer's stated load rating should be supported by appropriate testing documentation.
The correct answer is:
It depends on the complete raised floor system and the way the load is applied.
For data centers, the most important factors are:
Concentrated load
Uniform load
Rolling load
Pedestal capacity
Stringer and bracing configuration
Panel construction
Floor height
Installation quality
Actual equipment support points
Verified test data
For standard enterprise data centers, heavy-duty steel raised floors are often an effective choice because they combine strong load performance with competitive cost.
For AI and high-density data centers, however, the floor should be engineered around the actual rack weight and support configuration rather than selected from a standard load table.
The best raised floor is not necessarily the one with the highest advertised load rating.
It is the one that safely supports your equipment, meets the required performance standards, works with your cooling strategy, and provides sufficient capacity for future expansion.
Planning a new data center, server room, AI facility, or high-density GPU deployment?
Send us your:
Maximum rack weight
Rack dimensions
Number of rack support points
Floor area
Required floor height
Cooling method
Panel preference
Project location
We can help you evaluate the required concentrated load, uniform load, pedestal configuration, stringer requirements, panel type, and airflow solution.
Contact us for a technical recommendation, product datasheet, load test report, drawings, sample, and project quotation.
