Views: 0 Author: Site Editor Publish Time: 2026-08-21 Origin: Site

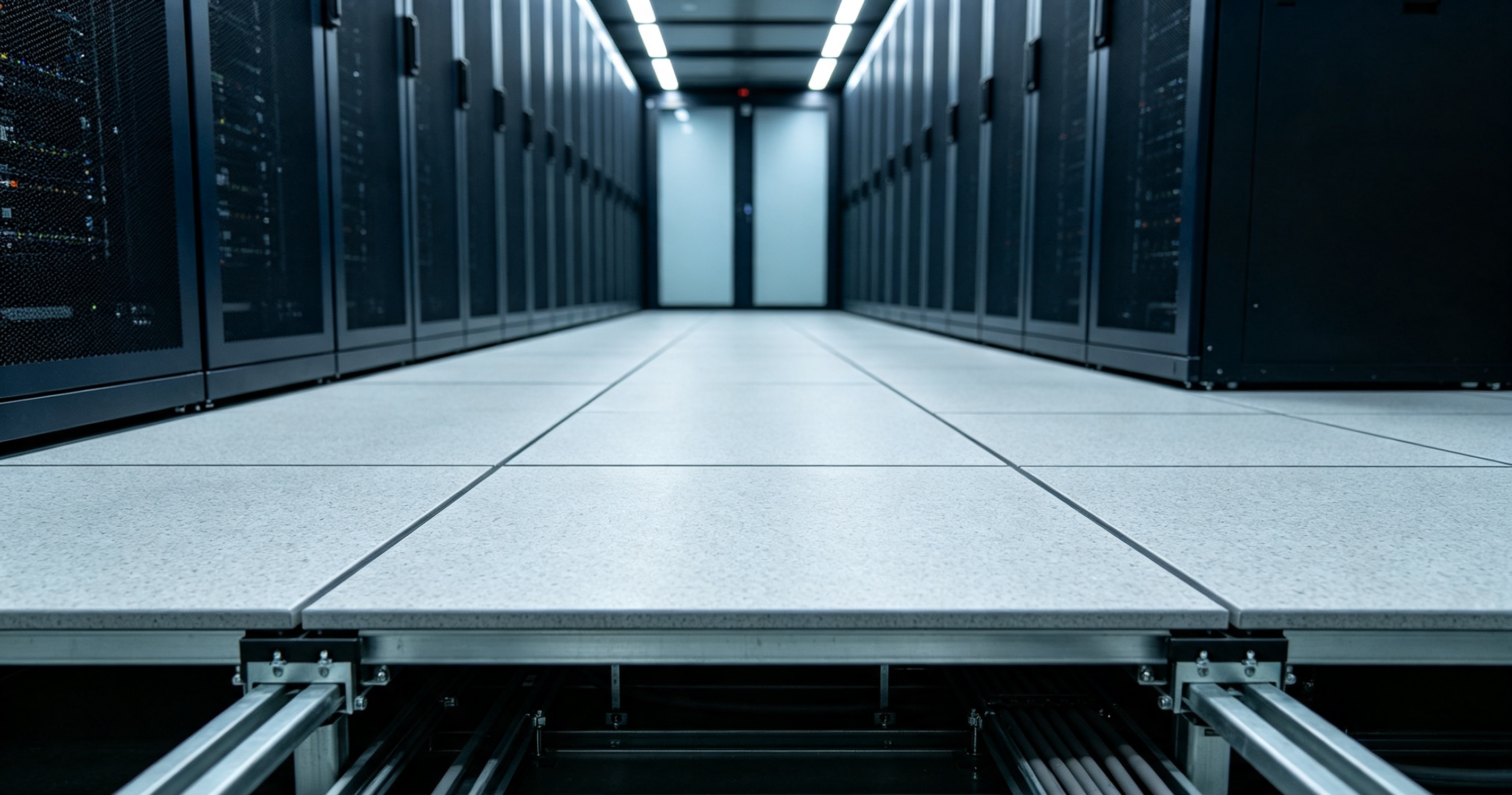

If you are planning a new data center, server room, or high-density IT facility, one of the first questions is usually simple:
How much does a data center raised floor cost?
The answer is not a single number. In 2026, the cost of a data center raised floor can vary significantly depending on the panel material, load capacity, floor height, surface finish, airflow requirements, pedestal system, accessories, installation, project location, and order quantity.
As a general planning benchmark, published 2026 market examples show raised-floor system kits ranging from roughly $17.55 to $29.99 per square foot for several commonly sold configurations, while other published sources report installed raised-floor costs in the broader range of approximately $12–$15 per square foot. These figures are not directly comparable because they can include different combinations of panels, substructure, finishes, and labor.
For a commercial data center project, therefore, the best approach is not to ask only for a "price per square foot." Instead, you should request a quotation based on the complete raised floor system and project specification.
This guide explains what you should expect to pay in 2026, what drives the price, and how to reduce unnecessary costs without compromising data center performance.
For preliminary budgeting, a standard data center raised floor system may commonly fall into the following broad planning ranges:
Raised Floor Solution | Indicative Planning Cost* | Typical Application |
|---|---|---|
Standard steel raised floor | $15–$25/sq. ft. | Server rooms, enterprise data centers |
Heavy-duty steel raised floor | $20–$30+/sq. ft. | High-density and AI data centers |
Calcium sulphate raised floor | $18–$30+/sq. ft. | Technical rooms, offices, selected data centers |
Aluminum raised floor | $25–$40+/sq. ft. | Specialized high-tech facilities |
Perforated airflow panels | Higher than solid panels | Cooling zones |
Installation | Project-dependent | Depends on location and site conditions |
*These are budgetary planning ranges, not fixed market prices or quotations. Actual B2B factory pricing can be significantly different depending on quantity, specifications, country, Incoterms, packaging, and project requirements.
A 2026 U.S. retail example lists raised-floor kits at approximately $17.55/sq. ft. for concrete-filled system, $18.27/sq. ft. for a calcium sulphate, $21.75/sq. ft. for an all-steel 1250 system, and up to approximately $29.99/sq. ft. for a premium all-steel system.
For international data center projects, however, it is usually more useful to separate the cost into panels + pedestals + stringers + accessories + freight + installation.
The simplest way to estimate the budget is:
Total raised floor cost = floor area × system cost per square foot + project-specific costs
For example, suppose your project requires 10,000 sq. ft. of raised flooring.
If your preliminary system budget is $20/sq. ft.:
10,000 × $20 = $200,000
This does not necessarily represent the final project cost because you may still need to add:
Installation
Freight
Taxes or duties
Floor preparation
Ramps
Steps
Edge trims
Grommets
Brush panels
Perforated panels
Cut panels
Grounding
Special reinforcement
The important point is that floor area alone does not determine the final cost.
When comparing quotations, make sure you understand exactly what the supplier is offering.
A complete raised access floor system may include:
The panels are the visible floor surface.
Common options include:
Steel cementitious panels
All-steel panels
Aluminum panels
Calcium sulphate panels
Perforated airflow panels
Pedestals support the panels and transfer loads to the structural slab.
Pedestal height can have a significant impact on the final price.
Stringers connect pedestals and increase system stability.
They may be required for:
High floor heights
Heavy equipment
Seismic applications
High-density data centers
Specific structural requirements
Common finishes include:
HPL
PVC
Conductive HPL
Vinyl
Bare panel
The finish can affect both cost and electrical performance.
A data center project may also require:
Cable grommets
Brush grommets
Perforated panels
Airflow grilles
Ramps
Steps
Edge trims
Lifting tools
Grounding accessories

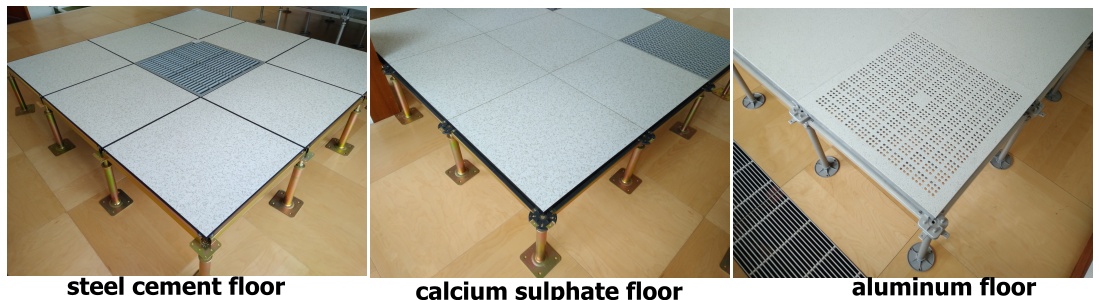

Material is one of the first cost differences buyers notice.
Steel raised floors are usually the most economical choice for large data center projects.
They offer:
High load capacity
Good durability
Strong structural performance
Wide availability
Competitive manufacturing cost
For many enterprise and high-density data centers, steel provides the best cost-to-performance ratio.
Aluminum raised floors are generally more expensive.
They can provide:
Excellent corrosion resistance
High strength-to-weight ratio
Lightweight construction
Good performance in specialized environments
However, the higher material cost makes aluminum less attractive when the entire data hall needs to be covered.
Calcium sulphate systems occupy a middle-to-premium position depending on the specification.
They can offer:
Good fire characteristics
Good acoustic performance
Dimensional stability
Sustainability advantages
However, the product must be carefully selected for heavy data center loads.
Load capacity can significantly affect price.
A standard office raised floor and a heavy-duty data center floor are not interchangeable.
Data centers may need to support:
Server racks
GPU racks
UPS systems
Battery cabinets
PDUs
Cooling equipment
Heavy installation equipment
The higher the required load capacity, the more robust the panel and support structure may need to be.
For data centers, concentrated load is particularly important.
Server racks transfer their weight through relatively small contact points. Therefore, buyers should not evaluate a raised floor only by its uniform load rating.
EN 12825 classifies raised access floors according to ultimate load, with classes ranging from 4 kN to 12 kN in the standard's table. Its application guidance also emphasizes point loads for equipment such as server racks.
This means that a higher-priced heavy-duty panel may be a better investment than a cheaper panel that requires additional reinforcement after installation.
Floor height is another major pricing factor.
A 150 mm floor and a 600 mm floor do not require the same pedestal structure.
Higher floors generally require:
Taller pedestals
Stronger support structures
More stringers
More installation time
Greater structural stability
Data center projects commonly use substantially higher service voids than ordinary office applications when the underfloor space must accommodate extensive services or airflow. Published manufacturer specifications, for example, show data center finished-floor heights around 300–600 mm for some systems.
However, higher is not always better.
The floor height should be determined by:
Cable volume
Cooling strategy
Airflow requirements
Structural requirements
Future expansion
Building constraints
The surface finish can affect the cost of the final system.
HPL is widely used in technical environments because it can provide:
Good scratch resistance
Easy maintenance
Good appearance
Anti-static options
PVC is homogenous with good wear resistance, but the exact electrical and performance requirements should be checked against the project specification.
Bare panels can reduce initial material cost when a separate finish or special application is planned.
For data centers, however, surface electrical performance and grounding requirements should be considered as part of the complete floor system.
Perforated panels generally cost more than standard solid panels.
But installing perforated panels throughout the entire data hall is not necessarily the most economical or technically correct solution.
The better approach is to design airflow according to:
Rack heat load
Cold aisle layout
Cooling unit location
Underfloor static pressure
Required airflow volume
ISO/IEC 22237-2:2024 states that ventilation panels should be selected to provide the required airflow while supporting the required load.
In other words, airflow performance and structural performance need to be considered together.
A raised floor is only as strong as its supporting structure.
The cost can increase when the project requires:
Heavy-duty pedestals
Higher pedestals
Reinforced pedestals
Stringers
Seismic bracing
Additional support points
For heavy server racks, it is important to evaluate the entire load path from the rack to the structural slab.
Quantity can have a major impact on B2B pricing.
A supplier quoting 500 sq. ft. is dealing with a very different commercial situation from a supplier quoting 100,000 sq. ft.
Large projects may benefit from:
Lower unit manufacturing cost
Better container utilization
Optimized packaging
Better freight efficiency
Customized production
Project-specific engineering
This is why factory-direct pricing can be substantially different from retail pricing.
Installation is often overlooked during the initial budget.
Published cost guides show that installation can represent a significant portion of the overall project cost, while some suppliers quote system components separately from labor.
Installation costs depend on:
Country
Labor rates
Floor area
Floor height
Site accessibility
Existing slab condition
Installation complexity
Seismic requirements
Number of cut panels
Number of accessories
A large, open new-build data center is usually easier to install than a live server room that must remain operational during construction.
Let's use a simple planning example.
Assume:
Area: 1,000 sq. ft.
Heavy-duty steel system
Planning budget: $20–$30/sq. ft.
The raised floor system budget would be approximately:
$20,000–$30,000
Then add project-specific items such as:
Installation
Freight
Airflow panels
Grommets
Ramps
Grounding
Floor preparation
The final cost could therefore be higher.
For a 10,000 sq. ft. facility, using the same planning range:
10,000 × $20–$30 = $200,000–$300,000
However, a large B2B project may receive a lower factory unit price than a small retail order because of production volume.
At the same time, a large data center may require more expensive:
Heavy-duty panels
Stringers
Perforated panels
Seismic bracing
Special finishes
Custom cut panels
Therefore, large area does not automatically mean lower total project cost.
Consider a hypothetical 20,000 sq. ft. enterprise data center.
Cost Item | Example Budget |
|---|---|
Raised floor panels + substructure | $400,000–$600,000 |
Perforated airflow panels | Project-dependent |
Grommets and accessories | Project-dependent |
Freight | Project-dependent |
Installation | Project-dependent |
Floor preparation | Project-dependent |
Total | Requires project quotation |
This is a budgeting example rather than a market quotation. A real quotation should be calculated from the actual panel specification, quantity, destination, floor height, loading requirements, and accessory schedule.
Sometimes, yes.
The cheapest floor is not necessarily the lowest-cost floor over its lifetime.
For example, saving $2 per square foot on a 20,000 sq. ft. project saves:
$40,000
But if the cheaper system requires:
Additional reinforcement
More frequent panel replacement
Poorer airflow performance
More maintenance
Difficult access
Earlier replacement
the initial saving can disappear quickly.
For data centers, the better question is:
"What is the lowest total cost that still meets our technical requirements?"
Do not automatically specify the highest possible load rating everywhere.
Instead, divide the facility into zones.
For example:
Standard rack areas
High-density AI rack areas
UPS areas
Battery areas
Equipment rooms
Maintenance areas
Different zones may require different solutions.
Use airflow panels where they are needed rather than installing expensive airflow panels everywhere.
Do not specify excessive floor height without a technical reason.
A correctly calculated plenum can reduce material and installation costs.
For large projects, factory-direct sourcing can eliminate several layers of distribution margin.
Ask the manufacturer about:
MOQ
Production capacity
Export experience
Container loading
Project pricing
Customization
Purchasing panels, pedestals, stringers, grommets, and accessories from one manufacturer can simplify:
Procurement
Packaging
Logistics
Quality control
Installation coordination
A supplier cannot provide a meaningful quotation from floor area alone.
For a professional quotation, provide at least:
Project location
Total floor area
Data center type
New construction or renovation
Panel size
Panel thickness
Load capacity
Concentrated load
Uniform load
Floor height
Surface finish
Airflow requirements
Stringer system
Seismic requirements
Grounding
Access ramps
Steps
Edge trims
Required quantity
Delivery schedule
Destination port
Packaging requirements
Preferred Incoterm
The more complete the information, the more accurate the quotation will be.
When comparing suppliers, ask for a line-by-line quotation.
A good quotation should identify:
Panel specification
Panel quantity
Pedestal quantity
Stringer quantity
Perforated panel quantity
Finish
Accessories
Packaging
Shipping terms
Lead time
Warranty
Testing documentation
This prevents a common purchasing mistake: comparing a complete system quotation with a quotation that covers panels only.
A raised floor is part of the physical infrastructure supporting your IT equipment.
ISO/IEC 22237-2:2024 states that raised access floor load-bearing capacity should be determined according to anticipated loading, while the system should be levelled and secured to prevent movement and progressive collapse.
This is especially important for high-density data centers.
A professional supplier should be able to provide:
Product datasheets
Load test reports
Installation instructions
Material specifications
Electrical resistance data where applicable
Fire-performance information where required
Project references
As a preliminary planning figure, many projects may fall somewhere around $15–$30+ per square foot for the raised floor system, depending heavily on specification. Published 2026 retail examples for complete kits are around $17.55–$29.99/sq. ft. However, international factory pricing and installed project costs can be significantly different.
Standard steel raised flooring is generally one of the most cost-effective options for data centers because it combines good load capacity, durability, and manufacturing efficiency.
Aluminum is generally more expensive than standard steel raised flooring because of material and manufacturing costs. It can still be worthwhile for specialized facilities where lightweight construction or corrosion resistance is important.
Yes. Higher floor heights generally require taller pedestals and may require stronger substructures, stringers, or additional bracing.
Yes. Perforated or airflow panels generally cost more than standard solid panels. However, using them strategically can improve cooling performance without unnecessarily increasing the entire flooring budget.
The most effective methods are to optimize the load rating, floor height, airflow panel quantity, accessories, packaging, and logistics. For large projects, purchasing directly from a manufacturer can also improve pricing.
Not always. Some quotations cover only panels and support structures, while others include installation. Always confirm whether the price is EXW, FOB, CIF, DDP, supply-only, or supply-and-installation.
Do not compare price per square foot alone. Compare:
Panel specification
Load capacity
Pedestal system
Floor height
Finish
Airflow performance
Test reports
Accessories
Warranty
Lead time
Shipping terms
For initial planning, a $15–$30+ per square foot range can be used as a broad starting point for many data center raised-floor systems, but it should not be treated as a universal quotation.
The actual price depends on five major factors:
Panel material and load rating
Floor height and support structure
Surface finish and electrical requirements
Airflow panels and accessories
Project location, quantity, freight, and installation
For a serious B2B project, the most reliable way to determine the actual cost is to provide the supplier with your floor area, required height, rack load, panel specification, airflow requirements, destination, and quantity.
A professional manufacturer can then provide a project-specific quotation rather than an unreliable generic "price per square foot."
Planning a data center, server room, or high-density AI facility?
Send us your:
Project floor area
Country and delivery location
Required floor height
Maximum rack load
Panel type or preferred material
Surface finish
Airflow requirements
Estimated quantity
We can help you select the appropriate data center raised floor system, including panels, pedestals, stringers, perforated panels, grommets, and other accessories.
Contact us for a project-specific quotation and technical recommendation.
For stronger SEO and GEO topic-cluster performance, connect this article to:
Steel vs Aluminum vs Calcium Sulphate Raised Floors for Data Centers
How Much Weight Can a Data Center Raised Floor Support?
