Concentrated Load vs. Uniform Distributed Load: How to Choose the Right Raised floor System

When selecting a raised access floor, load capacity is one of the most important technical factors to consider. However, load capacity is not simply one number. A raised floor can perform very differently under a concentrated load compared with a uniform distributed load.

A server rack, cabinet, heavy equipment leg, or caster may apply a concentrated load to a relatively small area of one panel. In contrast, office furniture, people, storage equipment, and other loads may distribute their weight across a much larger floor area.

For data centers, equipment rooms, control rooms, industrial facilities, and other high-load applications, both values should be considered before selecting a raised floor system.

This guide explains the difference between concentrated load and uniform distributed load, how they affect raised floor performance, and how to choose the appropriate raised floor construction for your project.

What Is Concentrated Load on a Raised Floor?

A concentrated load is a force applied to a relatively small area of a raised floor panel.

Typical examples include:

• Server rack feet

• Data center cabinets

• Machine legs

• Heavy equipment supports

• Furniture legs

• Small wheels or casters

• Equipment with adjustable feet

• Point supports

• Pallet truck or trolley wheels

Because the load is applied over a small area, concentrated loading creates significantly higher local stress than the same total weight distributed over a large floor area.

For example, consider a 1,000 kg equipment cabinet.

If the cabinet is supported by four feet, the theoretical static load is:

1,000 kg ÷ 4 = 250 kg per support

However, the actual load on each support may not be perfectly equal. Equipment positioning, floor levelness, dynamic movement, installation tolerances, and uneven weight distribution can cause one or more supports to carry a higher proportion of the total load.

Therefore, selecting a raised floor only according to the equipment's total weight can be misleading.

Why Concentrated Load Matters

Concentrated load is particularly important when the equipment has:

• Small support feet

• Narrow bases

• Casters

• High point loads

• Uneven weight distribution

• Heavy components positioned at the top or bottom

• Limited contact area with the floor

For these applications, the panel must resist local deformation without excessive deflection, cracking, permanent deformation, or failure of the panel and supporting structure.

What Is Uniform Distributed Load on a Raised Floor?

A uniform distributed load, often abbreviated as UDL, refers to a load distributed relatively evenly over a larger floor area.

Typical examples include:

• People

• Office furniture

• Lightweight storage

• Workstations

• Shelving distributed across multiple panels

• General equipment distributed across a room

• Floor finishes and building services

Instead of one small loading point, the weight is spread over a larger area.

For example, if a 1,000 kg load is distributed evenly over 20 m²:

1,000 kg ÷ 20 m² = 50 kg/m²

This produces a very different loading condition from placing the same 1,000 kg load on four small equipment feet.

Why Uniform Distributed Load Matters

UDL is useful for understanding the overall structural loading condition of a raised floor system.

It becomes particularly relevant for:

• Office floors

• Control rooms

• Commercial buildings

• Computer rooms

• Equipment rooms

• Technical rooms

• Areas with many people or light equipment

However, a high uniform distributed load rating does not automatically mean that a floor is suitable for heavy equipment with concentrated loads.

This is one of the most common mistakes when comparing raised floor products.

Concentrated Load vs. Uniform Distributed Load

The two loading conditions answer different questions.

A suitable raised floor should be evaluated according to the actual loading conditions of the project, rather than comparing only one load rating.

Why Concentrated Load Can Be More Critical Than Total Weight

Consider two raised floor applications.

Application A: Distributed Office Load

A 500 kg group of furniture and people is distributed across 15 m².

The approximate average loading is:

500 ÷ 15 = 33.3 kg/m²

The load is spread across many panels and a relatively large area.

Application B: Heavy Equipment

A 500 kg machine is supported by four small feet.

The theoretical load is:

500 ÷ 4 = 125 kg per foot

If the feet have a small contact area, the local stress can be much higher than the average room loading.

Therefore:

500 kg of distributed load and 500 kg of concentrated load are not equivalent loading conditions.

This is why engineers and raised floor manufacturers normally need to know not only the total equipment weight but also how the weight is transferred to the floor.

How Raised Floor Load Capacity Is Tested

Raised floor manufacturers commonly evaluate panels under specific loading conditions.

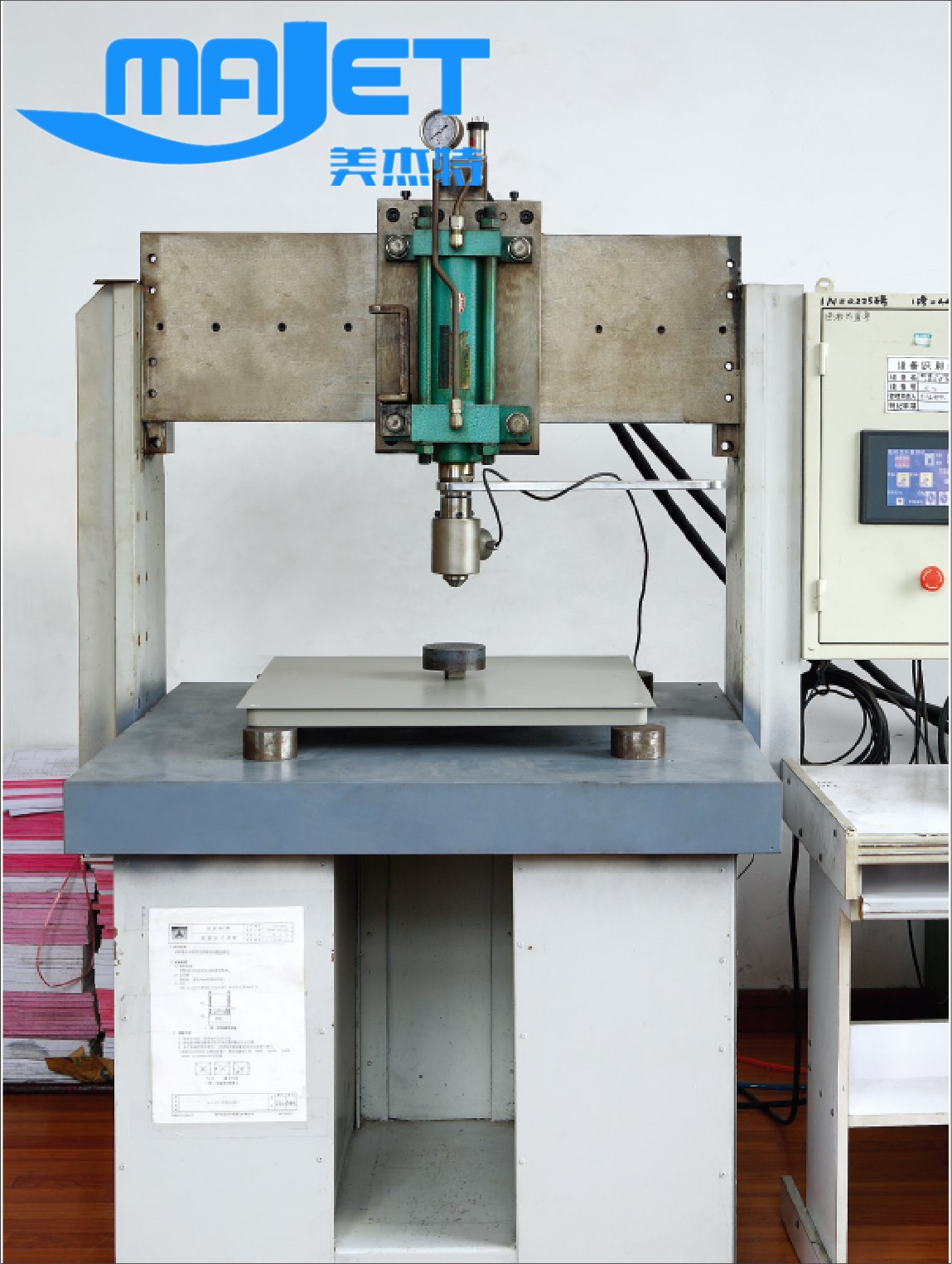

A typical concentrated-load test applies a specified force through a defined loading point or loading device and measures the resulting deformation and failure behavior.

The test may evaluate:

• Maximum load

• Deflection

• Permanent deformation

• Structural failure

• Panel cracking

• Core failure

• Edge failure

• Supporting system performance

The precise test method and loading device depend on the applicable standard and product specification.

For projects using standards such as EN 12825, the complete classification and test requirements should be checked rather than comparing a single advertised load number.

This is important because two products can both claim a similar "load capacity" while being tested under different conditions.

What Does a Raised Floor Load Rating Actually Mean?

A load rating should always be interpreted together with the test conditions.

For example, a specification might state:

Concentrated load: 2,000 N

This number alone does not tell you everything about the floor.

You should also ask:

• What test method was used?

• What loading area or indenter was used?

• What was the maximum deflection?

• Was permanent deformation measured?

• Was the test performed on the complete raised floor system?

• What pedestal configuration was used?

• Was the load applied at the center of the panel?

• Was the panel tested at the edge or corner?

• Does the rating apply to the panel only or the complete system?

For B2B projects, requesting the manufacturer's test report or technical datasheet is therefore much more useful than comparing marketing numbers alone.

How to Calculate Concentrated Load for Raised Floor Equipment

A simple first calculation is:

Load per support = Total equipment weight ÷ Number of supports

For example, a 1,200 kg server cabinet has four supports.

1,200 ÷ 4 = 300 kg per support

If the equipment has six supports:

1,200 ÷ 6 = 200 kg per support

However, this is only a preliminary calculation.

In real installations, the load may not be perfectly distributed between all supports.

For example, if one support carries a larger percentage of the load, the maximum actual point load could be significantly higher than the simple average.

For this reason, engineers should consider:

• Uneven load distribution

• Equipment geometry

• Support spacing

• Base dimensions

• Caster dimensions

• Dynamic loads

• Equipment movement

• Safety factors

• Panel location

• Pedestal arrangement

Practical Load Calculation Example

Consider a data center cabinet with the following characteristics:

• Total weight: 1,600 kg

• Number of supports: 4

• Floor panel size: 600 × 600 mm

• Support feet: relatively small contact areas

The theoretical average load per support is:

1,600 ÷ 4 = 400 kg per support

The raised floor therefore needs to be evaluated for at least the relevant concentrated loading condition around the cabinet supports.

Now consider the same 1,600 kg weight distributed over 16 m²:

1,600 ÷ 16 = 100 kg/m²

The two loading scenarios have the same total weight but very different effects on the raised floor.

This example demonstrates why total equipment weight alone is not sufficient for raised floor selection.

How Uniform Distributed Load Is Calculated

Uniform distributed load is generally calculated as:

UDL = Total distributed load ÷ Loaded floor area

For example:

• Total load = 5,000 kg

• Floor area = 50 m²

Therefore:

5,000 ÷ 50 = 100 kg/m²

The result is an average distributed load of 100 kg/m².

For a real project, however, the engineer should determine the actual load combination and applicable structural requirements rather than relying only on the average value.

Which Load Rating Is More Important?

There is no universal answer.

The more important loading condition depends on how the floor will actually be used.

For Data Centers

Concentrated load is usually a major consideration because server racks and cabinets transfer substantial weight through relatively small supports.

You should evaluate:

• Rack weight

• Rack dimensions

• Number of supports

• Caster or foot configuration

• Equipment density

• Panel load capacity

• Pedestal strength

• Stringer requirements

• Rolling loads

Uniform distributed load is still relevant because multiple racks and other equipment contribute to the overall floor loading.

For Offices

Uniform distributed load is often important because people, furniture, partitions, and general occupancy loads are spread over the floor.

However, concentrated loads from:

• Filing cabinets

• Furniture legs

• Heavy storage

• Partition systems

• Equipment

should also be considered.

For Industrial Applications

Both loading conditions can be critical.

Industrial environments may involve:

• Heavy machines

• Mobile equipment

• Pallet trucks

• Carts

• Tool cabinets

• Storage systems

• Vibration

In these applications, rolling load and dynamic load may be just as important as static concentrated load.

Concentrated Load, Rolling Load, and Impact Load Are Different

One important point is that a static concentrated load should not automatically be treated as equivalent to a moving load.

A stationary machine may apply a relatively stable concentrated load.

A caster or trolley introduces a rolling load.

A pallet truck moving across the floor can generate additional dynamic effects.

Dropping equipment onto a floor can generate an impact load.

Therefore, a project involving mobile equipment should not select a floor based only on its static concentrated load rating.

For heavy-duty applications, ask the manufacturer specifically about:

concentrated load + rolling load + impact/dynamic conditions.

How to Choose the Right Raised Floor Based on Load

The selection process should start with the actual application rather than the floor material.

Step 1: Identify the Total Load

Determine:

• Equipment weight

• Furniture weight

• Occupancy load

• Storage load

• Floor finish

• Other permanent loads

This provides the overall loading requirement.

Step 2: Identify How the Load Is Transferred

Ask:

• Is the load distributed?

• Is it concentrated?

• Is it supported by four feet?

• Are casters used?

• Are there narrow support rails?

• Will the equipment move?

This step is often more important than simply looking at total weight.

Step 3: Calculate the Maximum Point Load

For equipment with multiple supports:

Average point load = Equipment weight ÷ Number of supports

Then consider uneven load distribution and the appropriate engineering safety margin.

Step 4: Check Uniform Distributed Load

Calculate the expected average load per square meter and compare it with the manufacturer's tested rating and project requirements.

Step 5: Check Pedestal and Substructure Capacity

The raised floor is a complete system.

Its performance depends on:

Panel + pedestal + stringer/bracing + connections + substrate

A very strong panel does not automatically create a high-capacity raised floor if the supporting structure is inadequate.

Step 6: Check Deflection Requirements

Load capacity is not only about whether the floor fails.

Excessive deflection can cause:

• Uneven floor surfaces

• Equipment instability

• Damage to floor finishes

• Joint problems

• Poor walking comfort

• Problems with sensitive equipment

For data centers and technical rooms, controlling deflection can therefore be important even when the ultimate load capacity appears sufficient.

Which Raised Floor Construction Is Suitable for Heavy Concentrated Loads?

Different raised floor constructions offer different performance characteristics.

Steel Raised Floors

Steel-based raised floors are widely used in applications requiring high structural strength and durability.

They can be suitable for:

• Data centers

• Equipment rooms

• Control rooms

• Technical rooms

• Heavy-duty commercial applications

The actual capacity depends on panel construction, thickness, filling material, pedestal design, and system configuration.

Calcium Sulphate Raised Floors

Calcium sulphate panels provide good dimensional stability, fire performance, acoustic characteristics, and environmental properties.

They are commonly considered for:

• Offices

• Commercial buildings

• Data rooms

• Technical spaces

For high concentrated loads, the complete product specification should be checked carefully because panel composition and support configuration significantly affect performance.

Aluminum Raised Floors

Aluminum raised floors can offer:

• High strength-to-weight ratio

• Corrosion resistance

• Good durability

• Suitability for specialized technical environments

They are often considered where corrosion resistance, airflow, weight, or specialized performance requirements are important.

Woodcore Raised Floors

Woodcore panels are widely used in commercial and office environments because they offer a practical balance between structural performance, weight, cost, and installation requirements.

For heavy equipment, however, the manufacturer's concentrated-load and system test data should be checked carefully rather than selecting the panel based only on its nominal material.

A Simple Raised Floor Selection Table

Common Mistakes When Selecting Raised Floors

Mistake 1: Looking Only at Total Weight

A 1,000 kg machine is not enough information.

You need to know how the 1,000 kg reaches the floor.

Mistake 2: Comparing UDL With Concentrated Load Directly

For example, comparing "1,000 kg/m²" with "500 kg concentrated load" does not provide a meaningful direct comparison.

They represent different loading conditions.

Mistake 3: Ignoring the Pedestal System

The panel may have high strength, but the pedestal or connection system may become the limiting component.

Mistake 4: Ignoring Rolling Loads

A floor that supports a stationary cabinet may not necessarily be suitable for a cabinet being moved repeatedly on casters.

Mistake 5: Ignoring Deflection

A floor does not need to collapse to be unsuitable.

Excessive deflection can create operational and maintenance problems.

Mistake 6: Using Marketing Load Ratings Without Test Conditions

Always ask for the test method, loading condition, deflection criteria, and complete system configuration behind the stated load rating.

What Information Should You Give a Raised Floor Manufacturer?

When requesting a quotation for a project, provide as much load information as possible.

A useful technical inquiry should include:

• Project application

• Room dimensions

• Required finished floor height

• Panel dimensions

• Total equipment weight

• Maximum equipment weight

• Number of equipment supports

• Support/foot dimensions

• Caster dimensions

• Expected rolling loads

• Uniform distributed load

• Required floor finish

• Static or anti-static requirements

• Fire requirements

• Access requirements

• Applicable standards

For example:

Application: Data center
Panel: 600 × 600 mm
Maximum rack weight: 1,600 kg
Supports: 4
Average point load: 400 kg/support
Rolling equipment: Yes
Required finish: HPL
Floor height: 300 mm

This information allows a manufacturer to recommend a more appropriate panel and supporting system.

How MAJET Can Help With Raised Floor Load Selection

For projects requiring higher load capacity, MAJET provides raised access floor systems designed for different commercial, technical, and data center applications.

For heavy-duty data center projects, product selection can be based on factors such as:

• Concentrated load

• Uniform distributed load

• Rolling load

• Panel construction

• Pedestal capacity

• Stringer configuration

• Finished floor height

• Equipment weight

• Project standards

For example, MAJET heavy-duty raised floor systems such as FS1000, FS1500, and FS2000 can be considered for applications where higher load-bearing performance is required.

However, the correct specification should be determined from the actual project loading conditions rather than selecting a model based only on a product name or nominal load rating.

For B2B projects, buyers can provide the equipment weight, support configuration, floor height, and project requirements to the manufacturer for technical confirmation.

Frequently Asked Questions

Is concentrated load more important than uniform distributed load for raised floors?

Neither is universally more important. Concentrated load is particularly important for equipment supported by small feet or casters, while uniform distributed load is important when weight is spread across a larger floor area. The correct raised floor should satisfy the loading conditions that exist in the actual project.

What is the difference between concentrated load and uniform distributed load?

Concentrated load is applied over a relatively small area, such as a server rack foot or machine support. Uniform distributed load is spread over a larger area and is normally expressed as kg/m² or kN/m².

How do I calculate concentrated load on a raised floor?

A basic calculation is:

Concentrated load per support = Total equipment weight ÷ Number of supports

However, this is only an initial calculation. Uneven load distribution, dynamic loads, support dimensions, and safety factors should also be considered.

Is 1,000 kg/m² the same as a 1,000 kg concentrated load?

No. They represent different loading conditions. A 1,000 kg/m² rating describes a distributed loading condition, while a 1,000 kg concentrated load refers to a load applied to a defined small area.

What load rating is important for a data center raised floor?

Data centers typically require careful evaluation of concentrated load from server racks and cabinets, as well as uniform distributed load, rolling load, deflection, and the capacity of the complete pedestal and stringer system.

Do server racks create concentrated loads?

Yes. Server racks and cabinets commonly transfer their weight through several feet, casters, or other relatively small support areas. The actual point load depends on rack weight and support configuration.

Should I consider rolling load when selecting a raised floor?

Yes, if equipment, racks, carts, or other heavy objects will be moved across the floor. Rolling load can produce different stresses from a stationary concentrated load.

Does a stronger raised floor panel always mean a stronger floor system?

No. The complete system must be considered. Panel strength, pedestal capacity, stringers, bracing, connections, installation quality, and substrate conditions can all affect the performance of the finished raised floor.

Final Takeaway

Concentrated load and uniform distributed load describe two different ways that weight acts on a raised floor.

Concentrated load is especially important for server racks, equipment feet, machinery, cabinets, and other loads transferred through small contact areas.

Uniform distributed load is more relevant to people, furniture, storage, and other loads spread across a larger floor area.

For most professional raised floor projects, the correct selection should consider both:

Concentrated Load + Uniform Distributed Load + Rolling Load + Deflection + Supporting System Capacity

The best approach is not simply to choose the raised floor with the highest advertised load rating. Instead, match the tested performance of the complete raised floor system to the actual loading conditions of the project.

If you are selecting a raised floor for a data center, server room, equipment room, office, cleanroom, or industrial application, provide the equipment weight, number and size of supports, floor height, expected distributed load, and rolling requirements. A raised floor manufacturer can then help confirm the appropriate panel and pedestal configuration.
