Modern data centers rely on efficient airflow, organized cable management, and reliable cooling to maintain continuous operation. While much attention is given to raised access floors, perforated panels, and cooling units, one small component often has a surprisingly large impact on overall performance—the brush grommet.

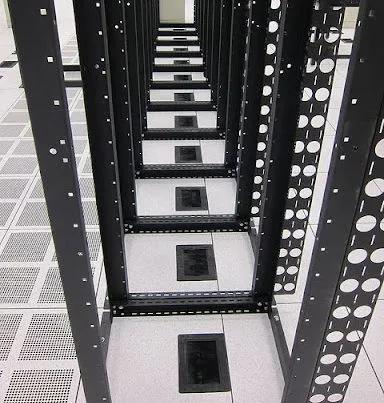

A brush grommet seals cable openings in raised floor panels, allowing power and data cables to pass through while minimizing the escape of conditioned air. By reducing bypass airflow, improving cooling efficiency, and keeping server rooms tidy, brush grommets have become an essential accessory in modern data center infrastructure.
In this guide, you'll learn what brush grommets are, why they matter, how to choose the right model, and how they can help reduce operating costs while improving data center performance.

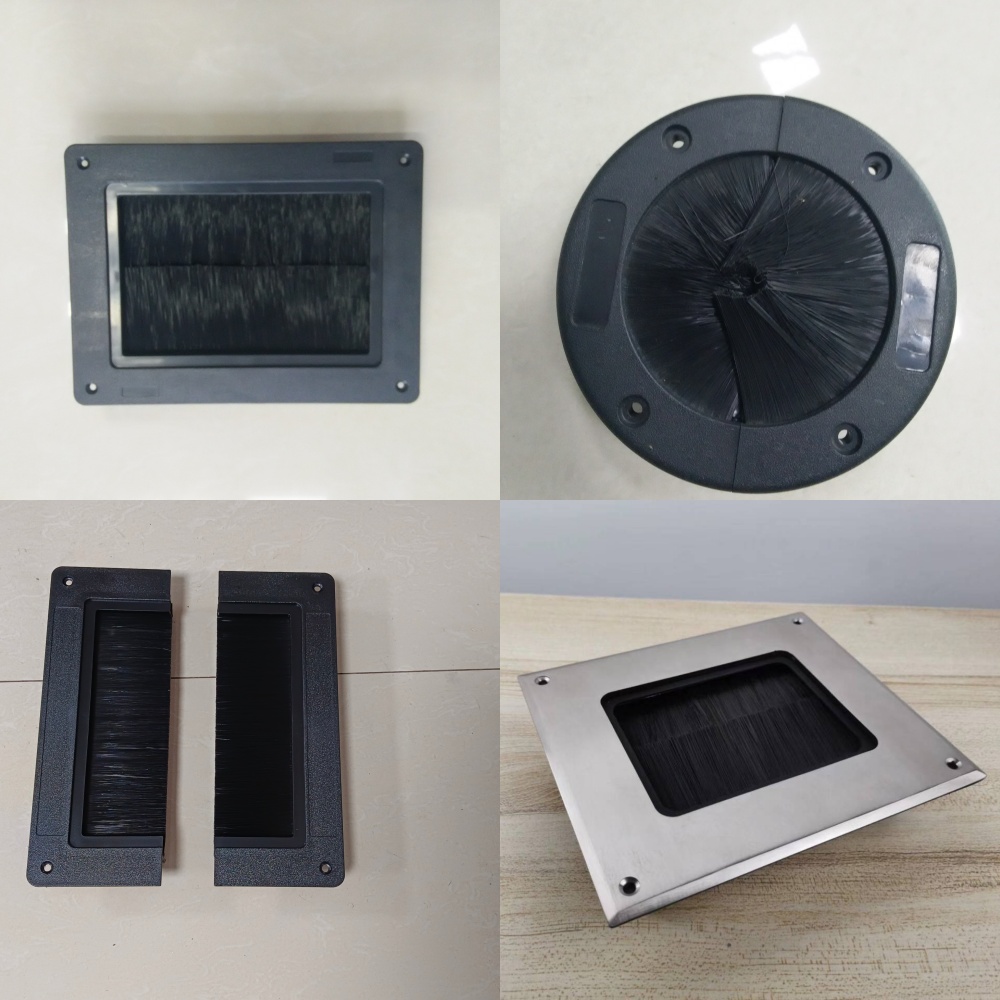

A brush grommet is a raised floor accessory installed into cutouts within access floor panels. It consists of a durable frame fitted with dense nylon brushes that create a flexible seal around cables.
Unlike an open cable cutout, a brush grommet allows cables to pass freely while preventing large volumes of cold air from escaping from the underfloor plenum.
Typical components include:
Aluminum or ABS frame
High-density nylon brush strips
Mounting hardware
Optional split-frame design for retrofit installations
Brush grommets are widely used in:
Server rooms
Telecommunications facilities
Network operation centers (NOCs)
Control rooms
Edge computing facilities
Many data centers invest heavily in cooling systems but overlook one of the biggest causes of cooling inefficiency—unsealed cable openings.
Raised floor systems distribute conditioned air beneath the floor before delivering it through perforated panels or grilles. Every unsealed cable opening becomes a path for valuable cold air to escape.
Brush grommets significantly reduce this unwanted airflow leakage.
When more cold air reaches server intakes instead of escaping through cable openings, cooling equipment operates more efficiently.
Benefits include:
More consistent rack inlet temperatures
Better airflow balance
Reduced hot spots
Improved cooling capacity
Cooling systems account for a significant portion of a data center's energy usage.
By minimizing bypass airflow, brush grommets help cooling systems work less aggressively, contributing to:
Lower fan speeds
Reduced CRAC/CRAH runtime
Improved Power Usage Effectiveness (PUE)
Lower electricity costs
The working principle is simple but highly effective.
A cable opening is cut into a raised floor panel.
The brush grommet is installed into the opening.
Power, fiber optic, and network cables pass through the dense nylon brushes.
The brushes flex around the cables, creating a tight seal.
Conditioned air remains beneath the raised floor until it is delivered through designated airflow panels.
This simple sealing mechanism dramatically improves airflow control without restricting cable movement or maintenance access.
Brush grommets prevent uncontrolled airflow leakage, ensuring conditioned air reaches critical equipment rather than escaping through cable penetrations.
Better airflow control means servers receive cooler air where it is needed most, improving overall cooling effectiveness.
Brush grommets keep cables neatly routed through designated openings, creating a more professional and manageable installation.
The brush seal helps reduce the movement of dust and debris between the underfloor plenum and the server room, contributing to a cleaner IT environment.
Flexible brush fibers allow technicians to add, remove, or reroute cables without dismantling the grommet or enlarging floor openings.
Reduced cooling losses translate directly into energy savings, making brush grommets one of the most cost-effective upgrades for raised floor systems.
Feature | Open Cable Cutout | Brush Grommet |
|---|---|---|
Air Leakage | High | Very Low |
Cooling Efficiency | Poor | Excellent |
Cable Protection | None | Good |
Dust Control | Poor | Good |
Cable Organization | Untidy | Organized |
Energy Saving | No | Yes |
Professional Appearance | Average | Excellent |
For most modern data centers, replacing open cable cutouts with brush grommets is a straightforward way to improve both operational efficiency and appearance.
Different applications require different brush grommet designs.
The most commonly used option for standard raised floor panels. Ideal for medium to large cable bundles.
Suitable for smaller cable groups where only a limited number of cables pass through the floor.
Designed for retrofit projects, allowing installation around existing cables without disconnecting equipment.
Engineered for high-density cable environments such as hyperscale data centers and large network rooms.
Selecting the right brush grommet depends on several factors.
Most data centers use 600 × 600 mm raised floor panels. Ensure the brush grommet dimensions match your panel design and cutout size.
Estimate both current and future cable capacity.
Small cable bundles
Medium-density installations
High-density network racks
Choosing a larger brush grommet today can simplify future expansion.
Facilities with:
High-density server racks
Cold aisle containment
Hot aisle containment
AI computing clusters
require tighter airflow control, making high-quality brush grommets especially important.
Look for:
High-density nylon brushes
Flame-retardant materials
Durable aluminum or ABS frames
Long service life
Anti-static compatibility
Installation is quick and requires only basic tools.
Measure and mark the installation location according to project drawings.
Use a raised floor cutting machine or appropriate cutting tools to create the required opening.
Smooth all cut edges to protect cables and ensure proper fit.
Secure the frame using the supplied fasteners or mounting clips.
Pass power and data cables through the brush opening.
Verify that the brushes fully surround the cables while allowing easy movement.
Brush grommets are suitable for a wide range of facilities, including:
Enterprise data centers
Cloud computing facilities
Server rooms
Telecommunications rooms
Financial data centers
Healthcare IT infrastructure
Industrial control rooms
Edge computing sites
Government data centers
Anywhere raised access flooring is used for cable routing and underfloor air distribution, brush grommets can improve performance.
Avoid these common installation errors:
Large openings allow excessive conditioned air to escape.
Packing too many cables into a single opening reduces sealing effectiveness and complicates maintenance.
Brush grommets should be part of an overall airflow management strategy that includes perforated panels, containment systems, and proper rack layout.
Loose mounting or improperly fitted brushes can compromise air sealing.
Selecting a brush grommet that is too small or too large may reduce performance and create unnecessary installation challenges.
Even minor airflow leaks can have a significant impact on cooling performance across a large facility.
Brush grommets help by:
Reducing bypass airflow
Improving underfloor air pressure
Directing conditioned air toward server inlets
Supporting more efficient hot aisle and cold aisle containment
Lowering cooling equipment workload
Improving overall PUE (Power Usage Effectiveness)
For operators seeking to optimize energy efficiency without major infrastructure upgrades, brush grommets offer an affordable and highly effective solution.
As a professional raised access floor manufacturer and accessories supplier, MAJET provides brush grommets designed for demanding data center environments.
Compatible with standard 600 × 600 mm raised floor systems
High-density nylon brushes for excellent air sealing
Durable aluminum frame construction
Easy installation for new projects and retrofits
OEM and ODM manufacturing services
Custom sizes and configurations available
Strict quality control and factory testing
Fast production and worldwide delivery
Whether you're building a new hyperscale data center or upgrading an existing server room, MAJET offers reliable brush grommet solutions to improve airflow management and support long-term operational efficiency.
Need help selecting the right brush grommet for your project? Contact the MAJET team today for expert technical advice, product recommendations, samples, and competitive factory-direct pricing.
A brush grommet seals cable openings in raised floor panels while allowing cables to pass through. It reduces air leakage, improves cooling efficiency, and keeps cable routing organized.
Yes. By reducing bypass airflow, brush grommets help direct conditioned air to server equipment, improving cooling performance and reducing energy consumption.
Yes. Split-frame and retrofit brush grommets can be installed without disconnecting existing cables, making them ideal for upgrading operational data centers.
The appropriate size depends on your raised floor panel dimensions, cable quantity, and anticipated future expansion. Selecting a slightly larger model can accommodate additional cables over time.
Most brush grommets are designed for standard raised access floor panels, including steel, calcium sulfate, and aluminum systems. Always verify the cutout dimensions and panel thickness before installation.
Common materials include aluminum or ABS frames combined with high-density nylon brushes. Many models also feature flame-retardant and anti-static properties for data center applications.
High-quality brush grommets typically require minimal maintenance and can last for many years. Replace them if the brush fibers become damaged or no longer provide an effective seal.
Yes. By minimizing conditioned air leakage and improving airflow management, brush grommets reduce the cooling load on HVAC systems, contributing to lower energy costs and improved operational efficiency.
Look for experienced raised access floor manufacturers that offer complete flooring accessories, technical support, customization options, and proven quality control. Choosing a supplier that provides both raised floor systems and accessories ensures better compatibility and project support.
