Views: 0 Author: Sunny Publish Time: 2026-08-17 Origin: Site
Electrical conductivity is an important consideration when selecting an aluminum raised access floor for data centers, server rooms, cleanrooms, electronic manufacturing facilities, laboratories, and other environments where electrostatic discharge can damage sensitive equipment.
An aluminum raised access floor naturally provides an excellent conductive metal structure, but the electrical performance of the complete flooring system depends on more than the aluminum panel itself. The surface finish, panel-to-pedestal connection, pedestal material, grounding system, installation method, and environmental conditions can all influence the final resistance measured at the installed floor surface.
For this reason, buyers should evaluate the complete raised floor system, rather than looking only at the conductivity of the aluminum panel.
This guide explains the differences between conductive, static dissipative, and antistatic flooring, identifies suitable applications for each type, and explains how electrical resistance should be evaluated and tested. It also provides practical guidance for buyers sourcing aluminum raised floors from manufacturers such as MAJET.
Before selecting an ESD raised floor, it is important to understand the terminology.
Conductive flooring is flooring designed to provide a relatively low electrical resistance path so that electrostatic charges can move away from the floor surface efficiently and be discharged through a properly designed grounding system.
Conductive flooring is generally used in applications where controlling static electricity is critical and where the flooring must provide a reliable path to ground.
For an aluminum raised access floor, the aluminum panel itself has very high electrical conductivity. However, this does not automatically mean that the entire installed floor system is classified as conductive.
The complete electrical path may include:
Floor surface → aluminum panel → pedestal → building grounding system
Every connection along this path matters.
If a coating, adhesive, gasket, insulating layer, or poor mechanical connection interrupts the electrical path, the measured resistance of the installed system may be substantially higher than the resistance of the bare aluminum material.
Static dissipative flooring is designed to control electrostatic charges by allowing them to dissipate gradually rather than allowing them to accumulate or discharge suddenly.
Compared with highly conductive flooring, dissipative flooring has higher electrical resistance. The higher resistance slows the movement of electrical charge and can reduce the risk of rapid electrostatic discharge.
This characteristic is particularly useful in environments containing sensitive electronic equipment.
Typical applications can include:
Data centers
Server rooms
Telecommunications rooms
Electronics manufacturing
Computer laboratories
Control rooms
Testing laboratories
Cleanrooms
The exact resistance range required should always be determined according to the applicable project specification and testing standard rather than relying solely on generic terminology.
The term antistatic flooring is commonly used in the flooring industry, but it can be misleading if it is treated as a precise electrical resistance classification.
In practical terms, antistatic flooring is intended to reduce the generation or accumulation of electrostatic charges.
However, "antistatic" does not necessarily tell a buyer exactly how conductive the floor is or whether it provides a suitable path to ground.
For technical procurement, it is therefore better to specify measurable electrical properties such as:
Surface resistance
Resistance to ground
Point-to-point resistance
System resistance
Grounding resistance
Electrical continuity
Rather than simply asking for an "antistatic floor."
The three terms describe related but different concepts.
Flooring Type | Main Function | Electrical Behavior | Typical Applications |
|---|---|---|---|
Conductive flooring | Quickly provides a path for charge to ground | Low resistance | Critical ESD environments, electronics manufacturing, specialized rooms |
Static dissipative flooring | Controls and gradually dissipates electrostatic charges | Moderate resistance | Data centers, server rooms, laboratories, electronics areas |
Antistatic flooring | Reduces static generation or accumulation | Not necessarily defined by one resistance range | Offices, computer rooms, general electronic environments |
The most important point for buyers is that antistatic does not automatically mean conductive.
A product advertised as "ESD flooring" should therefore be evaluated using actual test data.
The required electrical performance depends heavily on the application.
Data centers contain servers, network equipment, storage systems, power distribution equipment, and other sensitive electronics.
Electrostatic discharge can potentially damage electronic components, disrupt equipment operation, or create maintenance problems.
For these applications, buyers commonly consider:
Static dissipative or conductive floor surfaces
Reliable grounding
Electrical continuity between panels
Conductive pedestal connections
Controlled surface resistance
ESD-compatible floor coverings
Proper grounding of equipment and cabinets
An aluminum raised floor can be particularly attractive because aluminum is inherently conductive and can provide a continuous metallic structural system when properly designed and installed.
MAJET aluminum raised access floor systems can be engineered around the electrical requirements of data center environments, with attention to panel construction, surface treatment, pedestal connections, and grounding continuity.
Cleanrooms may have extremely strict requirements for contamination control, electrostatic control, and equipment protection.
Typical applications include:
Semiconductor manufacturing
Pharmaceutical production
Medical device manufacturing
Electronics manufacturing
Precision laboratories
In these environments, electrical performance cannot be considered separately from other requirements.
The flooring may need to satisfy requirements related to:
ESD control
Cleanability
Particle generation
Chemical resistance
Load capacity
Corrosion resistance
Surface finish
Grounding
For cleanroom projects, buyers should request a complete technical specification rather than selecting flooring based solely on the word "antistatic."
Electronics production environments are especially sensitive to electrostatic discharge.
A static charge generated by personnel, carts, packaging materials, tools, or equipment can potentially discharge into electronic components.
A properly designed conductive or dissipative flooring system can help provide controlled charge dissipation.
However, flooring is only one part of an ESD protection program. Personnel grounding, footwear, workstations, grounding points, humidity control, and equipment grounding may also be required.
Normal office environments may not require highly conductive flooring.
If the main objective is simply to reduce static shocks and protect ordinary electronic equipment, a dissipative or antistatic solution may be sufficient.
Specifying an extremely low-resistance conductive floor when the application does not require it may unnecessarily increase system cost and maintenance requirements.
The most important principle is simple:
Electrical conductivity should be evaluated through measurable electrical resistance, not by appearance or material name alone.
Aluminum is conductive, but the floor system may contain other materials that affect electrical resistance.
Surface resistance evaluates the resistance across the surface of the flooring material.
It can help determine whether electrostatic charges can move across the floor surface.
A surface resistance measurement is particularly relevant when the floor has a special ESD surface treatment, coating, laminate, vinyl finish, or other covering.
The measurement should be performed using the appropriate test method and calibrated equipment.
Resistance to ground measures the electrical resistance between the floor surface and a designated grounding point.
This is especially important for raised access floors because the floor is not simply a flat piece of material.
The electrical path may include multiple components:
Surface → panel → pedestal → structural connection → grounding point
Resistance-to-ground testing therefore provides useful information about the actual installed system.
Point-to-point resistance measures electrical resistance between two selected locations on the floor surface.
This can help evaluate electrical continuity across the flooring system.
For a raised floor installation, multiple measurements may be performed at different locations to identify potential discontinuities or poorly connected panels.
Before testing, the project should define what electrical property is required.
The specification should identify whether the requirement concerns:
Surface resistance
Point-to-point resistance
Resistance to ground
System resistance
Electrical continuity
The required resistance range should also be specified.
This is important because a test result such as "10⁶ ohms" has little meaning unless the buyer knows which measurement was performed and which acceptance range applies.
Electrical resistance should be measured according to the applicable project specification and recognized test method.
Depending on the project and flooring type, standards or test methods may include relevant ESD flooring and electrical resistance testing procedures.
The buyer should avoid asking only for a generic "conductivity test."
A better technical request is:
Please provide the test method, test conditions, test voltage, electrode type, measurement location, measured resistance, and acceptance criteria.
This makes the test result much easier to verify.
A suitable resistance meter or high-resistance electrical tester should be used.
The equipment should be:
Appropriate for the resistance range
Properly calibrated
Suitable for the applicable test method
Equipped with appropriate electrodes
Used under controlled conditions
For professional projects, the calibration status of the test equipment should also be documented.

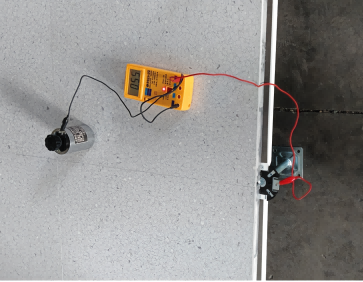

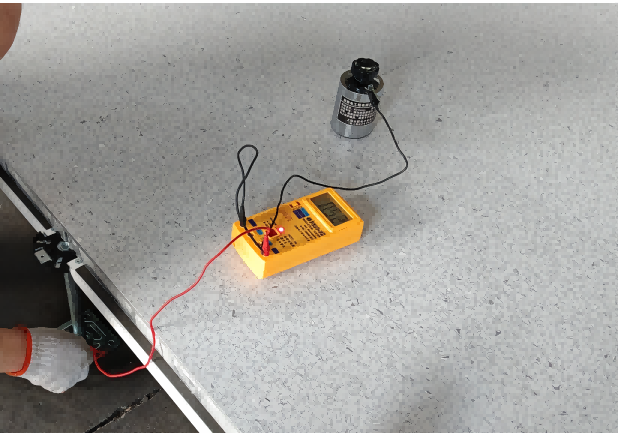

The electrodes are placed on the floor surface according to the selected test procedure.
The test may evaluate resistance between two surface points or between the surface and ground.
For raised access floors, the test should be performed at representative locations rather than relying on a single measurement.
A single successful measurement does not necessarily prove that the entire floor installation has consistent electrical performance.
For example, the following areas may be tested:
Center of panels
Panel joints
Different rows
Different rooms
Areas near grounding points
Areas far from grounding points
Panels connected to different pedestals
The number and distribution of test points should be determined by the project specification.
Electrical resistance can be affected by environmental conditions.
Important factors include:
Temperature
Relative humidity
Surface cleanliness
Dust
Moisture
Surface contamination
Footwear and contact conditions
For ESD-sensitive facilities, documenting environmental conditions during testing improves the reliability and traceability of the results.
One of the most common misunderstandings in raised floor procurement is:
"The panel is aluminum, so the floor must be conductive."
The first part is correct: aluminum itself is an excellent electrical conductor.
The second part is not necessarily correct.
A complete raised access floor may contain:
Aluminum panels
Surface coatings
Conductive or non-conductive finishes
Pedestals
Adhesives
Gaskets
Insulation layers
Stringers
Grounding cables
Other accessories
Any non-conductive component can affect the overall electrical path.
For this reason, MAJET recommends evaluating the electrical performance of the complete flooring system according to the customer's application and project requirements, rather than relying only on the conductivity of aluminum.
The surface finish has a direct influence on surface resistance.
Bare aluminum, conductive coatings, vinyl, laminate, carpet, and other finishes may have significantly different electrical characteristics.
The connection between the aluminum panel and pedestal is critical.
A mechanically secure connection does not automatically guarantee excellent electrical continuity.
The design should consider the contact area, materials, surface condition, and connection method.
A conductive floor needs a proper grounding path.
Without an appropriate grounding system, a highly conductive panel may simply carry electrical charge without providing the intended controlled discharge route.
Incorrect installation can create electrical discontinuities.
Examples include:
Excessive contamination between contact surfaces
Incorrect adhesives
Poor pedestal connections
Incorrect grounding connections
Non-conductive accessories installed in the electrical path
Therefore, electrical performance should ideally be verified after installation.
A professional test report should provide more than a simple statement such as "conductive."
When evaluating a supplier, buyers should look for the following information.
The report should identify:
Product name
Panel dimensions
Panel construction
Surface finish
Manufacturer
Batch or production information
The report should specify:
Test standard or method
Test equipment
Test voltage where applicable
Electrode specification
Test environment
Temperature
Relative humidity
Test locations
The report should clearly state:
Measured resistance
Measurement type
Number of test points
Minimum value
Maximum value
Average value where applicable
Acceptance criteria
For a raised floor system, the report should also clarify:
Grounding point
Grounding method
Electrical path
Panel-to-pedestal continuity
System grounding configuration
This information provides much more confidence than simply seeing the phrase "ESD compliant."
An important point for project engineers and buyers is that flooring is only one component of an ESD control system.
A properly designed facility may also require:
Personnel grounding
ESD footwear
Grounded workstations
Grounded equipment
ESD packaging
Humidity control
Grounding networks
Regular resistance testing
ESD management procedures
Therefore, the correct approach is not simply to purchase the "most conductive" floor.
Instead, the floor should provide the appropriate electrical resistance and controlled charge dissipation required by the application.
For international projects, MAJET focuses on combining aluminum raised floor construction with the electrical and structural requirements of the application.
Depending on project requirements, an aluminum raised access floor system can be evaluated according to:
Panel electrical characteristics
Surface resistance
Resistance to ground
Panel-to-pedestal continuity
Grounding arrangement
Load-bearing requirements
Surface finish
Environmental conditions
Installation requirements
Applicable testing standards
This system-based approach is particularly important for data centers, cleanrooms, electronics facilities, laboratories, and other ESD-sensitive environments.
Instead of asking only "Is this aluminum floor conductive?", buyers should ask:
"What is the measured electrical resistance of the complete floor system, what test method was used, and what grounding configuration is required?"
This question provides a much more technically meaningful basis for procurement.
Before placing an order, international buyers can ask the supplier:
What is the surface resistance?
What is the resistance to ground?
Has point-to-point resistance been tested?
Is the product conductive or static dissipative?
What test standard was used?
What is the required resistance range?
Is the aluminum panel electrically connected to the pedestal?
Is the pedestal conductive?
Is a grounding cable required?
How is electrical continuity maintained between panels?
Does the surface finish affect conductivity?
Can you provide a test report?
Is the test report for the same product configuration?
What equipment was used?
When was the equipment calibrated?
What were the temperature and humidity conditions?
How many samples were tested?
Is the floor suitable for a data center?
Is it suitable for a cleanroom?
Is it suitable for electronics manufacturing?
Can the electrical specification be customized?
Can the supplier provide technical documentation for project approval?
Yes, aluminum itself is highly electrically conductive. However, the electrical performance of a complete aluminum raised floor depends on the surface finish, connections, pedestals, grounding system, and installation conditions.
No. Conductive flooring generally provides a lower resistance path for electrical charge, while antistatic flooring is a broader term describing flooring intended to reduce static charge accumulation or generation.
Conductive flooring allows electrical charges to move through the floor relatively quickly because of its lower resistance. Static dissipative flooring has higher resistance and is designed to control and gradually dissipate electrostatic charges.
Common evaluation methods include surface resistance testing, point-to-point resistance testing, and resistance-to-ground testing. The exact test method and acceptance criteria should follow the applicable project specification or standard.
No. Aluminum is conductive, but the complete floor system must provide a suitable electrical path to ground. Surface coatings, insulating materials, pedestal connections, and grounding arrangements can significantly affect system performance.
Yes. Aluminum raised floors can be suitable for data centers because they can combine high structural performance, durability, corrosion resistance, airflow management, and electrical conductivity. The exact specification should be selected according to the data center's electrical, structural, and environmental requirements.
Buyers should request surface resistance, resistance to ground, test method, test conditions, test equipment, test results, grounding configuration, and relevant compliance documentation.
The electrical performance of an aluminum raised access floor should be evaluated scientifically rather than based on product terminology alone.
Conductive, static dissipative, and antistatic describe different approaches to controlling electrostatic charge. The appropriate solution depends on the facility, equipment sensitivity, grounding design, environmental conditions, and applicable technical standards.
For aluminum raised floors, the most important principle is that the conductivity of the aluminum material does not automatically determine the electrical performance of the installed flooring system.
A professional evaluation should consider the complete path from the floor surface to the grounding point and verify the result through appropriate resistance testing.
For data centers, cleanrooms, electronics manufacturing facilities, laboratories, and other ESD-sensitive environments, buyers should request measurable electrical performance data rather than relying only on descriptions such as "ESD," "antistatic," or "conductive."
With appropriate material selection, system design, grounding, installation, and testing, an aluminum raised access floor can provide a reliable foundation for modern high-performance facilities.
MAJET provides aluminum raised access floor solutions for data centers, cleanrooms, server rooms, electronics facilities, and other demanding applications. If you are selecting an aluminum raised floor and need specific requirements for surface resistance, resistance to ground, ESD performance, grounding, load capacity, or project compliance, contact MAJET with your project specifications. Our technical team can help determine the appropriate floor construction and testing requirements for your application.
