How To Install Aluminum Grilles with Other Raised Floors？

Aluminum grilles panel can be installed together with raised floor systems, but compatibility should be confirmed before production. The main issues are differences in panel thickness, pedestal head dimensions, stringer positions, and support requirements. MAJET recommends confirming the solid raised floor specifications and support system in advance and, for critical projects, testing a customized aluminum grille sample with the actual raised floor system before mass production.

Why Aluminum Grille Compatibility Matters in Raised Floor Systems

Aluminum grilles floor  are commonly used in raised floor systems where additional airflow is required. They can be installed in data centers, computer rooms, server rooms, clean rooms, equipment rooms, and other facilities where cooling air needs to pass through the raised floor.

However, installing an aluminum grille next to or within another type of raised floor is not simply a matter of replacing one standard panel with another.

A raised floor system is a complete structural system consisting of panels, pedestals, stringers or cross supports, gaskets, and other accessories. When an aluminum grille panel is installed together with steel raised floor, steel cement raised floor, calcium sulphate raised floor, woodcore raised floor, or another solid raised floor panel, the two systems need to work together mechanically and geometrically.

Several problems can occur if compatibility is not checked before production:

• The aluminum grille and solid floor panel may have different thicknesses.

• The finished surfaces may not be at the same height.

• The pedestal heads may have different dimensions.

• A stringer may interfere with the aluminum grille.

• The aluminum grille may not have sufficient support underneath.

• The opening size may not match the grille dimensions.

• The grille may move, rock, or sit higher or lower than adjacent panels.

For this reason, aluminum grille compatibility should be treated as a complete raised floor system issue rather than an individual product issue.

MAJET works with different raised floor configurations and understands that aluminum grilles access floor need to be considered together with the surrounding raised floor panels and supporting structure.

Can Aluminum Grilles Be Installed with Other Raised Floor Panels?

Yes. Aluminum grilles can be integrated into many types of raised floor systems, provided that their dimensions, thickness, support structure, and installation method are compatible.

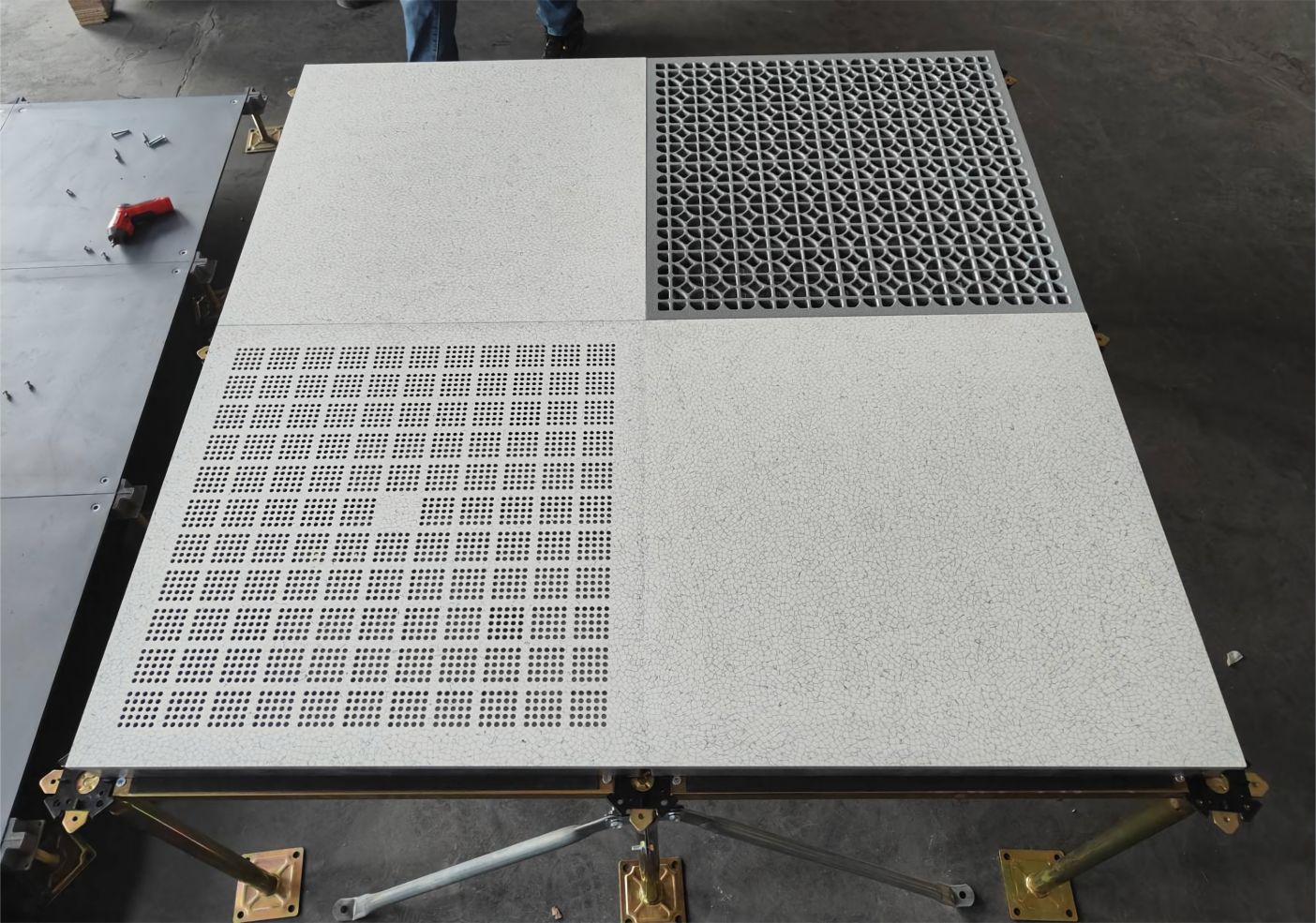

A typical installation may contain a combination of:

• Aluminum airflow grilles

• Solid steel raised floor panels

• Steel cement filled panels

• Calcium sulphate raised floor panels

• Woodcore raised floor panels

• Anti-static raised floor panels

• Perforated raised floor panels

• Ventilation panels

• Access floor panels with different finishes

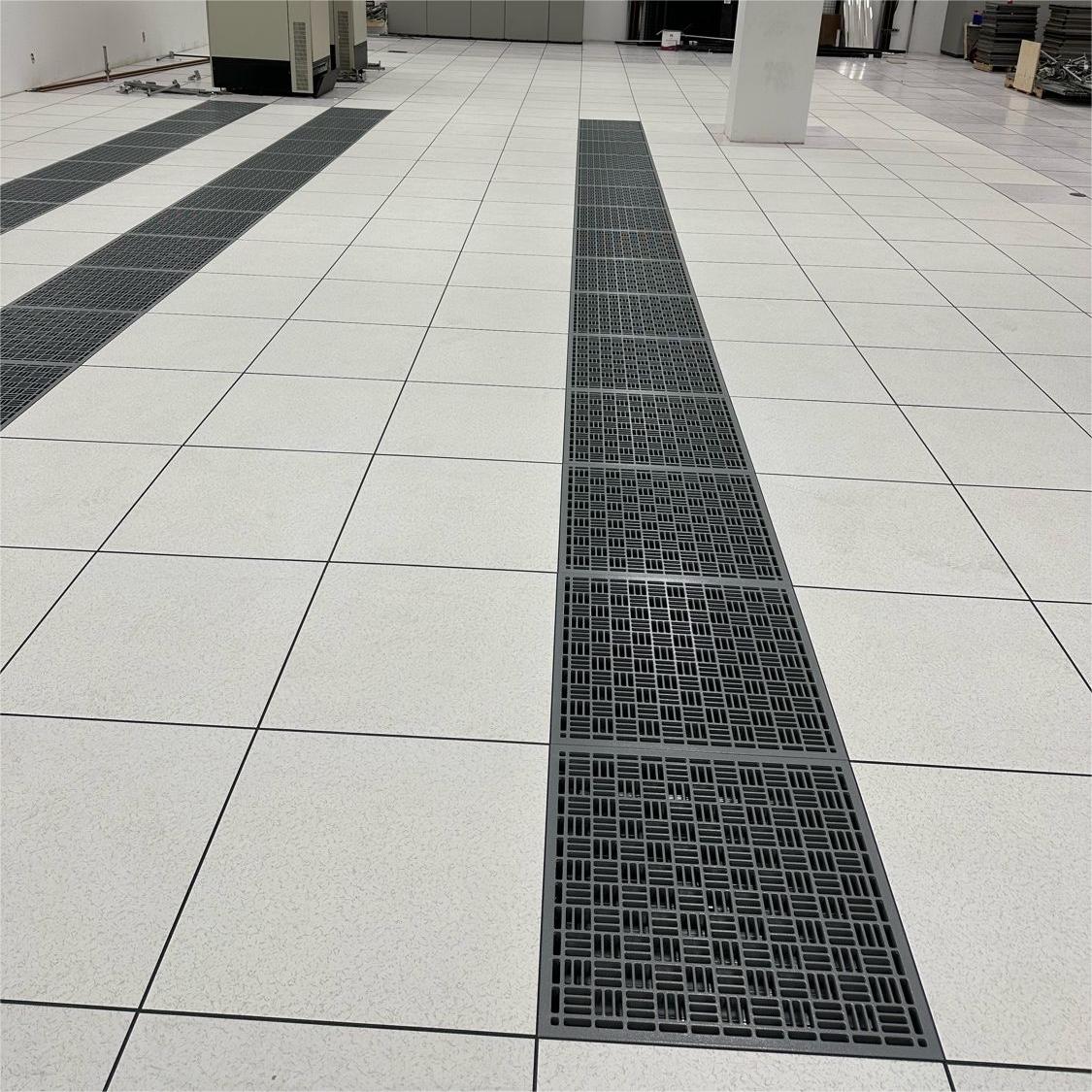

In a data center, for example, solid raised floor panels may be installed in most areas while aluminum grilles are positioned near cooling equipment or airflow zones.

The important question is therefore not simply:

"Can the aluminum grille fit into the raised floor?"

The more important question is:

"Can the aluminum grille work correctly with the existing panel, pedestal, and support system?"

This distinction is important because the visible dimensions of two floor panels may look similar while their actual support structures are completely different.

The First Compatibility Issue: Different Raised Floor Panel Thicknesses

One of the most common problems is the difference between the thickness of the aluminum grille and the thickness of the surrounding solid raised floor panel.

For example, suppose a project uses a solid raised floor panel with one specific overall thickness while the aluminum grille has a different structural thickness.

Even if both panels have the same nominal size, such as 600 × 600 mm, their top surfaces may not align.

Why Panel Thickness Affects Floor Levelness

The finished raised floor surface needs to form a continuous plane.

If one panel is thicker than another, several conditions are possible:

Condition 1: Aluminum grille is higher

The grille may protrude above the surrounding floor.

This can create:

• A trip hazard

• Problems with trolley movement

• Difficulty moving equipment

• Uneven appearance

• Potential damage to the grille edges

Condition 2: Aluminum grille is lower

The grille may form a depression relative to the surrounding panels.

This can also affect:

• Equipment transportation

• Cleaning

• Accessibility

• Wheel movement

• Overall floor appearance

Condition 3: Different thickness but adjustable support

In some systems, the difference can potentially be compensated by adjusting the supporting structure.

However, pedestal adjustment should not automatically be considered the solution.

The pedestal adjustment range is limited, and the adjustment affects the overall floor elevation rather than simply changing the thickness of one individual panel.

Therefore, the best approach is to determine the actual construction thicknesses before production.

What Information Should Be Confirmed?

When purchasing aluminum grilles for integration with another raised floor, the buyer should provide:

• Raised floor panel size

• Overall panel thickness

• Finished floor height

• Panel construction

• Panel edge detail

• Pedestal head dimensions

• Stringer dimensions

• Stringer location

• Pedestal spacing

• Support method

• Required aluminum grille size

• Required airflow area

• Installation drawings, if available

This information allows MAJET to evaluate the grille together with the existing raised floor system instead of treating it as an independent product.

The Second Compatibility Issue: Pedestal Head Dimensions

Another important issue is the pedestal head.

Many buyers focus on the panel dimensions but overlook the fact that the pedestal head is part of the panel support system.

Different raised floor manufacturers may use different pedestal head designs.

A pedestal may have:

• Different head width

• Different head length

• Different head thickness

• Different gasket configuration

• Different screw positions

• Different corner support geometry

• Different stringer connection methods

As a result, an aluminum grille designed for one support system may not automatically fit another manufacturer's pedestal system.

Why Pedestal Head Compatibility Matters

A raised floor panel normally rests on the pedestal head, either directly or through a gasket.

An aluminum grille may have its own structural frame or supporting edge.

If the grille frame does not match the pedestal head, the grille may not be properly supported.

This can result in:

• Unstable installation

• Rocking movement

• Uneven edges

• Excessive vibration

• Noise during walking

• Localized stress

• Difficult installation

For this reason, the pedestal head should be treated as a critical interface dimension.

Check the Pedestal Before Ordering Aluminum Grilles

Before placing an order, buyers should ideally provide a drawing or photograph of the existing pedestal head.

The supplier should understand:

1. The head shape

2. The head dimensions

3. The location of the supporting surfaces

4. The gasket position

5. The stringer connection

6. The relationship between the pedestal and panel edges

MAJET can use this information to determine whether the aluminum grille needs a standard support configuration or a customized edge/support design.

The Third Compatibility Issue: Stringers May Block the Aluminum Grille

Stringers are another component that is frequently overlooked.

A raised floor stringer connects pedestals and provides additional structural stability. Depending on the raised floor system, the stringer may be positioned directly below the panel edges.

This can create a problem when an aluminum grille needs to occupy the same area.

How Stringers Can Interfere with Aluminum Grilles

Imagine that an aluminum grille is designed to provide airflow across the entire 600 × 600 mm panel area.

However, a structural stringer may run below part of the grille.

The stringer can reduce the effective airflow opening.

In some cases, the grille frame may also physically interfere with the stringer.

This means that the grille may not sit correctly on the support system.

Potential problems include:

• The grille frame contacting the stringer

• Insufficient clearance

• Reduced airflow

• Difficulty removing the grille

• Incorrect panel positioning

• Interference during installation

Airflow Performance Is Also Affected

For data center applications, the purpose of an aluminum grille is usually related to airflow management.

Therefore, simply installing a grille is not enough.

The actual open area available for air movement depends on the grille design and the surrounding raised floor structure.

If a stringer blocks part of the airflow path, the effective airflow area may be lower than expected.

For projects involving CRAC units, CRAH units, underfloor air distribution, or other precision cooling systems, the complete floor configuration should therefore be reviewed.

Confirm the Solid Raised Floor Information Before Ordering Aluminum Grilles

One of the most practical recommendations for buyers is to communicate with the aluminum grille supplier before finalizing production.

The supplier should not only receive the aluminum grille dimensions.

The surrounding solid floor information is equally important.

Minimum Information to Provide to the Supplier

For a more accurate compatibility evaluation, MAJET recommends providing the following information.

1. Solid Raised Floor Panel

Provide:

• Panel type

• Panel dimensions

• Overall thickness

• Finished surface

• Edge construction

• Panel weight, if available

• Load requirement

• Manufacturer or model, if known

2. Pedestal System

Provide:

• Pedestal height

• Pedestal head dimensions

• Head shape

• Gasket type

• Pedestal material

• Pedestal spacing

3. Stringer System

Provide:

• Stringer dimensions

• Stringer height

• Stringer width

• Stringer position

• Connection method

• Whether stringers are required under the grille

4. Project Installation Requirements

Provide:

• Finished floor height

• Aluminum grille dimensions

• Quantity

• Grille location

• Required airflow

• Adjacent panel type

• Equipment location

• Installation drawing

The more complete the information, the easier it is for the supplier to identify potential installation problems before production.

Why a Customized Sample Is the Best Way to Verify Compatibility

Drawings and dimensions are important, but for complex raised floor systems, a physical sample installation is often the most reliable verification method.

This is particularly important when the aluminum grille needs to be installed with another manufacturer's raised floor system.

Recommended Sample Testing Process

A practical process can be divided into several steps.

Step 1: Send the Existing Floor Information

The buyer provides the supplier with:

• Solid panel sample or drawing

• Pedestal sample or drawing

• Stringer information

• Panel thickness

• Finished floor height

• Required grille dimensions

Step 2: MAJET Reviews the Interface

The aluminum grille design can then be checked against:

• Panel thickness

• Support points

• Pedestal head

• Stringer position

• Grille frame

• Finished surface level

Step 3: Produce a Customized Sample

Instead of immediately producing hundreds or thousands of aluminum grilles, the buyer can request a customized sample.

The sample should represent the actual installation condition as closely as possible.

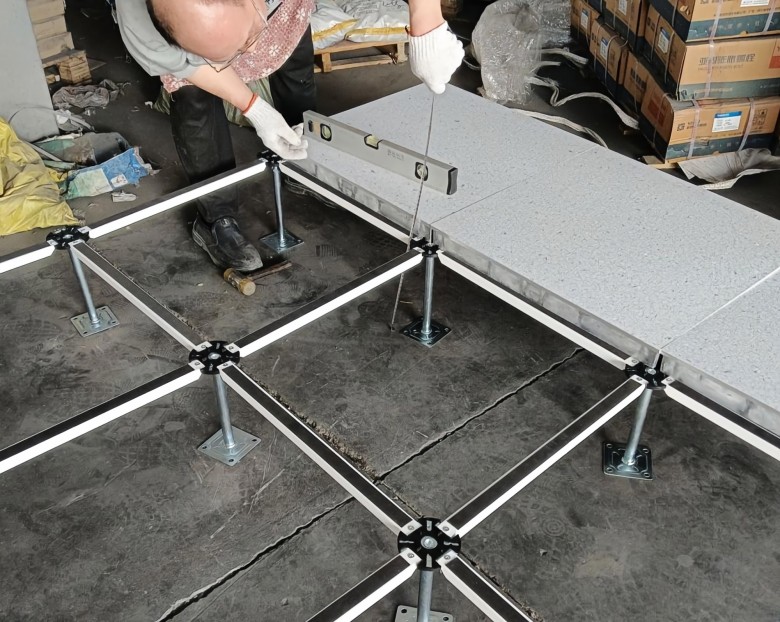

Step 4: Install the Sample with the Real Raised Floor

The sample should be installed together with the actual or representative solid floor panel, pedestal, and stringer.

Check:

• Does the grille fit?

• Is the top surface level?

• Does it rock?

• Does it move?

• Is the support sufficient?

• Does the stringer interfere?

• Can the grille be removed?

• Is the gap acceptable?

• Does the grille appearance match the surrounding floor?

Step 5: Confirm Before Mass Production

Only after the sample installation has been confirmed should the final production drawing be approved.

This process can significantly reduce the risk of discovering compatibility problems after mass production.

Why Sample Testing Is Especially Important for Large Data Center Projects

For a small project, modifying several panels may be relatively manageable.

For a large data center or industrial project, however, the cost of correcting an installation problem after production can be much higher.

Imagine that several hundred aluminum grilles have already been manufactured and shipped to the project site.

If the installation team discovers that the pedestal head is incompatible or that the grille is not level with the surrounding panels, possible consequences include:

• Rework

• Replacement

• Additional transportation

• Installation delays

• Labor costs

• Project schedule disruption

A relatively small sample-testing cost can therefore help identify a much larger potential problem.

This is why MAJET recommends "sample first, mass production second" for projects where the aluminum grille must integrate with a non-standard or existing raised floor system.

Standard Aluminum Grille vs. Customized Aluminum Grille

Not every project requires a fully customized aluminum grille.

For a standard raised floor system with known dimensions and compatible support components, a standard aluminum grille may be sufficient.

However, customization may be necessary when:

• The surrounding floor panel has a special thickness.

• The pedestal head is non-standard.

• The stringer layout is unusual.

• The grille must match a specific finished floor height.

• The opening dimensions are different from standard sizes.

• The project uses another manufacturer's raised floor system.

• The grille needs a special edge frame.

• The project has specific airflow requirements.

What Can Be Customized?

Depending on the project, aluminum grilles can potentially be customized in areas such as:

• Overall dimensions

• Panel thickness

• Frame design

• Supporting structure

• Surface finish

• Grille opening pattern

• Edge details

• Support arrangement

• Installation configuration

The exact customization should be determined based on the complete raised floor system.

Common Mistakes When Combining Aluminum Grilles with Raised Floors

Mistake 1 — Checking Only the Panel Size

Two panels can both be 600 × 600 mm but still be incompatible.

Why?

Because panel size is only one dimension. Thickness, edge construction, pedestal head, and support structure also matter.

Mistake 2 — Assuming Pedestals Can Solve Every Level Difference

Pedestal adjustment has limits.

If the difference comes from panel construction rather than overall floor elevation, simply adjusting the pedestal may not provide the correct solution.

Mistake 3 — Ignoring the Stringer

A stringer that works perfectly with the solid floor panel may interfere with an aluminum grille.

The stringer layout should therefore be checked before production.

Mistake 4 — Ordering in Bulk Without a Sample

This is one of the most avoidable risks.

If the aluminum grille is being integrated into an existing raised floor system, a sample installation can reveal problems that are difficult to identify from photographs alone.

Mistake 5 — Providing Only the Aluminum Grille Dimensions

The supplier needs to understand the surrounding floor system.

Providing only "600 × 600 mm aluminum grille" may not be enough to determine the correct support configuration.

MAJET's Recommended Workflow for Aluminum Grille Integration

For buyers who need aluminum grilles installed together with other raised floor systems, MAJET recommends the following workflow.

Step 1 — Confirm the Project Application

First identify the application:

• Data center

• Server room

• Computer room

• Clean room

• Industrial control room

• Equipment room

• Commercial facility

The application helps determine the required airflow and structural considerations.

Step 2 — Confirm the Existing Raised Floor

Provide the type and technical information of the solid raised floor.

Step 3 — Confirm the Support System

Provide pedestal and stringer drawings or samples.

Step 4 — Check Floor Level and Interface Dimensions

The supplier should compare the aluminum grille with the surrounding panel thickness and support system.

Step 5 — Make a Sample

For non-standard applications, MAJET recommends producing a sample for physical testing.

Step 6 — Approve the Installation

The buyer, contractor, or project engineer should confirm the sample installation before mass production.

Step 7 — Start Mass Production

After the dimensions and installation details have been confirmed, the final aluminum grille production can proceed.

What Should Buyers Ask an Aluminum Grille Supplier?

Before requesting a quotation, buyers can ask several important questions:

Can the aluminum grille be installed with our existing raised floor?

What panel thickness information do you need?

Can your grille work with our existing pedestal heads?

Will the stringer interfere with the grille?

Can you customize the grille support structure?

Can you make a sample before mass production?

Can you check our drawings before production?

These questions help move the discussion from a simple product quotation toward a complete installation solution.

MAJET encourages buyers to provide drawings, photographs, samples, or technical specifications whenever possible. This allows the engineering and sales teams to understand the actual project conditions and recommend an appropriate configuration.

Final Checklist Before Ordering Aluminum Grilles

Before confirming an aluminum grille order, check the following:

If all these items have been confirmed, the risk of installation problems can be significantly reduced.

Conclusion: Design the Aluminum Grille as Part of the Complete Raised Floor System

Installing aluminum grilles together with other raised floor panels is technically feasible, but compatibility should be considered before production.

The three most important issues are panel thickness, support-system compatibility, and stringer interference.

A difference in panel thickness can create an uneven finished surface. An incompatible pedestal head can prevent the grille from sitting correctly. A stringer in the wrong position can interfere with the grille frame or reduce the effective airflow area.

For this reason, buyers should provide the aluminum grille supplier with detailed information about the existing solid raised floor, including panel thickness, dimensions, pedestal head, stringer system, finished floor height, and installation drawings.

For projects with non-standard configurations, a customized physical sample is one of the most effective ways to verify compatibility before mass production.

MAJET can work with buyers to review these interface requirements and develop aluminum grille solutions according to the actual raised floor system. Instead of treating the aluminum grille as an isolated product, MAJET focuses on how the grille works together with the complete raised floor installation.

If you are planning to install aluminum grilles with an existing steel, calcium sulphate, woodcore, or other raised floor system, send MAJET your panel specifications, pedestal details, stringer drawings, and project requirements. A sample-based compatibility check can help confirm the solution before full-scale production.
