Airflow grate panels, also known as perforated raised floor panels, are specialized components used in data center infrastructure to facilitate efficient cooling and airflow management. These panels feature a pattern of perforations or grates that allow conditioned air to flow from the underfloor plenum to the equipment racks and servers housed above the raised floor.
airflow grate panels serve as essential components in data center cooling systems, allowing for the efficient distribution of conditioned air to equipment racks and servers. Their perforated design and strategic placement help optimize airflow management, minimize bypass airflow, and ensure consistent cooling throughout the facility, ultimately contributing to the reliability and performance of the data center infrastructure.
- Standard Perforated Panels:
Standard perforated panels feature a uniform pattern of small perforations across the surface, allowing for even distribution of airflow. These panels are versatile and suitable for general cooling needs in data centers.
- Directional Perforated Panels:
Directional perforated panels have perforations arranged in specific patterns to direct airflow in desired directions. They are ideal for optimizing cooling efficiency and airflow management in targeted areas of the data center.
- Steel Airflow Grate Panels:
Steel panels are robust and durable, making them suitable for heavy-duty applications in data centers with high equipment density. They offer excellent load-bearing capacity and resistance to wear and tear.
- Aluminum Airflow Grate Panels:
Aluminum panels are lightweight yet sturdy, providing a balance between strength and weight. They are corrosion-resistant and suitable for data center environments where weight restrictions are a concern.
- Adjustable Louver Panels:
Louver panels feature adjustable slats or louvers that can be opened or closed to control the amount of airflow passing through. These panels offer flexibility in airflow management and are ideal for environments with varying cooling requirements.
- Variable Perforation Panels:
Variable perforation panels allow for adjustable airflow rates by incorporating panels with sections of varying perforation densities. Data center operators can customize airflow distribution according to specific equipment cooling needs.
The functioning of airflow grate panels is integral to the overall cooling strategy of a data center. Here's how they work:

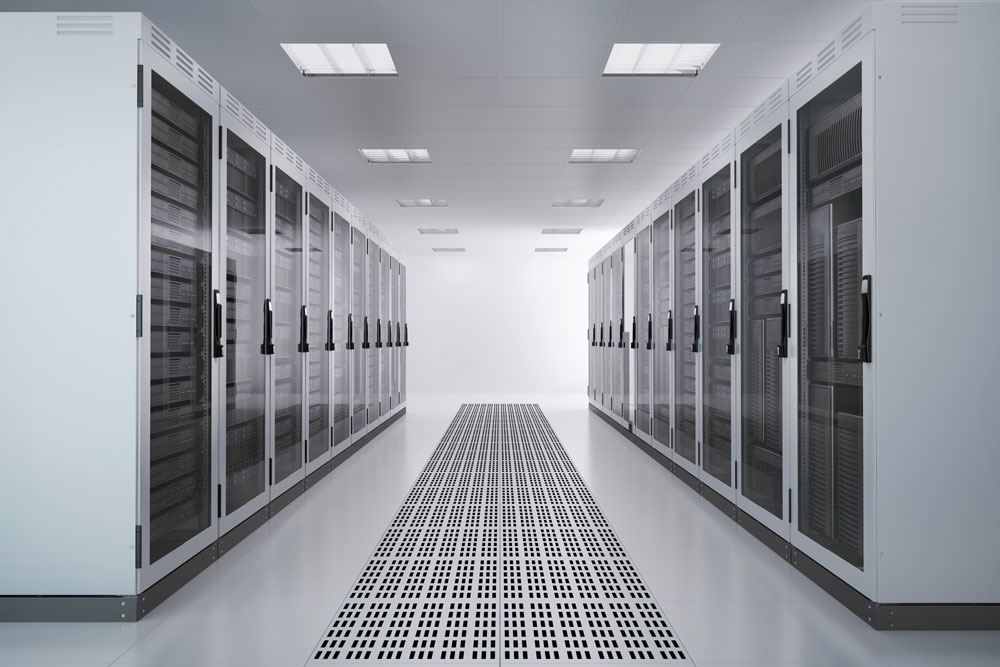

1. Airflow Distribution: Data centers typically utilize a raised floor system with an underfloor plenum for distributing conditioned air. Airflow grate panels are strategically placed within the raised floor grid to cover the plenum openings. As cool air is supplied into the plenum, the perforations or grates in the panels allow the air to pass through, effectively distributing it across the data center floor.
2. Even Air Distribution: The perforated design of airflow grate panels ensures that conditioned air is evenly distributed throughout the data center space. This helps prevent the formation of hot spots and ensures uniform cooling across equipment racks and servers, regardless of their location within the facility.
3. Airflow Management: By controlling the flow of air from the underfloor plenum to the equipment above, airflow grate panels assist in managing airflow patterns within the data center. Proper airflow management is essential for maximizing cooling efficiency and ensuring optimal operating conditions for sensitive electronic equipment.
4. Bypass Air Reduction: Airflow grate panels play a crucial role in minimizing bypass airflow, which occurs when conditioned air does not effectively reach equipment and instead escapes directly back to the cooling units without cooling any devices. The perforations in the panels help direct airflow towards equipment racks, reducing bypass airflow and improving cooling effectiveness.
5. Integration with Cooling Systems:Airflow grate panels work in conjunction with precision air conditioning units or other cooling systems to maintain the desired temperature and humidity levels within the data center. By facilitating the efficient distribution of conditioned air, these panels enhance the overall performance and effectiveness of cooling infrastructure.
selecting the appropriate airflow grate panels is crucial for optimizing cooling efficiency and maintaining optimal operational conditions for critical equipment. Let’s see key factors to consider when choosing airflow grate panels for your data center.
Before selecting airflow grate panels, it's essential to assess the cooling requirements of your data center. Consider factors such as server density, heat load, and airflow patterns to determine the optimal cooling strategy.
Choose airflow grate panels with perforation patterns and airflow capacity that align with the cooling demands of your data center. Panels with higher perforation rates can facilitate greater airflow, helping to maintain consistent cooling across equipment racks.
Hot spots can jeopardize the performance and reliability of critical equipment. Select airflow grate panels that support efficient airflow distribution to prevent hot spots and ensure uniform cooling throughout the data center.
Evaluate the load-bearing capacity of airflow grate panels to ensure they can support the weight of equipment racks and servers without compromising structural integrity. Consider factors such as static and dynamic loads when making your selection.
Verify that the selected airflow grate panels are compatible with the weight of equipment deployed in your data center. Choose panels with sufficient load capacity to accommodate both current and future equipment configurations.
Invest in airflow grate panels that are durable and resistant to wear and tear. Consider factors such as material quality, corrosion resistance, and maintenance requirements to ensure long-term performance and reliability.
Ensure that the chosen airflow grate panels are compatible with the existing raised floor system in your data center. Verify dimensions, alignment, and mounting mechanisms to facilitate seamless integration and installation.
Choose airflow grate panels that integrate seamlessly with other data center infrastructure components, such as cable management systems and air containment solutions. Compatibility and interoperability are essential for maximizing operational efficiency and effectiveness.
Anticipate future growth and expansion when selecting airflow grate panels for your data center. Choose panels that offer scalability and flexibility to accommodate evolving cooling needs and infrastructure upgrades over time.
Regular cleaning of airflow grate panels is essential to remove dust, debris, and other contaminants that can obstruct airflow and compromise cooling efficiency.
Establish a regular cleaning schedule based on the operating environment of the data center. High-traffic areas or environments prone to dust accumulation may require more frequent cleaning.
Use mild cleaning agents and non-abrasive tools to gently clean airflow grate panels. Avoid using harsh chemicals or abrasive materials that could damage the panel surface or perforations.
Regular inspections help identify any signs of wear and tear, damage, or blockages that may affect the performance of airflow grate panels.
Inspect panels for signs of corrosion, bending, or perforation blockage. Look for loose or damaged components that may require repair or replacement.
Address any identified damage promptly to prevent further deterioration and maintain optimal airflow performance. Repair or replace damaged panels as needed to ensure continued functionality.
Obstructions such as dust buildup, debris, or foreign objects can obstruct airflow through the perforations in airflow grate panels.
Blocked perforations can restrict airflow, leading to inadequate cooling and potential equipment overheating. Addressing obstructions promptly is crucial to prevent performance issues.
Use caution when clearing obstructions to avoid damaging the panels or surrounding equipment. Use appropriate tools and techniques to safely remove debris and restore airflow.
Regularly inspect perforations for any signs of blockage or restriction. Ensure that airflow can pass freely through the perforations to maintain optimal cooling efficiency.
Monitor perforations for signs of damage, such as bending, warping, or corrosion. Damaged perforations should be repaired or replaced to prevent airflow disruption.
If airflow grate panels are significantly damaged or compromised, consider repairing or replacing them to restore optimal performance. Work with a qualified technician to ensure proper installation and functionality.
Implement measures to control dust and debris accumulation in the data center environment, such as regular cleaning and air filtration systems. Minimizing airborne contaminants helps preserve the effectiveness of airflow grate panels.
Maintain appropriate humidity levels within the data center to prevent moisture-related damage to airflow grate panels and surrounding infrastructure. Use dehumidification systems as needed to control humidity levels effectively.
Take precautions to prevent water damage to airflow grate panels, such as installing moisture barriers and addressing leaks or spills promptly. Water infiltration can lead to corrosion, rust, and degradation of panel materials, compromising performance and longevity.
