MAJET
Steel
ADU-AC2000 Fan
600x600mm
FFH300mm,FFH500mm,FFH600mm,FFH800mm,FFH1000mm,FFH1500mm,FFH2000mm
Office,Data center,Cleanroom Environments,Educational Institutions,Computer room
SGS,CISCA,EN12825,ISO9001
CHINA
Wooden Pallet
| Quantity: | |
|---|---|
Product Description

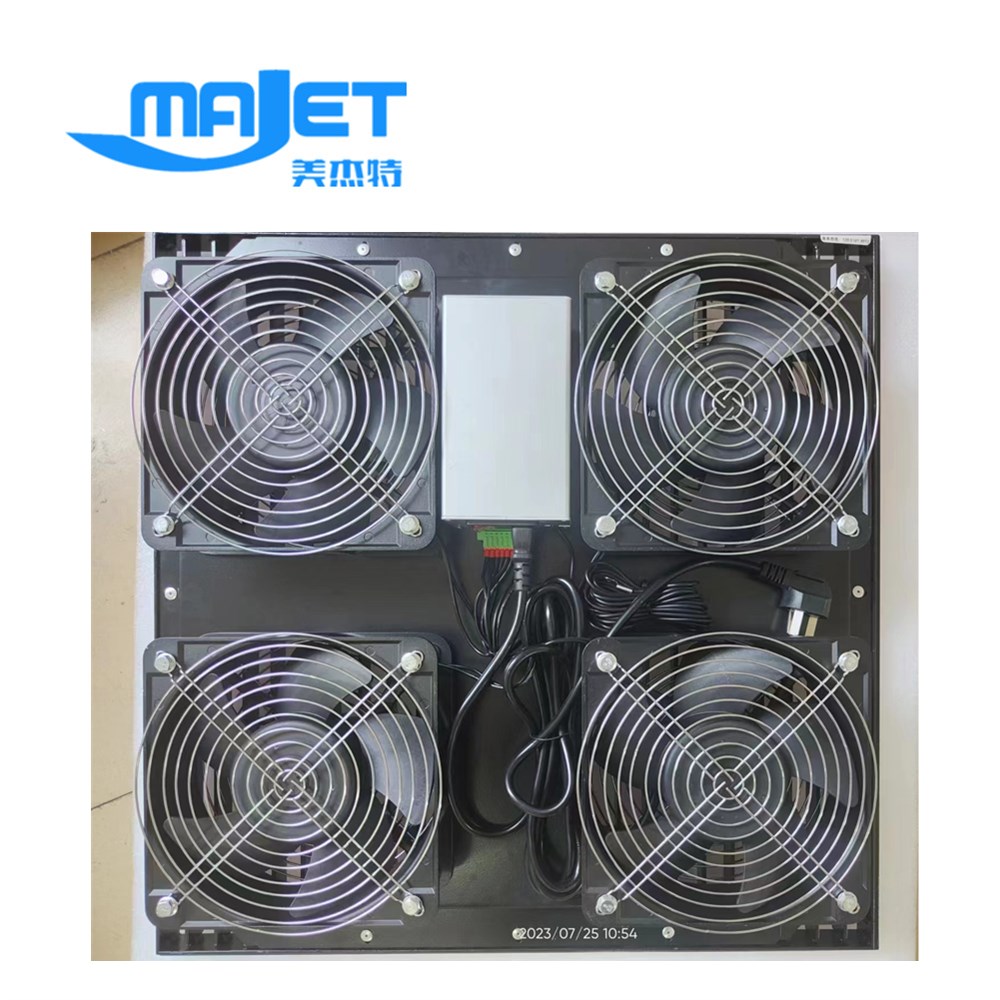

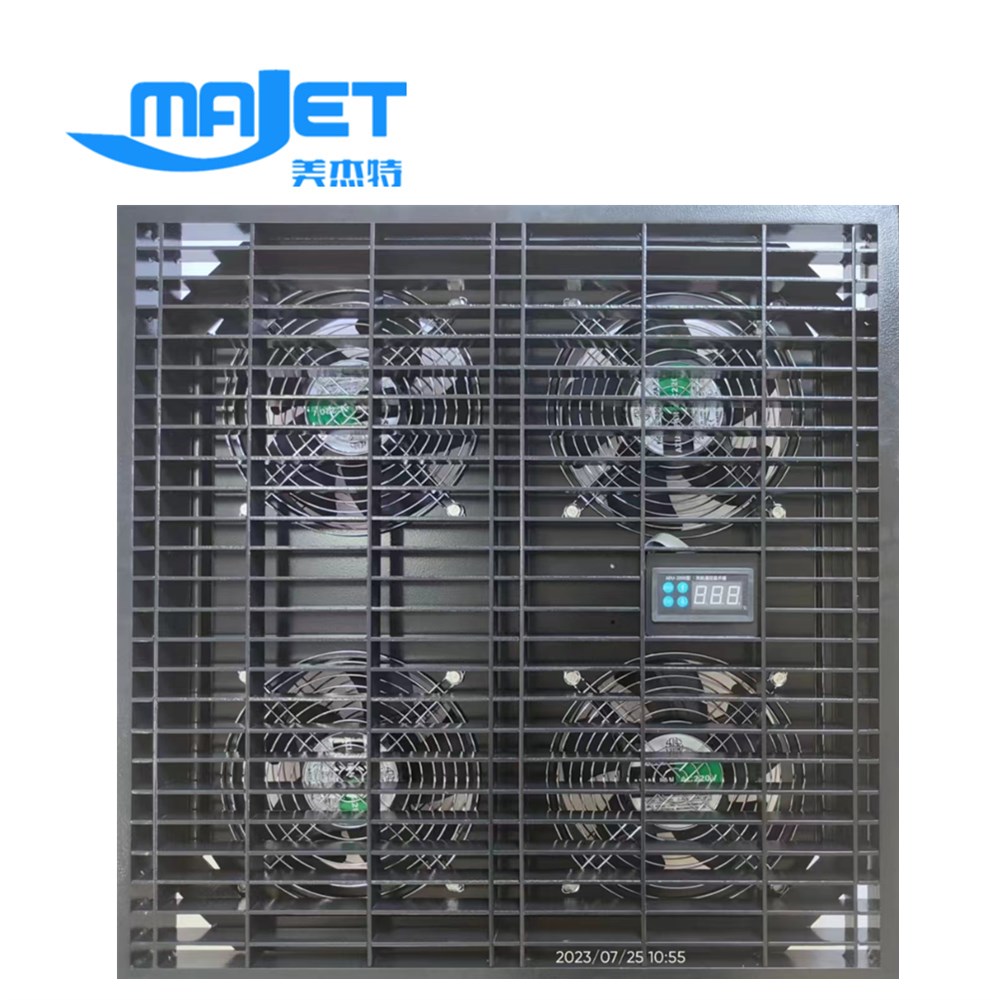

Raised floor temperature control AC Four-Fan Unit is designed to provide a blast of cooling through an individual directional airflow panel. The fan system multiple control options to automatically turn on when conditions require additional cooling . This powerful solution is ideal for solving the toughest hot spots in a data center.
Matching raised floor size:600*600*30~50mm;Min floor finish height 300mm
Material:Steel
Loading capacity:1000kg/m2
Air supply angle:vertical
Air volume:2000m³/h
Fan:AC Axial fan;4units
Temperature Control System:The fan runs automatically after the operating temperature is set by the temperature control system
Temperature control module:1Set
Temperature Sensor:5meter;1piece
Power supply:220v , 50hz
Electric current:2A;0.5A*4
-Zero maintenance
-Installation can be carried out by IT staff
-Multiple control options for both models available
-VN - client sensor network·High Precision, Quick Response Temperature Measurement
-User programmable set point
-Viewable Peak Temp for walkthrough check of each rack
-Infinitely variable fan speed from 0-100% for precise airflow control
-Easily installs into either 24" or 60cm raised floor systems
In modern office design, raised floors contribute to a clean and organized appearance while accommodating the complex wiring systems necessary for today's technology-driven workplaces.
Data centers rely on raised floors to manage the extensive cabling required for servers and networking equipment. The improved airflow also helps in maintaining optimal temperatures for electronic components.
Industries with stringent cleanliness requirements, such as pharmaceuticals and biotechnology, utilize raised floors to create controlled environments free from dust and contaminants.
Schools and universities leverage the flexibility of raised floors to accommodate evolving technologies in classrooms and laboratories.
| Performance | Steel cement raised floor panel | Steel hollow raised floor panel | Woodcore raised floor panel | Calcium sulphate raised floor panel | Aluminum raised floor panel | |
|---|---|---|---|---|---|---|
| Ultimate load | A | B | C | D | E | |
| Overload protection | A | B | C | D | E | |
| Fire rating | A | B | E | A | E | |
| Panel size | B | B | B | B | A | |
| Panel weight (bare finish) | C | A | A | E | A | |
| Bare panel sound insulation | C | C | B | A | E | |
| Walking feeling | A | B | A | A | B | |
| Recycled content | B | B | D | A | E | |
| Support for Green building certificate | B | B | D | A | E | |
| Cost efficiency | A | D | D | B | E | |
| Cutting ease and cost | B | A | A | E | C | |
| Application | Office | A | B | A | A | E |
| Data center | A | B | D | B | B | |
| Education | A | D | A | B | E | |
| Casino | A | E | D | A | B | |
| Industrial cleanroom | B | E | E | E | A | |
| Library | A | C | B | A | E |
Comparison of Different Raised Access Floor Panel.pdfMAJET raised floor is a leading manufacturer and exporter in China, supplying raised floor system, data center products, underfloor air conditioning and underfloor wiring. We have over 60,000 square meters plant and 200 workers and over 35 years experience in industry.
MAJET RAISED FLOOR CALTALOGUE2023.pdf
In order to get better use results and extend the service life of the raised floor, correct daily cleaning and maintenance are important.
Provided by the raised floor manufacturer and follow them. Floors made of different materials may have different maintenance methods.
Placing floor mats at the door of the room can effectively reduce dust and debris from being brought into the room, reducing the frequency of cleaning of the raised floor.
If possible, you can use protective tools such as shoe covers to reduce dust and debris and reduce the scratching of the soles on the floor. Especially helpful for the maintenance of PVC veneer.
Please do not place particularly heavy furniture or equipment directly on the raised floor. You can use a load-bearing base to distribute the weight, or use other means of proper load distribution.
During use, the raised floor needs to be cleaned regularly depending on the use environment. You can use a soft-bristled brush or vacuum cleaner to remove dust and debris from the surface to reduce particles from repeatedly scratching the floor.
When necessary, the floor needs to be deep cleaned to remove stubborn stains. Be careful not to use harsh chemicals or abrasive cleaners as they can cause damage to the floor. It is recommended to use professional floor cleaners.
When the floor uses an anti-static finish, its anti-static performance needs to be tested regularly.
If the raised floor is used in an area prone to leaks or spills, please check regularly for leaks. Water can cause damage to the raised floor and supporting structures, so leaks need to be resolved promptly.
Regularly check the situation of your raised floor. If there is damage, such as loose tiles, damaged edges or corrosion of accessories, it needs to be repaired in time. If it cannot be repaired, please replace the bad parts.
A: 100pieces each type
A:1100-1500pieces,depending on the raised floor type.
A: 30days after receiving the prepayment.
A:packed in wooden pallet,covered with plastic film.
A:T/T,L/C,Western Union.
