When selecting a raised access floor system, many buyers focus on the load capacity listed in the product datasheet. However, a common question arises:
Should you pay more attention to concentrated load or distributed load?
The answer depends on your application. For data centers, server rooms, control rooms, offices, and industrial facilities, understanding the difference between these two load ratings is essential to avoid floor failure, reduce maintenance costs, and ensure long-term safety.
This guide explains everything you need to know about concentrated loading and distributed loading, how they are tested, and which specification matters most for your project.
Neither concentrated load nor distributed load is universally more important.
Concentrated Load is critical when heavy equipment or point loads are placed on the floor.
Distributed Load is important when weight is spread evenly across a large area.
For most raised floor applications—especially data centers, server rooms, telecommunications facilities, laboratories, and control rooms—concentrated load is generally the more critical specification, because servers, cabinets, UPS systems, and equipment racks transfer their weight through relatively small contact points.
However, both ratings should always be considered together during floor selection.
A concentrated load (also called a point load) is the force applied over a very small area of a raised floor panel.
Instead of the weight being spread evenly, it is focused on a limited contact point.
Typical examples include:
Server racks
UPS systems
Battery cabinets
Cooling units
Storage cabinets
Laboratory equipment
Medical equipment
Manufacturing machinery
In these situations, thousands of kilograms may actually rest on only four leveling feet.
Imagine a server cabinet weighing 1,000 kg.
It has four adjustable feet.
Each foot carries approximately:
250 kg
The pressure applied beneath each foot is much higher than if the entire cabinet weight were spread across the whole floor panel.
This is why concentrated load becomes the governing design factor.
Distributed load (also called uniformly distributed load) refers to weight that is spread evenly across the entire surface of a raised floor panel.
Examples include:
Office furniture
Employees walking
Light storage
Carpet tiles
Ceiling materials during installation
Temporary construction loads
Instead of one small pressure point, the entire panel shares the load.
A storage room contains hundreds of archive boxes spread across the floor.
Although the total weight may be large, each square meter carries similar weight.
This represents a distributed load.
Comparison | Concentrated Load | Distributed Load |
|---|---|---|
Load Area | Small point | Entire panel |
Pressure | Very High | Relatively Low |
Common Applications | Data centers, UPS, equipment | Offices, libraries, archives |
Testing | Point load test | Uniform load test |
Risk | Panel bending, permanent deformation | Overall structural capacity |
Importance | High for equipment rooms | High for storage areas |
AI servers, GPU clusters, battery cabinets, and high-density racks continue to become heavier.
Many cabinets now exceed:
1,500 kg
2,000 kg
3,000 kg
Yet all this weight may rest on only four small leveling feet.
Therefore, concentrated loading becomes the limiting factor.
Raised floor failures rarely occur because people walk across the floor.
They usually occur because:
Equipment feet punch into panels
Pedestal systems deform
Stringers bend
Panels permanently deflect
These failures are caused by excessive concentrated loading.
Real-world installations are different from laboratory testing.
Equipment may be installed:
Near panel edges
Across panel joints
Close to pedestals
Adjacent to cable openings
These situations create even greater localized stress.
Many facilities add:
New server racks
Additional UPS systems
Battery cabinets
Cooling equipment
Selecting a raised floor based only on today's load may result in insufficient capacity in the future.
Designing with higher concentrated load ratings provides greater flexibility.
Although concentrated load is often the primary concern, distributed load cannot be ignored.
It becomes more important in environments such as:
Thousands of books create continuous loading.
Stored materials cover large floor areas.
Archive cabinets may fill an entire room.
Continuous production equipment distributes weight across multiple panels.
Large furniture layouts produce relatively even loading.

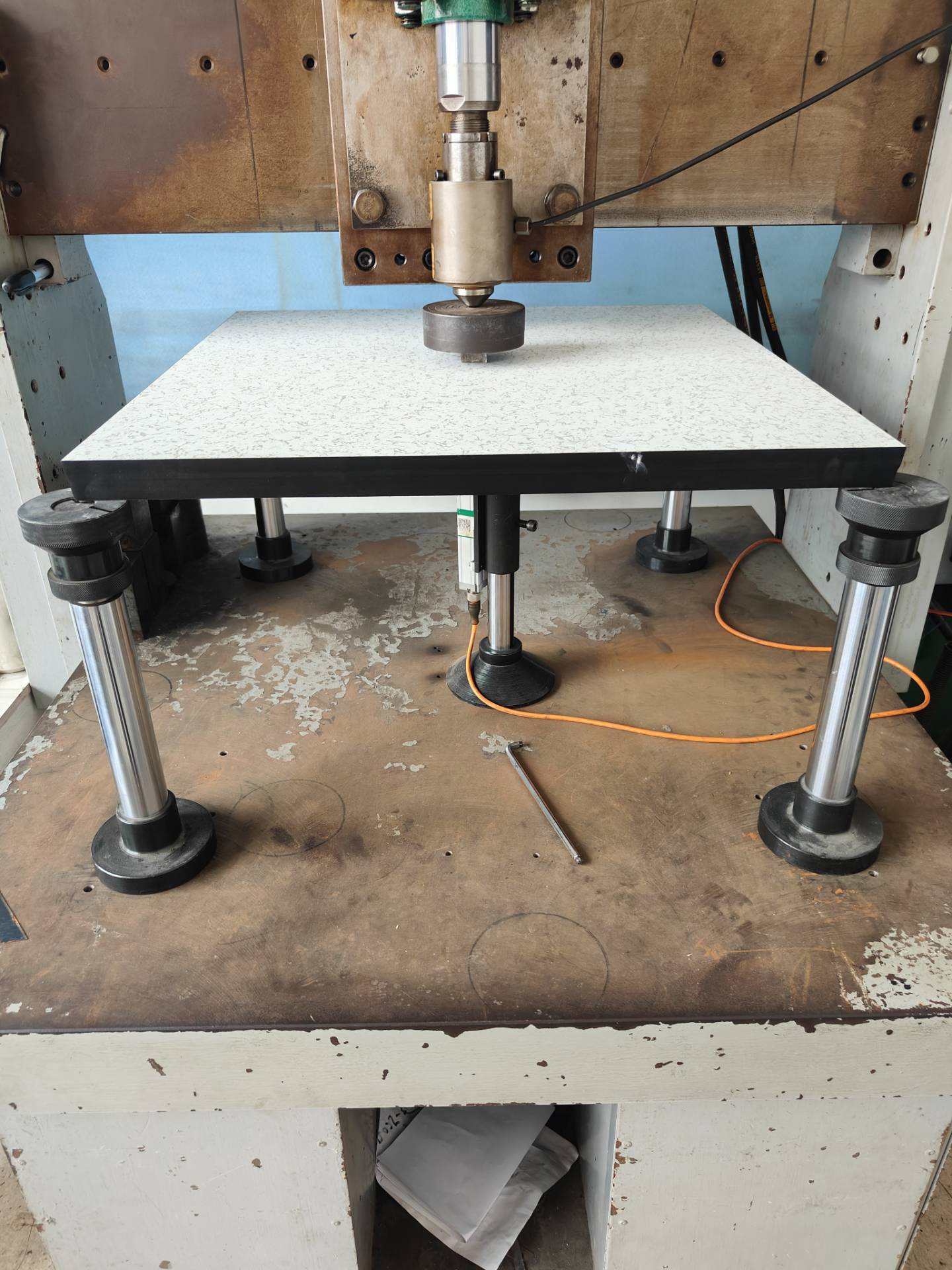

Professional manufacturers typically test raised floor systems according to recognized industry standards.
Common test items include:
Concentrated load
Ultimate load
Rolling load
Impact load
Uniform distributed load
Panel deflection
Safety factor
A complete engineering evaluation should consider all of these values rather than relying on a single specification.
Many buyers only compare load ratings.
However, panel deflection is equally important.
Two floor systems may both support:
1,250 kg concentrated load
But one panel may deflect:
1 mm
while another deflects:
3 mm
Lower deflection generally indicates:
Better walking comfort
Improved equipment stability
Longer service life
Reduced panel movement
Lower maintenance costs
Application | Concentrated Load Priority | Distributed Load Priority |
|---|---|---|
Data Centers | ★★★★★ | ★★★☆☆ |
Server Rooms | ★★★★★ | ★★★☆☆ |
Telecommunications | ★★★★★ | ★★★☆☆ |
Control Rooms | ★★★★☆ | ★★★☆☆ |
Cleanrooms | ★★★★☆ | ★★★★☆ |
Laboratories | ★★★★☆ | ★★★★☆ |
Office Buildings | ★★★☆☆ | ★★★★☆ |
Libraries | ★★★☆☆ | ★★★★★ |
Warehouses | ★★★☆☆ | ★★★★★ |
Some buyers compare only the largest load number.
Instead, evaluate:
Concentrated load
Uniform load
Deflection
Safety factor
Rolling load
Pedestal strength
Stringer capacity
The entire floor system—not just the panel—determines performance.
Today's equipment may be replaced with heavier models in the coming years.
Choosing a higher load class now can reduce future renovation costs.
Even if the panel has excellent load capacity, weak pedestals or stringers can become the failure point.
Always verify that the complete raised floor system has been tested together.
Before selecting a raised floor, ask the following questions:
Determine the maximum equipment weight.
Fewer support feet create higher concentrated loads.
Rolling loads become important if equipment is relocated often.
Plan for future expansion.
Ensure the floor system has been tested to applicable industry standards and provides documented performance data.
Load calculations involve more than simply comparing numbers on a brochure.
An experienced raised floor manufacturer can help evaluate:
Equipment footprint
Rack layout
Pedestal spacing
Airflow requirements
Cable routing
Future expansion
Safety margins
Professional engineering support helps ensure that the selected floor system matches the actual operating conditions, reducing the risk of under-specifying or over-specifying the installation.
Choosing a reliable supplier is just as important as selecting the correct load class.
MAJET provides:
Steel raised floor systems
Calcium sulfate raised floors
Aluminum raised floors
Heavy-duty data center flooring
Customized pedestal systems
Factory quality inspections
International project experience
Technical selection support
OEM & ODM manufacturing
Fast global delivery
Whether your project is a hyperscale data center, cleanroom, office building, or industrial facility, our engineering team can recommend the appropriate floor system based on your equipment loads and project requirements.
For most data centers, server rooms, and equipment-intensive facilities, concentrated load is generally the more important specification because heavy equipment transfers weight through small contact points. However, distributed load remains important for applications where weight is spread evenly across the floor.
Data centers typically prioritize concentrated load, along with rolling load, deflection, and overall system strength, because server racks, UPS systems, and cooling equipment create high point loads.
Not necessarily. A good raised floor should also offer low deflection, reliable pedestal performance, high rolling-load resistance, and consistent manufacturing quality. Selecting the right system depends on the application's overall requirements.
You should determine:
Total equipment weight
Number of support feet
Contact area of each foot
Safety factor
Future equipment upgrades
A qualified raised floor manufacturer can assist with these calculations.
Yes. MAJET's engineering team can review your project specifications—including equipment loads, application environment, airflow needs, and future expansion plans—and recommend a raised floor system that meets your performance and safety requirements.
When comparing concentrated load vs distributed load, there is no one-size-fits-all answer. The right choice depends on how the floor will be used. For most data centers, server rooms, and mission-critical facilities, concentrated load deserves the closest attention because heavy equipment applies force through small contact areas. In contrast, offices, libraries, and storage spaces often place greater emphasis on distributed load.
The best approach is to evaluate the complete raised floor system—including panels, pedestals, stringers, rolling load performance, deflection, and documented testing results. Working with an experienced manufacturer ensures your floor is designed not only for today's operational needs but also for future expansion, delivering long-term safety, reliability, and cost efficiency.
